FLUKE HIGH VOLTAGE PROBE | 80K-6

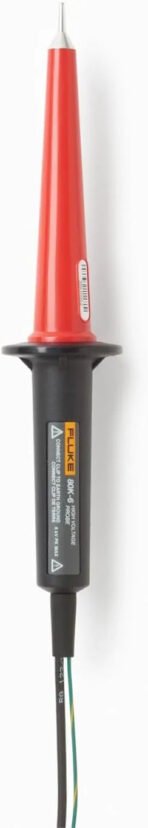

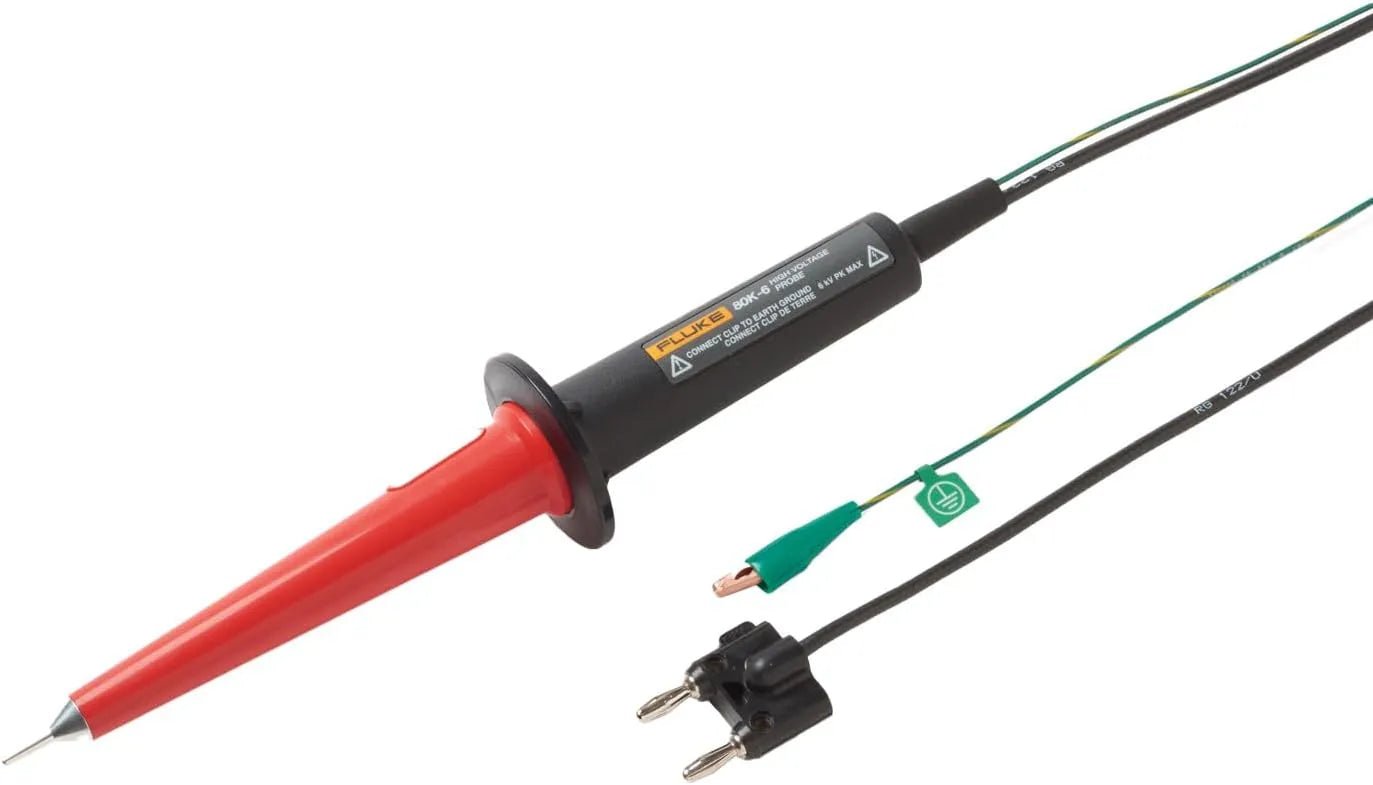

The Fluke 80K-6 High Voltage Probe is a specialized accessory designed to safely extend the voltage measurement range of AC/DC multimeters to 6000 volts peak AC or DC. It is engineered for low-energy applications such as measuring voltages inside televisions, copy machines, and other similar equipment.
This high-accuracy probe uses a 1000:1 voltage divider ratio to ensure precise measurements when paired with a multimeter that has an input resistance of 10 M?. The durable molded plastic housing provides safety for the user, making it reliable for demanding measurement tasks.
Note:
This probe is not intended for use on high-voltage power distribution systems.
Key Features:
Specifications:
The Fluke 80K-6 High Voltage Probe is a specialized accessory designed to safely extend the voltage measurement range of AC/DC multimeters to 6000 volts peak AC or DC. It is engineered for low-energy applications such as measuring voltages inside televisions, copy machines, and other similar equipment.
This high-accuracy probe uses a 1000:1 voltage divider ratio to ensure precise measurements when paired with a multimeter that has an input resistance of 10 M?. The durable molded plastic housing provides safety for the user, making it reliable for demanding measurement tasks.
Note:
This probe is not intended for use on high-voltage power distribution systems.
Key Features:
Specifications:

• Extended Voltage Measurement Range:Expands the measurement capability of multimeters up to 6000 volts peak AC or DC.
• High Divider Ratio:Features a 1000:1 divider ratio for accurate and reliable readings.
• High Accuracy:±1% for DC to 500 Hz and ±2% for 500 Hz to 1 kHz.
• High Input Resistance:75 M? input resistance reduces the loading effect on circuits being measured.
• Robust Safety Design:Durable molded plastic housing ensures user safety and protection against high voltages.

Specification | Details
———————–
Voltage Range | 0 to 6000 V DC or peak AC
Input Resistance | 75 M? (nominal)
Divider Ratio | 1000:1
Accuracy | ±1% for DC to 500 Hz; ±2% from 500 Hz to 1 kHz
Temperature Range | Storage: -20°C to 60°C; Operating: 0°C to 50°C
Dimensions | Length: 24.89 cm (9.8 in); Width: 5.10 cm (2.0 in)
Weight | Approximately 360 g
