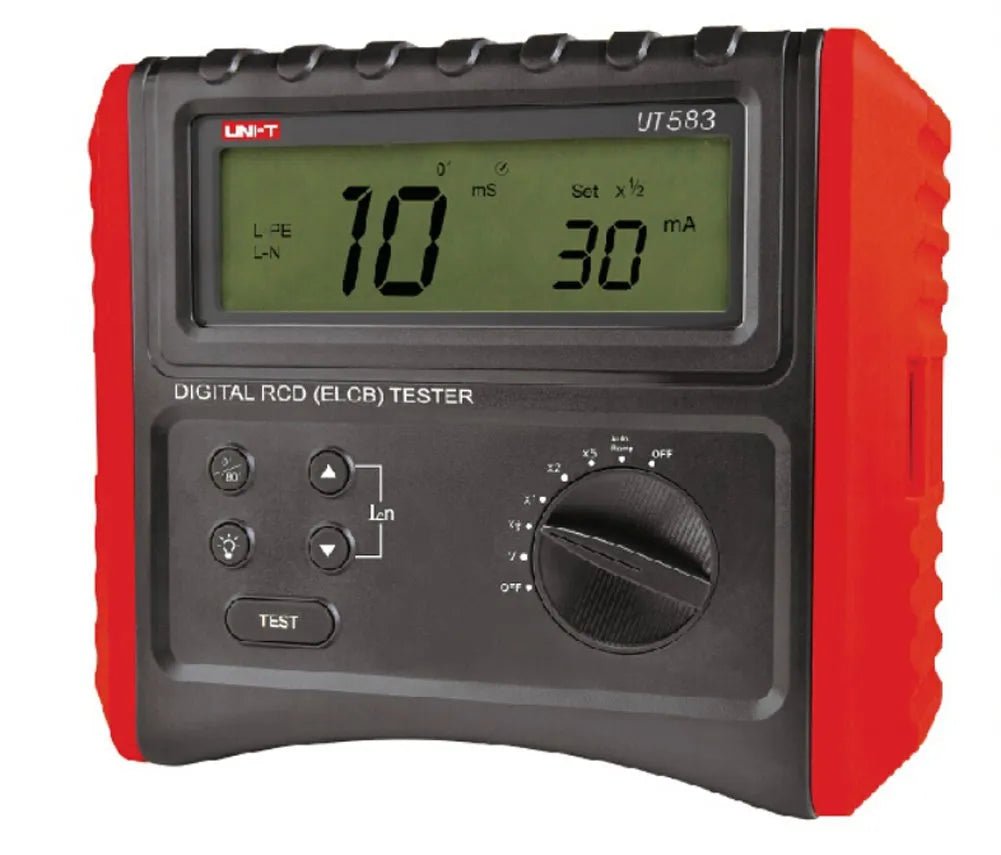

UNI-T DIGITAL RCD TESTER FOR LEAKAGE CURRENT MEASUREMENTS | UT583

The UNI-T UT583 Digital RCD Tester is an essential tool for electrical professionals, designed for testing residual current devices (RCDs) with high accuracy. This handheld device features a backlit display for easy readability, even in low-light conditions. It offers reliable leakage current measurements, ensuring that electrical installations comply with safety standards. The data hold function allows for easy recording and analysis of results. With its robust design and user-friendly interface, the UT583 is ideal for both fieldwork and lab use.
Specifications & Features
:
The UNI-T UT583 Digital RCD Tester is an essential tool for electrical professionals, designed for testing residual current devices (RCDs) with high accuracy. This handheld device features a backlit display for easy readability, even in low-light conditions. It offers reliable leakage current measurements, ensuring that electrical installations comply with safety standards. The data hold function allows for easy recording and analysis of results. With its robust design and user-friendly interface, the UT583 is ideal for both fieldwork and lab use.

SPECIFICATIONS & FEATURES
:
—————————

• AC Voltage (V) (Freq.): 60V~400V(50~60Hz)
• Auto Power Off
• Low Battery Indication
• Data Hold
• LCD Backlight
• Power: 1.5V Batteries (5#) X 8
• LCD Size: 125mm X 37mm
• Product Weight: 1000g
• Product Size: 210mm X 175mm X 90mm

Specifications | Range | Accuracy
———————————
Model | | UT583
RCD Measurement | Range Selection | Rated Operation Current | Trip Time |
X 1/2 | 10mA/20mA/30mA/100mA/300mA/500mA | 1000mS | ?
X 1 | 10mA/20mA/30mA/100mA/300mA/500mA | 1000mS | ?
X 2 | 10mA/20mA/30mA/100mA/300mA | 1000mS | ?
X 5 | 10mA/20mA/30mA/100mA | 200mS | ?
AUTO RAMP | 10mA/20mA/30mA/100mA/300mA/500mA | 300mS | ?
Trip Current Accuracy | | ±10%
Trip Time Accuracy | | ±(1%+3)
Trip Time Resolution | | 1mS
Operational Voltage | 230V(50Hz) | ±10%
