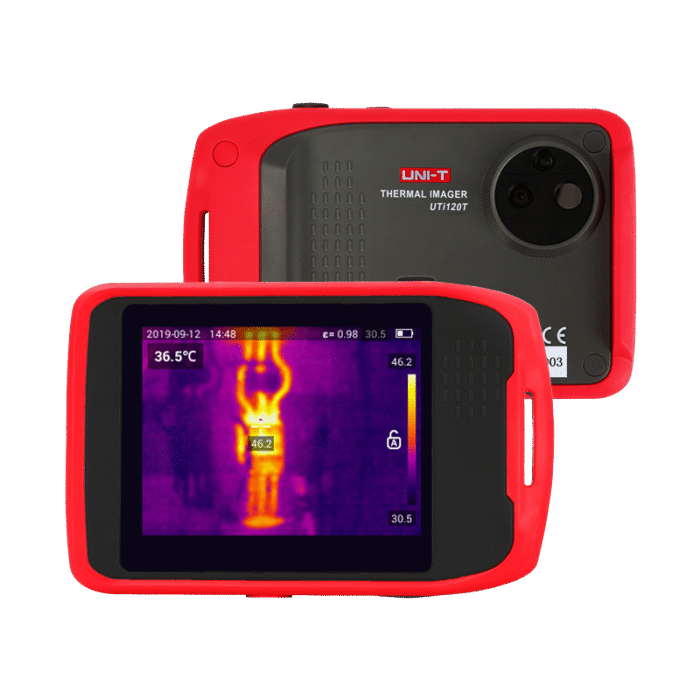

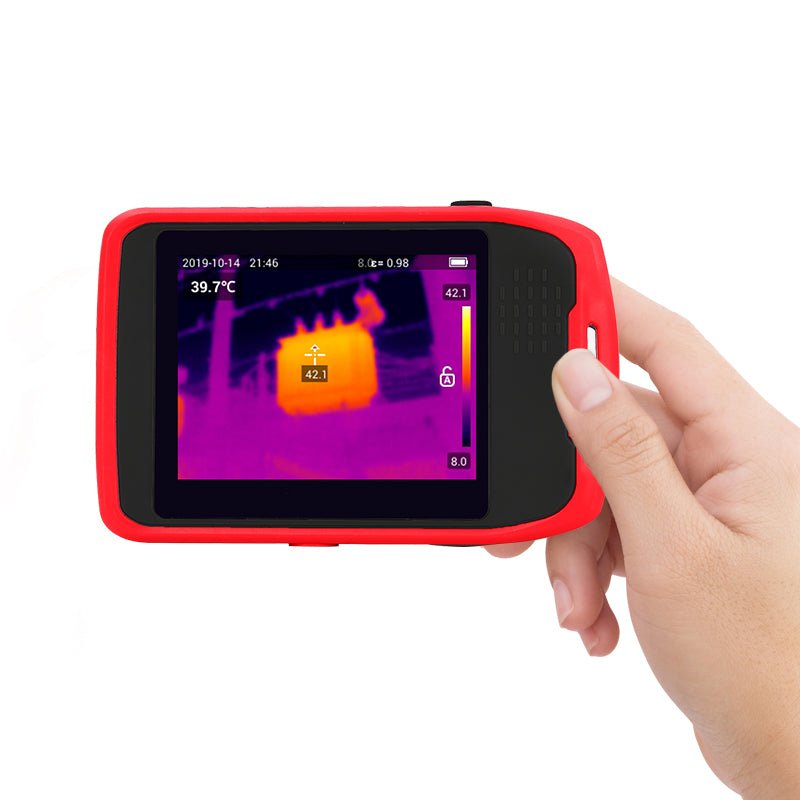

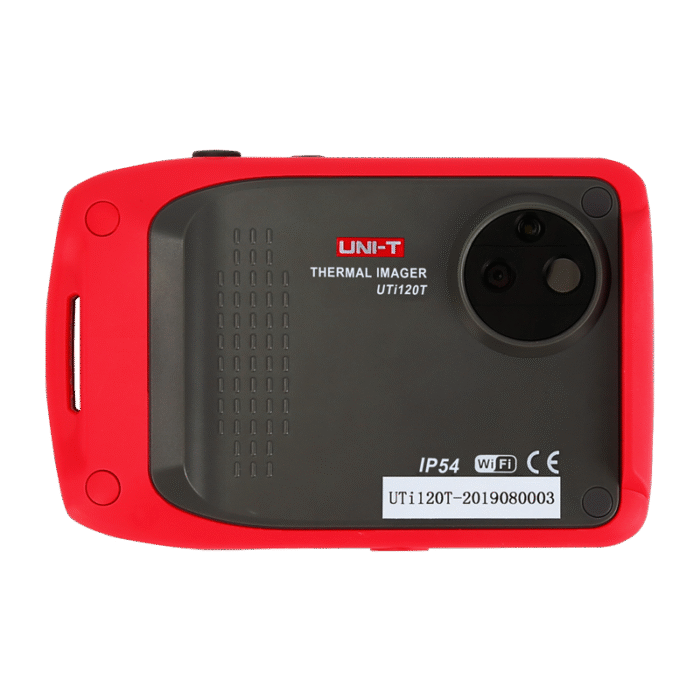

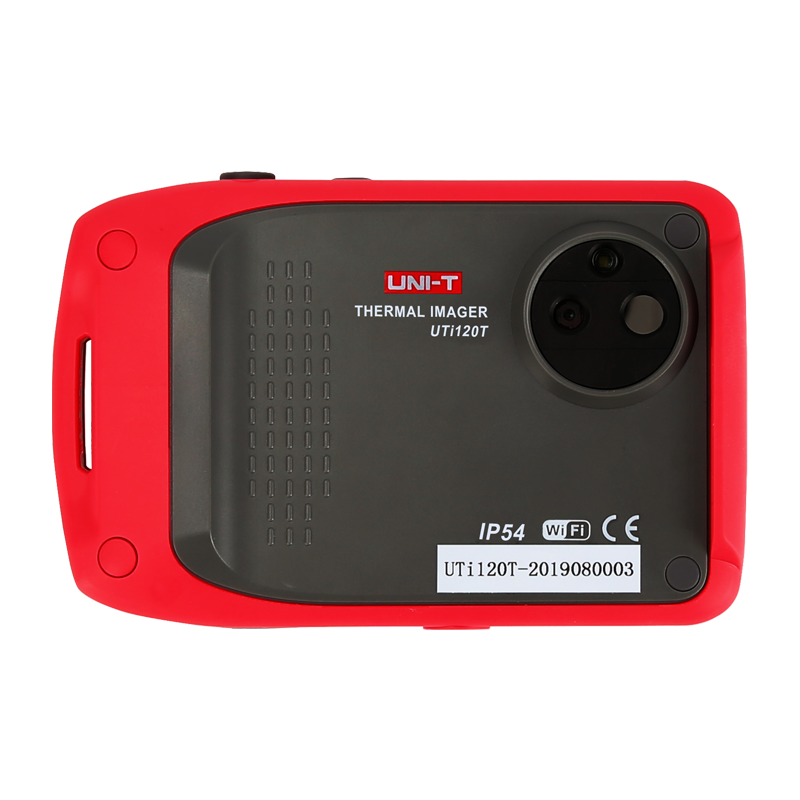

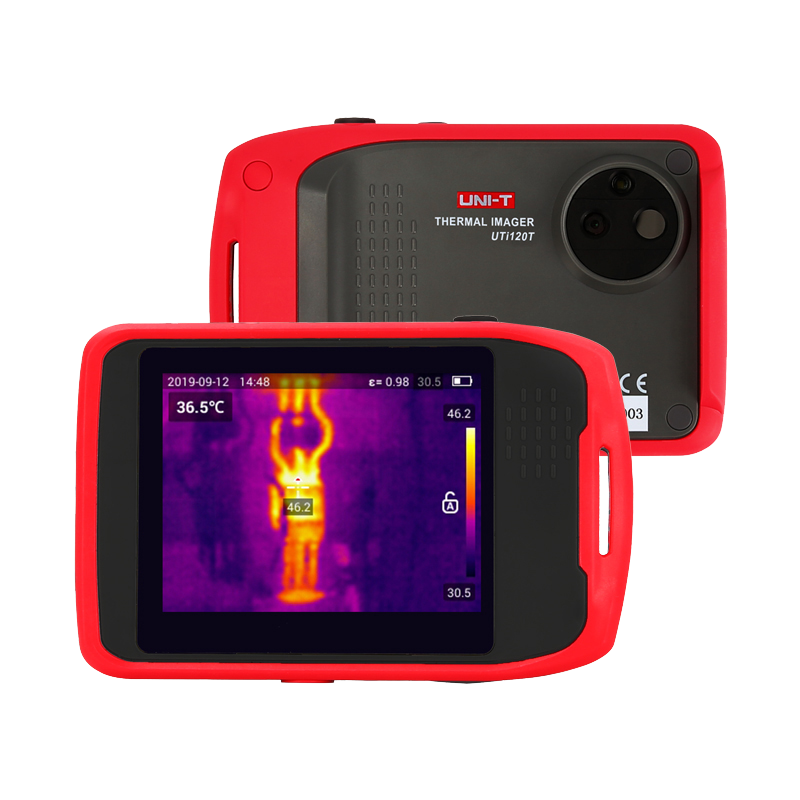

UNI-T POCKET-SIZED THERMAL CAMERA | UTI120T

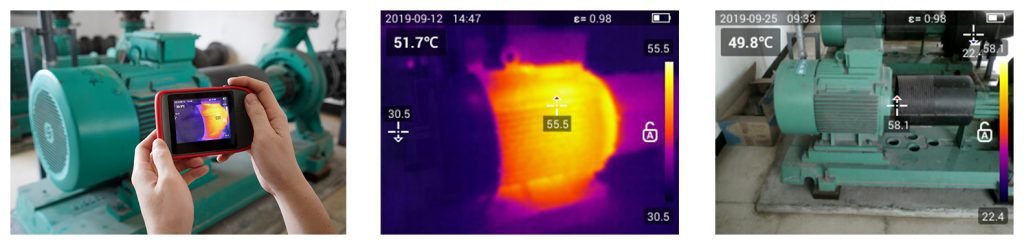

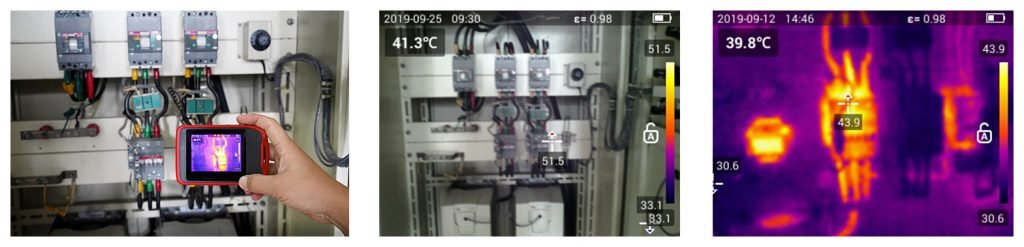

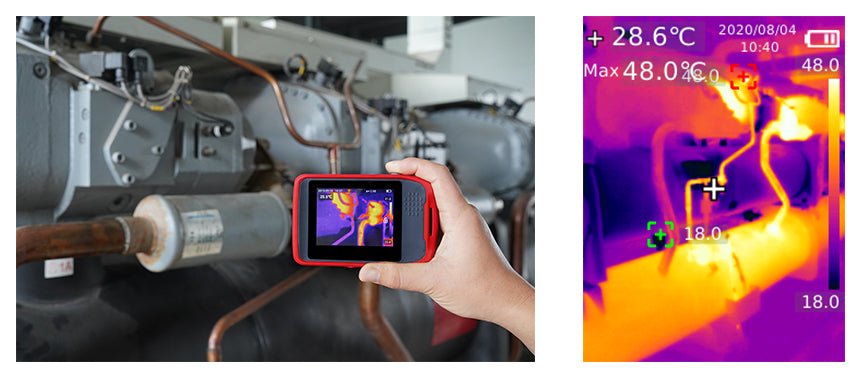

The UNI-T UTi120T Thermal Camera is a compact, portable device designed for versatile temperature diagnostics. With its 3.5’’ TFT touchscreen, the UTi120T provides clear and detailed thermal imaging, making it ideal for detecting issues in electrical systems, mechanical equipment, and building structures. The camera supports automatic tracking of hot and cold spots and offers various image modes and color palettes for precise analysis. Wi-Fi connectivity through the UNI-T Mobile App allows for seamless data transfer and real-time monitoring. Its robust build ensures durability with an IP54 rating and 1m drop proof capability.
Specifications & Features:
The UNI-T UTi120T Thermal Camera is a compact, portable device designed for versatile temperature diagnostics. With its 3.5’’ TFT touchscreen, the UTi120T provides clear and detailed thermal imaging, making it ideal for detecting issues in electrical systems, mechanical equipment, and building structures. The camera supports automatic tracking of hot and cold spots and offers various image modes and color palettes for precise analysis. Wi-Fi connectivity through the UNI-T Mobile App allows for seamless data transfer and real-time monitoring. Its robust build ensures durability with an IP54 rating and 1m drop proof capability.

SPECIFICATIONS & FEATURES:
————————–

• IR Resolution:120×90 pixels
• Display:3.5” TFT Touchscreen (320×240 pixels)
• Field of View:50°×38°
• Thermal Sensitivity:?60mK
• Frame Rate:?25Hz
• Temperature Range:-20? to 400?
• Accuracy:±2? or ±2% (whichever is greater)
• Color Palettes:6 (White hot, Black hot, Ironbow, Hot iron, Arctic, Medical)
• Image Modes:Thermal, Visual, Fusion, PIP
• Digital Camera Resolution:640×480 pixels
• Digital Zoom:1.0~8x continuous
• Alarm:High/low temperature alert
• Battery:Fixed Li-ion, ?2 hours operation (Wi-Fi off)
• Connectivity:Wi-Fi, USB Type-C
• Durability:IP54 rating, 1m drop proof
• Weight:212g
• Dimensions:205mm×124mm×65mm
