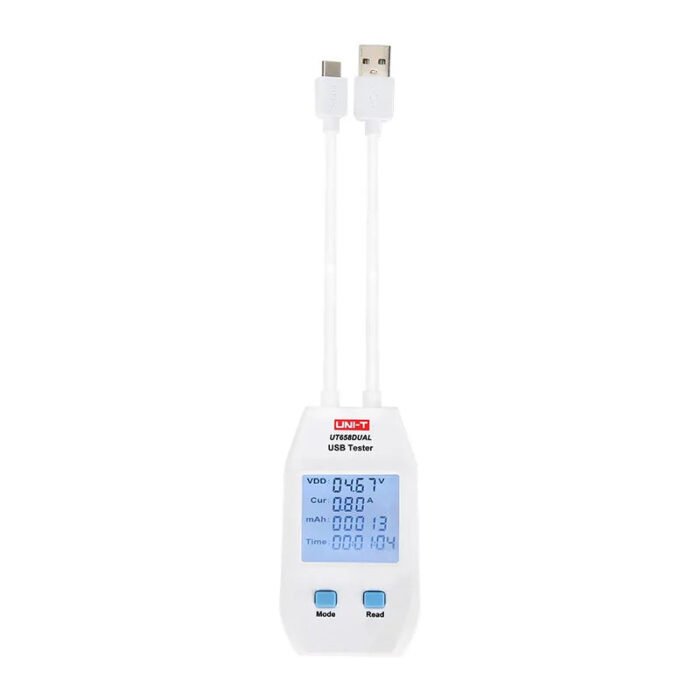

UNI-T USB TESTER | UT658DUAL

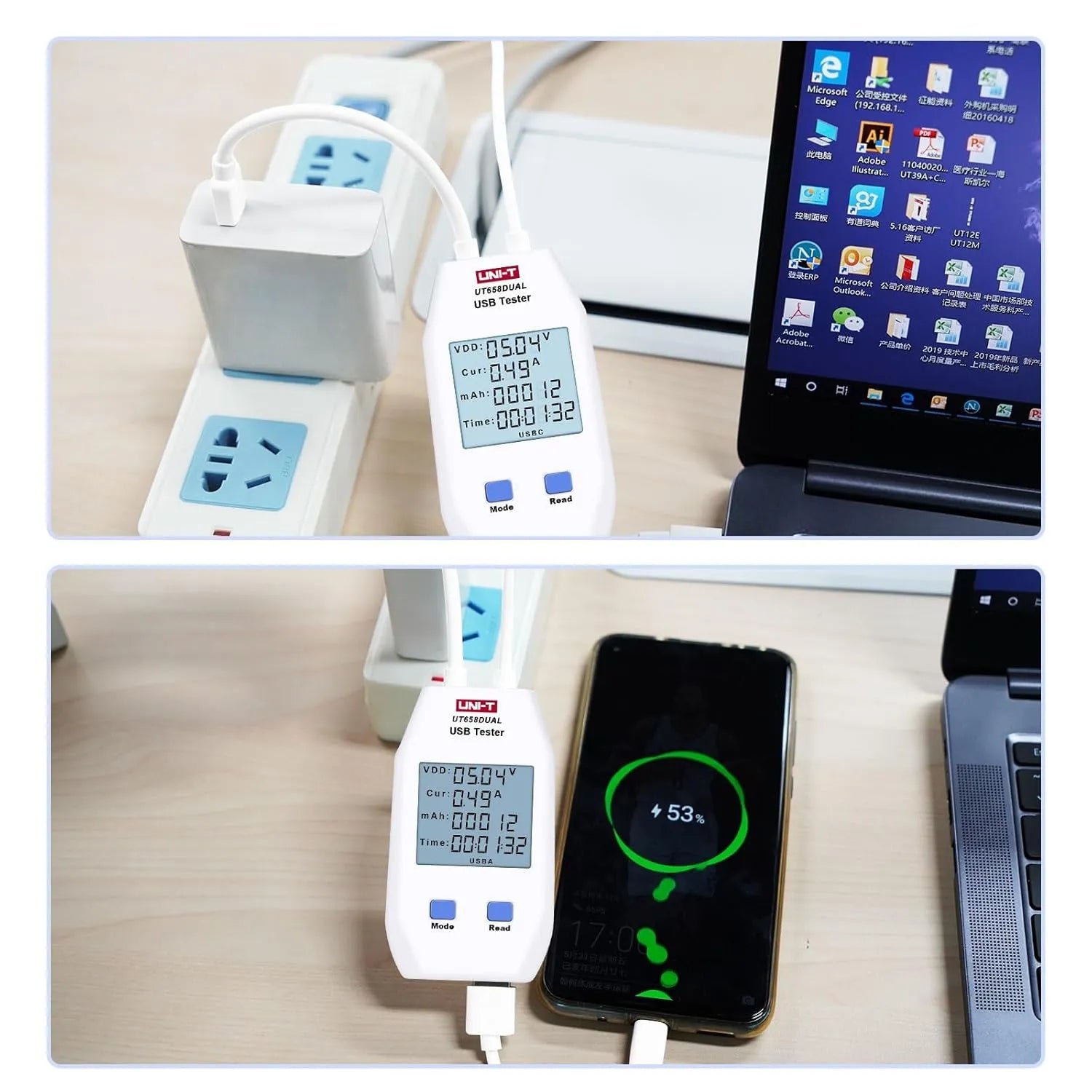

The UNI-T UT658DUAL USB Tester is precision tool designed to inspect USB chargers, portable power sources, and cables. With the ability to measure output voltage, current, energy, capacity, and even circuit resistance, this tester is ideal for manufacturing verification, engineering testing, and DIY applications. The device support fast charging protocols, have a robust data storage capacity of up to 10 sets, and offer reliable performance with CE certification.
Specifications & Features
:
The UNI-T UT658DUAL USB Tester is precision tool designed to inspect USB chargers, portable power sources, and cables. With the ability to measure output voltage, current, energy, capacity, and even circuit resistance, this tester is ideal for manufacturing verification, engineering testing, and DIY applications. The device support fast charging protocols, have a robust data storage capacity of up to 10 sets, and offer reliable performance with CE certification.

SPECIFICATIONS & FEATURES
:
—————————

• Interface: Type-A and Type-C
• Voltage Range: 4~24VDC, resolution: 0.01V
• Current Range: Type-A: 0.05~3ADC, Type-C: 0.05~5ADC, resolution: 0.01A
• Capacity: Up to 99999mAh, resolution: 1mAh
• Energy: Up to 1000Wh
• Data Storage: 10 sets
• Circuit Resistance: 1~480?

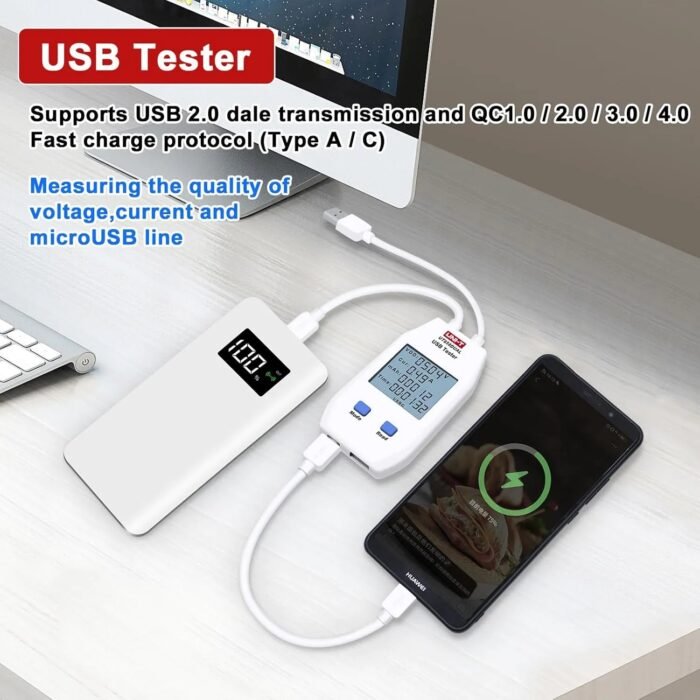

• Fast Charge Support: QC 3.0 (Type-A), QC 4.0 (Type-C)
• Certifications: CE, UKCA
• Weight: 65.8g
• Product size:93mm x 55mm x 13mm
