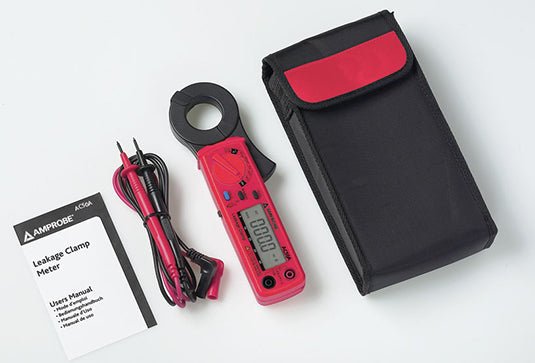

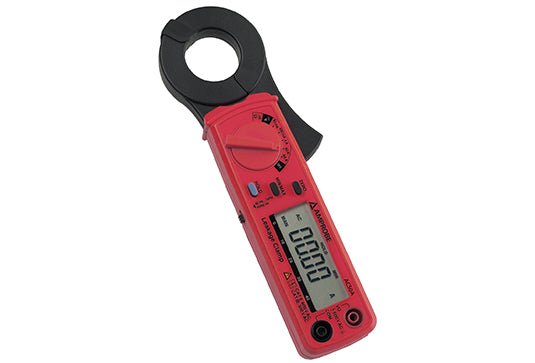

AMPROBE AC50A AC LEAKAGE CLAMP METER

The Amprobe AC50A AC Leakage Clamp Meter is ideal for measuring low AC currents, especially leakage and fault currents in electrical systems. Its high-resolution measurement capability (up to 0.01 mA) makes it suitable for troubleshooting sensitive installations. The clamp accommodates conductors up to 30 mm, making it versatile for various applications.
Features:
Specifications:
The Amprobe AC50A AC Leakage Clamp Meter is ideal for measuring low AC currents, especially leakage and fault currents in electrical systems. Its high-resolution measurement capability (up to 0.01 mA) makes it suitable for troubleshooting sensitive installations. The clamp accommodates conductors up to 30 mm, making it versatile for various applications.
Features:
Specifications:

• Measures AC current up to 60 A.
• Leakage current measurement with 0.01 mA resolution.
• AC voltage measurement up to 400 V.
• Resistance measurement and continuity buzzer.
• Min/Max control for tracking fluctuations.
• Data hold function for freezing measurement values.
• Manual range selection for precise measurements.
• Auto power-off function for battery conservation.
• Digital LCD display with analog bargraph.

Specification | Details
———————–
AC Voltage Measurement | Up to 400 V
AC Current Measurement | 40 mA, 400 mA, 4 A, 40 A, 60 A
Minimum Current Resolution | 0.01 mA
Resistance Measurement | Up to 400 ?
Continuity Test | Yes (with buzzer)
Clamp Opening | 1.2 inches (30 mm)
Display | 3¾ LCD with analog bargraph (40 segments)
Power Source | 2 × 1.5 V AA (IEC LR6) batteries
Auto Power-Off | After ~30 minutes of inactivity
Operating Temperature | -10°C to 50°C
Storage Temperature | -20°C to 60°C
Weight | 320 grams
Safety Rating | CAT II 600 V, CAT III 300 V
