AMPROBE CLAMP METER 400A | ACD-23SW

The

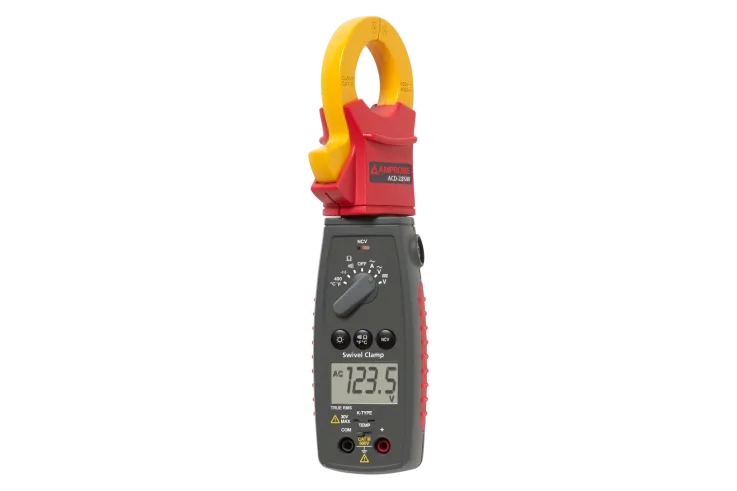

Amprobe ACD-23SW Clamp Meter
is an innovative tool designed to provide
accurate electrical measurements
in
tight spaces
and
HVAC environments
. Its
180-degree swivel jaw
allows for
easy display viewing
, even in
challenging locations
. The
True RMS feature
ensures
precise readings
, making it perfect for
professional electricians
and
technicians
.
With the ability to measure
AC current up to 400A
,
AC/DC voltage up to 600V
,
resistance, capacitance, and temperature
, this clamp meter covers
a wide range of applications
. The built-in
VoltTect non-contact voltage detection
adds an extra layer of safety, allowing you to detect live wires without making contact.
Key Features:
Specifications:
What’s Included:
The
Amprobe ACD-23SW Clamp Meter
is an innovative tool designed to provide
accurate electrical measurements
in
tight spaces
and
HVAC environments
. Its
180-degree swivel jaw
allows for
easy display viewing
, even in
challenging locations
. The
True RMS feature
ensures
precise readings
, making it perfect for
professional electricians
and
technicians
.
With the ability to measure
AC current up to 400A
,
AC/DC voltage up to 600V
,
resistance, capacitance, and temperature
, this clamp meter covers
a wide range of applications
. The built-in
VoltTect non-contact voltage detection
adds an extra layer of safety, allowing you to detect live wires without making contact.

KEY FEATURES:
————-

SPECIFICATIONS:
—————

WHAT’S INCLUDED:
—————-

• True RMS for accurate readingsin noisy electrical environments.
• 180-degree rotating jawfor improved visibility in tight spaces.
• Measures AC current up to 400A.
• Measures AC/DC voltage up to 600V.
• Resistance and capacitance measurementsfor electrical component testing.
• Temperature measurementwith a Type K probe.
• Non-contact voltage detection (VoltTect)for added safety.
• Slim clamp designfor easy handling in confined areas.
• Auto power-off functionto conserve battery life.
• Data hold featurefor freezing displayed measurements.
• Amprobe ACD-23SW Clamp Meter
• Type K Temperature Probe
• High-Quality Test Leads
• Carrying Case
• Pre-installed 9V Battery
• User Manual

Specification | Details
———————–
AC Current Ranges: | 40.00A, 400.0A
AC Voltage Ranges: | 4.000V, 40.00V, 400.0V, 600V
DC Voltage Ranges: | 400.0mV, 4.000V, 40.00V, 400.0V, 600V
Resistance Ranges: | 400.0?, 4.000k?, 40.00k?, 400.0k?, 4.000M?, 40.00M?
Capacitance Ranges: | 40.00nF, 400.0nF, 4.000µF, 40.00µF, 400.0µF, 4.000mF
Temperature Measurement: | -20°C to 760°C using Type K probe
Non-Contact Voltage Detection: | Yes, withVoltTect technology
Data Hold Function: | Yes, allows measurement freezing for easy review
True RMS Measurement: | Yes, for accurate readings in complex environments
Display: | LCD withbacklightfor improved readability in low-light areas
Jaw Design: | Slim clampfor reaching tight spaces
Auto Power-Off: | Yes, to preserve battery life
Power Supply: | 9V Battery (included)
Dimensions: | 229 × 80 × 49 mm
Weight: | 380 g
