BEHA-AMPROBE GROUND RESISTANCE TESTER | KMP7010

A properly functioning grounding system is a critical safety feature of an electrical installation. The

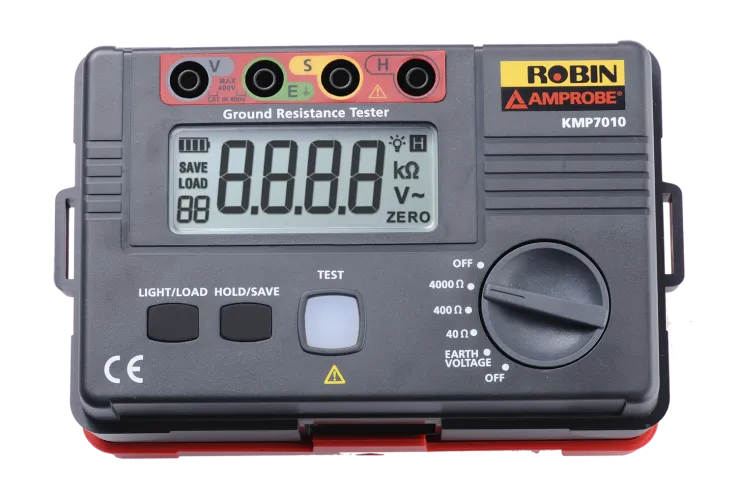

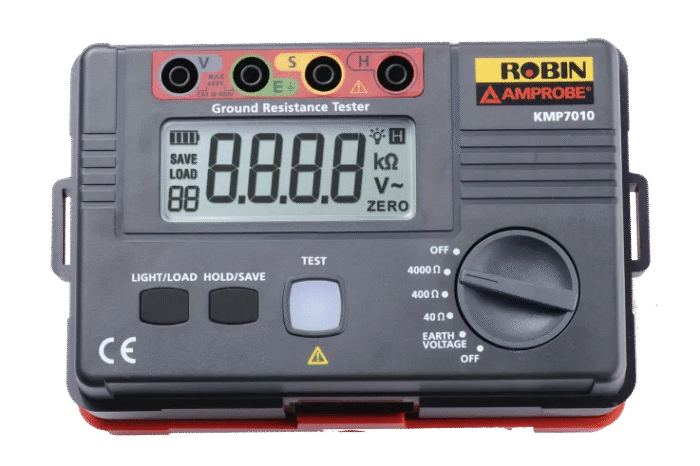

Beha-Amprobe KMP7010 Ground Resistance Tester
is designed to measure the resistance of grounding systems to verify that they have low enough resistance to provide protection for people, equipment, and structures. This tester is essential for ensuring that exposed metal parts do not come into contact with dangerous voltages in the event of an installation failure.
Key Features:
Specifications:
What’s Included:
A properly functioning grounding system is a critical safety feature of an electrical installation. The
Beha-Amprobe KMP7010 Ground Resistance Tester
is designed to measure the resistance of grounding systems to verify that they have low enough resistance to provide protection for people, equipment, and structures. This tester is essential for ensuring that exposed metal parts do not come into contact with dangerous voltages in the event of an installation failure.
Key Features:
Specifications:
What’s Included:

• Earth Ground Resistance Measurement:Performs both 3-point (fall of potential) and 2-point tests to assess the effectiveness of grounding systems.
• Voltage Measurement:Measures AC voltage up to 400V to prevent false resistance readings caused by existing voltages.
• Built-in Memory:Stores up to 20 measurements, allowing for easy data recall and analysis.
• Large Backlit Display:Ensures clear visibility of readings in various lighting conditions.
• Data Hold Function:Allows users to freeze the displayed measurement for convenient recording.
• Safety Compliance:Designed to meet BS7671 IEE 17th Edition regulations and rated CAT III 400V for user safety.
• Test lead set for 3-point testing
• Auxiliary ground rods
• Test lead set for 2-point testing
• 6 x AA batteries
• User manual
• Strap and carrying case

Specification | Details
———————–
Earth Resistance Measurement Ranges: | – 0.00? to 40.00? ± (2% rdg + 20 LSD)- 0.0? to 400.0? ± (2% rdg + 3 LSD)- 0? to 4000? ± (2% rdg + 3 LSD)
AC Voltage Measurement: | 0V to 400V ± (1% rdg + 6 LSD) at 50/60 Hz
Operating Temperature: | +5°C to +40°C, ?80% RH, non-condensing
Storage Temperature: | -20°C to +60°C, ?90% RH, non-condensing (without batteries)
Power Supply: | 6 x 1.5V AA Alkaline Batteries
Dimensions (L x W x H): | 160 x 101 x 71 mm (6.3 x 3.98 x 2.79 in)
Weight: | Approximately 500 g (1.1 lb) with batteries installed
Safety Standards: | BS EN 61010-1 CAT III 400V, BS EN 61557-1, BS EN 61557-5, BS EN 61326-1 (EMC)
