BEHA-AMPROBE LOOP IMPEDANCE TESTER | KMP7030

The

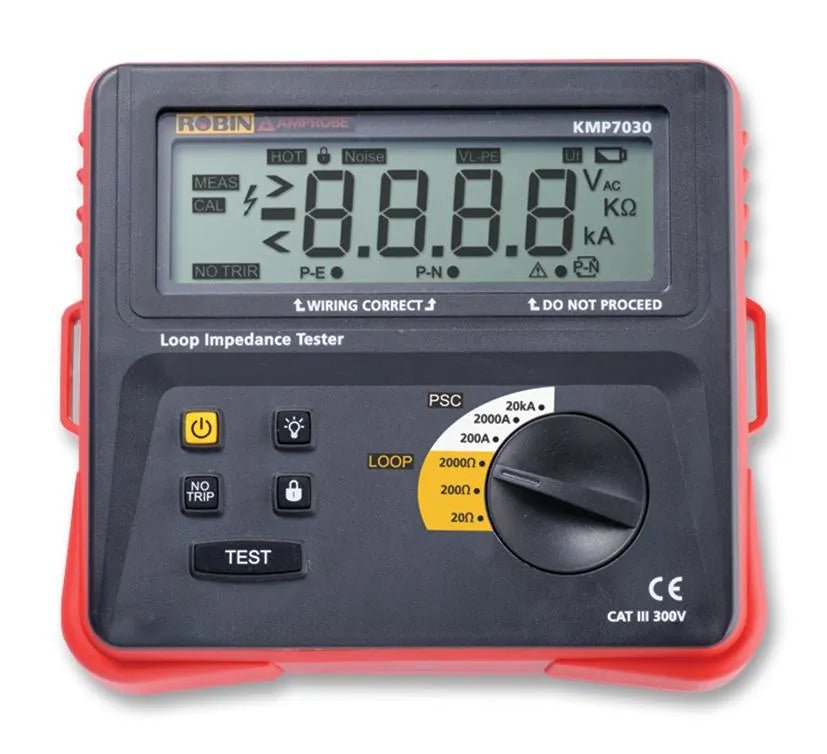

Beha-Amprobe KMP7030 Loop Impedance Tester
is an essential tool for electricians and safety professionals, providing a quick and convenient method to assess the effectiveness of protective devices within electrical circuits. Loop testing is crucial for identifying potential issues where current may find unintended parallel paths to ground, ensuring that safety mechanisms like circuit breakers and RCDs function correctly to prevent electrical hazards.
Key Features:
Specifications:
Included Accessories:
The
Beha-Amprobe KMP7030 Loop Impedance Tester
is an essential tool for electricians and safety professionals, providing a quick and convenient method to assess the effectiveness of protective devices within electrical circuits. Loop testing is crucial for identifying potential issues where current may find unintended parallel paths to ground, ensuring that safety mechanisms like circuit breakers and RCDs function correctly to prevent electrical hazards.
Key Features:
Specifications:
Included Accessories:

• Non-Trip Loop Test on Passive RCDs:Allows for safe testing without tripping passive RCDs, ensuring system continuity during evaluation.
• Instant Reading:Provides immediate results, facilitating efficient troubleshooting and verification processes.
• Multiple Loop Measurement Ranges:Offers 20?, 200?, and 2000? ranges to accommodate various testing scenarios and requirements.
• Prospective Short-Circuit (PSC) Measurement:Measures up to 20kA, enabling assessment of the system’s capacity to handle fault conditions.
• Mains Voltage Display Before Test:Displays the mains voltage prior to testing, ensuring safe operation and accurate measurements.
• Instant Correct Wiring Status Check:Quickly verifies proper wiring status, helping to identify potential issues before they become hazardous.
• Backlit Display:Enhances visibility in low-light environments, ensuring readings are easily seen in all working conditions.
• Low Battery Indication:Alerts the user when battery power is low, preventing unexpected downtime during critical testing.
• Mains test cord
• Test lead set with IEC connector
• Test probe set
• Alligator clip set
• 8 x AA batteries
• User manual
• Strap and carrying case

Specification | Details
———————–
Operating Voltage: | 230Vac, 45Hz ~ 65Hz +10% to -15%
Loop Impedance Ranges: | 20? / 200? / 2000?
Measurement Accuracy: | ±(3% rdg + 4 LSD)
AC Test Current: | 25A Nominal at 20?
AC Test Period: | 10ms at 20?
No Trip Loop Impedance: | 20? / 200?
PSC Measurement Ranges: | 200A / 2000A / 20kA
Voltage Measurement Range: | 100Vac ~ 300Vac ±(2% rdg + 4 LSD) @ 50/60Hz
Operating Temperature: | 0°C to +40°C, ?85% RH, non-condensing
Storage Temperature: | -20°C to +60°C, ?90% RH, non-condensing (without batteries)
Power Supply: | 1.5V Alkaline Battery (AA Battery) × 8 pcs
Dimensions (L x W x H): | 189 x 168 x 85 mm (7.43 x 6.65 x 3.35 in)
Product Weight: | Approx. 1.1kg (2.4 lb) with batteries installed
