FLUKE 1587 T INSULATION MULTIMETER

The

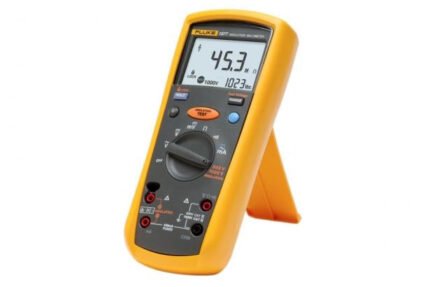

Fluke 1587 T Insulation Multimeter
integrates a digital insulation tester and a true RMS digital multimeter into a single compact, handheld unit. Tailored for the telecommunications industry, it offers insulation test voltages of 50 V and 100 V, making it ideal for testing line insulation in telecom applications. This multimeter provides maximum versatility for both troubleshooting and preventive maintenance tasks.
Key Features:
Technical Specifications:
Included Accessories:
The
Fluke 1587 T Insulation Multimeter
integrates a digital insulation tester and a true RMS digital multimeter into a single compact, handheld unit. Tailored for the telecommunications industry, it offers insulation test voltages of 50 V and 100 V, making it ideal for testing line insulation in telecom applications. This multimeter provides maximum versatility for both troubleshooting and preventive maintenance tasks.

KEY FEATURES:
————-

TECHNICAL SPECIFICATIONS:
————————-

INCLUDED ACCESSORIES:
———————

• Insulation Testing:Selectable test voltages of50 V and 100 V, measuring insulation resistance from0.01 M? to 100 M?.
• True RMS Multimeter:Measures AC/DC voltage, DC millivolts, AC/DC milliamps, resistance, continuity, capacitance, frequency, and temperature.
• Low-Pass Filter:Incorporates a low-pass filter for accurate measurements on motor drives and variable-frequency motor drives.
• Live Circuit Detection:Prevents insulation tests if voltage greater than30 Vis detected, enhancing user safety.
• Auto-Discharge:Automatically discharges capacitive voltage after testing to ensure user protection.
• Large Backlit Display:Features a large display with backlight for easy reading in various lighting conditions.
• Auto Power Off:Conserves battery life by automatically powering off when not in use.
• Input Alert:Warns users of incorrect connections to prevent potential damage.
• Remote test probe
• Test leads
• Alligator clips
• K-type thermocouple
• Hard carrying case
• User documentation

Specification | Details
———————–
Insulation Test Voltages | 50 V, 100 V
Insulation Resistance Range | 0.01 M? to 100 M?
AC/DC Voltage Measurement | Up to 1000 V
DC Millivolts Measurement | Yes
AC/DC Milliamps Measurement | Yes
Resistance Measurement | 0.1 ? to 50 M?
Continuity Test | Yes
Capacitance Measurement | Yes
Frequency Measurement | Yes
Temperature Measurement | Yes (with K-type thermocouple)
Display | Large backlit LCD
Power Supply | Four AA alkaline batteries
Dimensions | 203 mm x 100 mm x 50 mm
Weight | 600 g
