FLUKE 1630-2 FC EARTH GROUND CLAMP METER

The

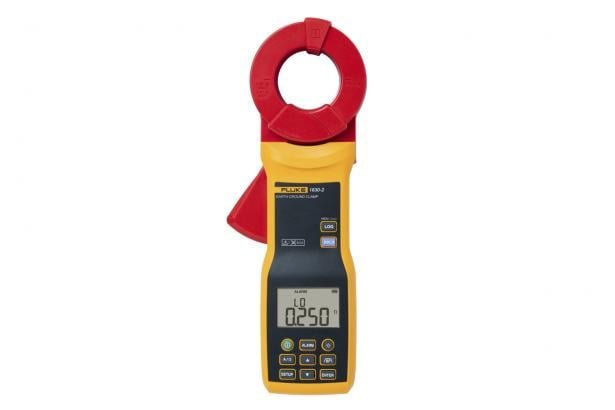

Fluke 1630-2 FC Earth Ground Clamp
is engineered for
quick, safe, and accurate
earth ground loop resistance testing
without auxiliary test stakes
. This
stakeless
testing method is ideal for locations where driving stakes is impractical, such as inside buildings or on paved surfaces.
Additionally, the clamp can
measure AC leakage current
without disconnecting the earth ground stake, making it a perfect tool for
troubleshooting electrical systems
. It features a
heavy-duty clamp jaw
that stays in alignment and calibration even in tough industrial environments.
Moreover, the
Fluke Connect® Wireless System
allows for real-time data sharing and remote monitoring, enhancing
efficiency and collaboration
.
Product Specifications:
The
Fluke 1630-2 FC Earth Ground Clamp
is engineered for
quick, safe, and accurate
earth ground loop resistance testing
without auxiliary test stakes
. This
stakeless
testing method is ideal for locations where driving stakes is impractical, such as inside buildings or on paved surfaces.
Additionally, the clamp can
measure AC leakage current
without disconnecting the earth ground stake, making it a perfect tool for
troubleshooting electrical systems
. It features a
heavy-duty clamp jaw
that stays in alignment and calibration even in tough industrial environments.
Moreover, the
Fluke Connect® Wireless System
allows for real-time data sharing and remote monitoring, enhancing
efficiency and collaboration
.

PRODUCT SPECIFICATIONS:
———————–

Feature | Details
—————–
Earth Ground Loop Resistance | Range:0.025 ? to 1500 ?
| Accuracy:±1.5% to ±20% (depending on range)
Earth Ground Leakage Current | Range:0.200 mA to 39.99 A
| Accuracy:±2.0% of reading + specified value
Maximum Voltage to Earth Ground | 1000 V
Battery Type | 4 AA alkaline batteries
Battery Life | More than 15 hours
Frequency Range | 40 Hz to 1 kHz
Ingress Protection | IP30 (with jaw closed)
Conductor Size | Approx. 40 mm (1.57 in)
Dimensions (L × W × H) | 283 × 105 × 48 mm (11.1 × 4.1 × 1.9 in)
Weight | 0.88 kg (880 g)
