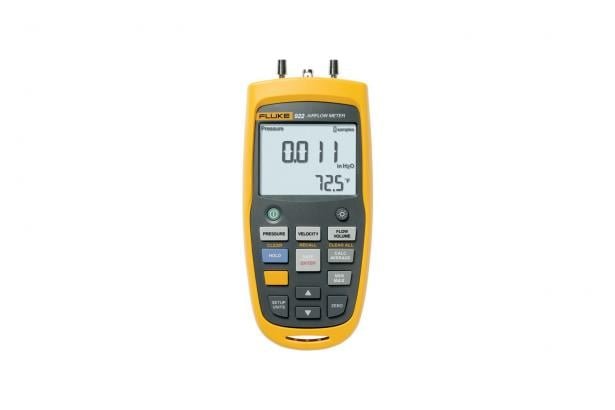

FLUKE 922 AIRFLOW METER/MICROMANOMETER

The
Fluke 922 Airflow Meter/Micromanometer
is designed to simplify the diagnosis of ventilation issues by integrating three essential tools: differential pressure, airflow, and velocity measurements. This handheld device allows HVAC technicians to:
The Fluke 922 features a bright, backlit display for clear viewing in various environments, user-defined duct shape and size inputs for maximum airflow accuracy, and convenient colored hoses to help interpret pressure readings accurately. Additional functions include Min/Max/Average/Hold for easy data analysis and auto power-off to conserve battery life.
Product Specifications:
The
Fluke 922 Airflow Meter/Micromanometer
is designed to simplify the diagnosis of ventilation issues by integrating three essential tools: differential pressure, airflow, and velocity measurements. This handheld device allows HVAC technicians to:
The Fluke 922 features a bright, backlit display for clear viewing in various environments, user-defined duct shape and size inputs for maximum airflow accuracy, and convenient colored hoses to help interpret pressure readings accurately. Additional functions include Min/Max/Average/Hold for easy data analysis and auto power-off to conserve battery life.

PRODUCT SPECIFICATIONS:
———————–

• Measure pressure drops across key HVAC equipment to ensure optimal performance and extend equipment life.
• Match ventilation to occupant loads.
• Monitor indoor vs. outdoor pressure relationships to manage the building envelope.
• Promote indoor comfort and air quality.
• Perform duct traversals for accurate airflow readings.

Feature | Range | Resolution | Accuracy
—————————————
Air Pressure | ±4000 Pascals | 1 Pascal | ±1% + 1 Pascal
| ±16 in H?O | 0.001 in H?O | ±1% + 0.01 in H?O
| ±400 mm H?O | 0.1 mm H?O | ±1% + 0.1 mm H?O
| ±40 mbar | 0.01 mbar | ±1% + 0.01 mbar
| ±0.6 PSI | 0.0001 PSI | ±1% + 0.0001 PSI
Air Velocity | 250 to 16,000 fpm | 1 fpm | ±2.5% of reading at 2000 fpm (10.00 m/s)
| 1 to 80 m/s | 0.001 m/s | ±2.5% of reading at 2000 fpm (10.00 m/s)
Air Flow (Volume) | 0 to 99,999 cfm | 1 cfm | Accuracy is a function of velocity and duct size
| 0 to 99,999 m³/hr | 1 m³/hr | Accuracy is a function of velocity and duct size
| 0 to 99,999 l/s | 1 l/s | Accuracy is a function of velocity and duct size
Temperature | 0 °C to 50 °C (32 °F to 122 °F) | 0.1 °C (0.1 °F) | ±1% + 2 °C (±1% + 4 °F)
General Specifications | | |
Operating Temperature | 0 °C to +50 °C (+32 °F to +122 °F) | |
Storage Temperature | -40 °C to +60 °C (-40 °F to +140 °F) | |
Relative Humidity | 0% to 90%, non-condensing | |
IP Rating | IP40 | |
Operating Altitude | 2000 m | |
Storage Altitude | 12,000 m | |
EMI, RFI, EMC | Meets requirements for EN61326-1 | |
Vibration | MIL-PREF-28800F, Class 3 | |
Max Pressure at Each Port | 10 PSI | |
Data Storage Capacity | 99 readings | |
Warranty | 2 years | |
Power | Four AA batteries | |
Battery Life | 280 hours without backlight, 60 hours with backlight |
