FLUKE 1664 FC MULTIFUNCTION INSTALLATION TESTER

The

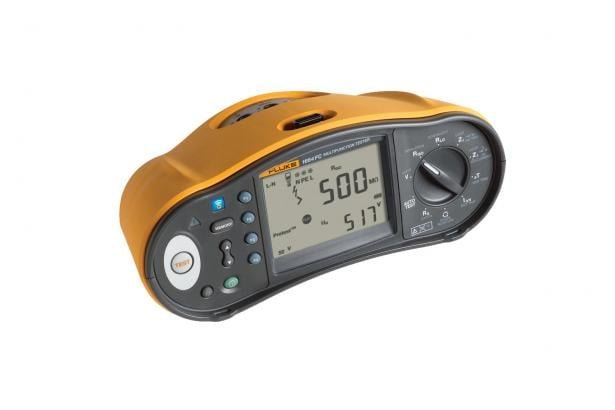

Fluke 1664 FC Multifunction Installation Tester
is a high-performance tool that offers comprehensive testing capabilities for electrical installations in residential, commercial, and industrial settings. It ensures that fixed wiring is safe and correctly installed, meeting IEC 60364 and all relevant local standards. The tester is equipped with advanced features to enhance safety, efficiency, and connectivity.
Key Features:
Technical Specifications:
The
Fluke 1664 FC Multifunction Installation Tester
is a high-performance tool that offers comprehensive testing capabilities for electrical installations in residential, commercial, and industrial settings. It ensures that fixed wiring is safe and correctly installed, meeting IEC 60364 and all relevant local standards. The tester is equipped with advanced features to enhance safety, efficiency, and connectivity.

KEY FEATURES:
————-

TECHNICAL SPECIFICATIONS:
————————-

• Fluke Connect® Compatibility:Allows for real-time data sharing via smartphone, enabling remote collaboration and data storage in the cloud.
• Loop and Line Resistance Measurement:Measures loop and line resistance with high accuracy to ensure proper circuit functionality.
• Continuity Testing:Tests continuity at L-N and N-PE inputs to verify proper wiring connections.
• Earth Resistance Measurement:Measures earth resistance to assess the effectiveness of grounding systems.
• Voltage and Frequency Measurement:Accurately measures voltage up to 500 V and frequency from 45 Hz to 65 Hz.
• Phase Sequence Indicator:Indicates the phase sequence to ensure correct phase installation.
• Self-Test Function:Conducts a self-test to verify proper operation, providing additional user confidence.

Specification | Details
———————–
AC Voltage Measurement | Range: Up to 500 VResolution: 0.1 VAccuracy: ±(1.5% + 5)
Frequency Measurement | Range: 45 Hz to 65 HzResolution: 0.1 HzAccuracy: ±(0.1% + 1)
Insulation Test Voltages | 50 V, 100 V, 250 V, 500 V, 1000 V
Insulation Resistance Range | Up to 1000 M?
Loop and Line Resistance Measurement | Range: 0.01 ? to 2000 ?
Continuity Test Current | 200 mA
RCD Test Currents | 10 mA, 30 mA, 100 mA, 300 mA, 500 mA, 1000 mA
Dimensions | 25 cm x 12.5 cm x 10 cm
Weight | 1.3 kg (including batteries)
Power Supply | Six AA batteries
