FLUKE 561 HVAC INFRARED & CONTACT THERMOMETER

The

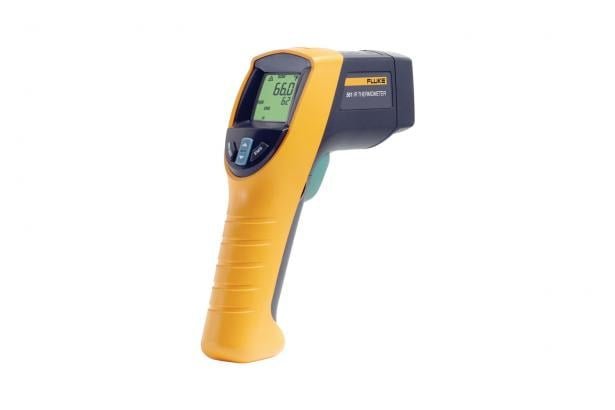

Fluke 561 HVAC Infrared & Contact Thermometer
is a versatile tool designed for professionals who require both infrared and contact temperature measurements. It allows for quick, non-contact scans of large areas or small objects, as well as contact measurements using a K-type thermocouple. Key features include:
This thermometer is ideal for checking motors, insulation, breakers, radiant heating, pipes, corroded connections, and wires. It enhances efficiency by allowing professionals to take measurements without shutting down equipment.
Product Specifications:
The
Fluke 561 HVAC Infrared & Contact Thermometer
is a versatile tool designed for professionals who require both infrared and contact temperature measurements. It allows for quick, non-contact scans of large areas or small objects, as well as contact measurements using a K-type thermocouple. Key features include:
This thermometer is ideal for checking motors, insulation, breakers, radiant heating, pipes, corroded connections, and wires. It enhances efficiency by allowing professionals to take measurements without shutting down equipment.

PRODUCT SPECIFICATIONS:
———————–

• Dual Measurement Capability:Offers both infrared (IR) for non-contact and K-type thermocouple for contact temperature measurements.
• Wide Temperature Range:Measures temperatures from -40°C to 550°C (-40°F to 1022°F).
• Single-Point Laser Sighting:Provides precise targeting for accurate measurements.
• Adjustable Emissivity:Allows for accurate readings on various surfaces by adjusting emissivity settings.
• MIN, MAX, and DIF Functions:Helps quickly identify temperature variations and potential issues.
• Lightweight and Portable:Weighs only 340 grams, making it easy to carry and use in various environments.
• Included Accessories:Comes with a Velcro® pipe probe for superheat, sub-cooling, and other contact and ambient measurements.

Feature | Specification
———————–
Measurement Range (IR) | -40°C to 550°C (-40°F to 1022°F)
Measurement Range (Contact) | -40°C to 550°C (-40°F to 1022°F)
Accuracy (IR) | ±1% of reading or ±1°C (±2°F), whichever is greater
Accuracy (Contact) | ±1% of reading or ±1°C (±2°F), whichever is greater
Distance-to-Spot Ratio | 12:1
Emissivity | Adjustable from 0.10 to 1.00
Response Time | <500 ms Spectral Response | 8 to 14 microns Display Resolution | 0.1°C (0.1°F) Power Supply | 2 AA batteries Battery Life | 12 hours with laser and backlight on Operating Temperature | 0°C to 50°C (32°F to 122°F) Storage Temperature | -20°C to 65°C (-4°F to 149°F) Relative Humidity | 10% to 90% RH non-condensing up to 30°C (86°F) Dimensions | 152 x 101 x 38 mm (6 x 4 x 1.5 in) Weight | 340 g (12 oz)
