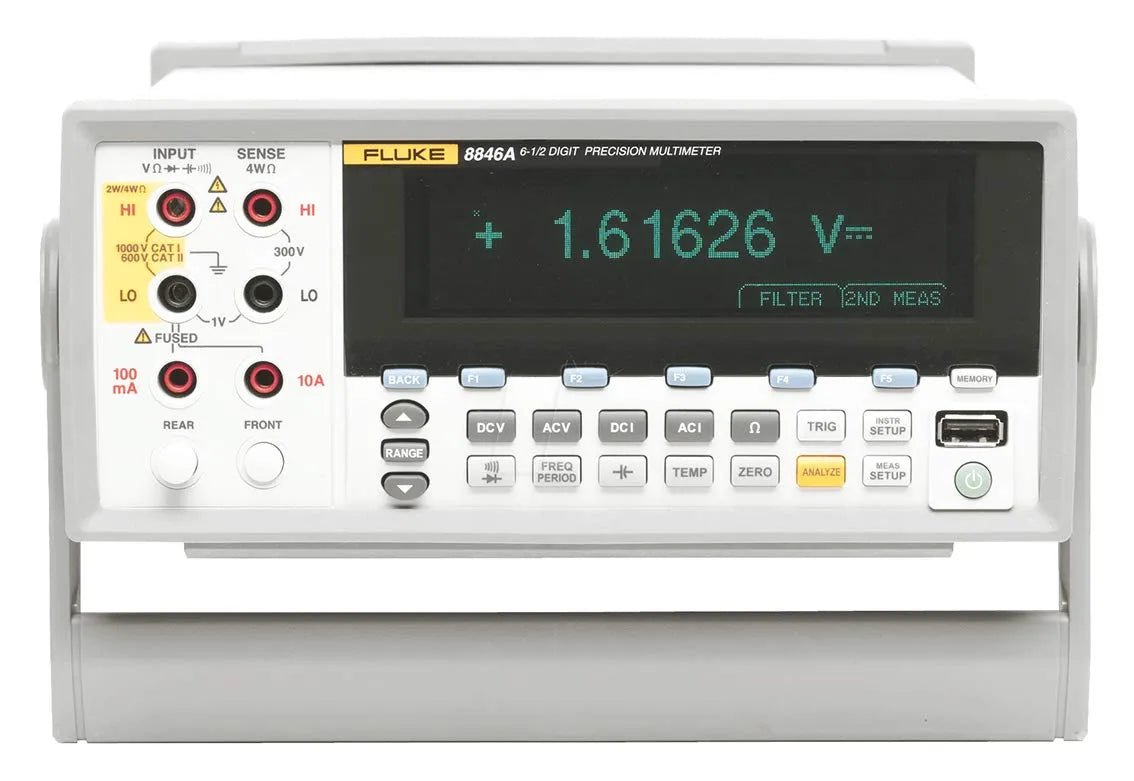

FLUKE 6.5 DIGIT PRECISION MULTIMETER | 8846A

The Fluke 8846A 6.5 Digit Precision Multimeter offers the precision and versatility required for the most demanding measurements, whether on the bench or integrated into a system. This high-performance multimeter measures volts, ohms, and amps with a basic DC voltage accuracy of up to 0.0024%. It also measures frequency and period, and includes functions of a counter, capacitance meter, and thermometer. Graphical display modes such as Trendplot™ paperless recorder mode, statistics, and histograms provide deeper insights into measurement data.
Key Features:
Specifications:
The Fluke 8846A 6.5 Digit Precision Multimeter offers the precision and versatility required for the most demanding measurements, whether on the bench or integrated into a system. This high-performance multimeter measures volts, ohms, and amps with a basic DC voltage accuracy of up to 0.0024%. It also measures frequency and period, and includes functions of a counter, capacitance meter, and thermometer. Graphical display modes such as Trendplot™ paperless recorder mode, statistics, and histograms provide deeper insights into measurement data.
Key Features:
Specifications:

• High Precision:6.5-digit resolution with basic DC voltage accuracy up to 0.0024%.
• Graphical Analysis:Features Trendplot™, statistics, and histogram modes for data analysis.
• Connectivity:Standard interfaces include RS-232, IEEE-488, and Ethernet for remote control and data transfer.
• Emulation Modes:Emulates Fluke 45 and Agilent 34401A commands for easy integration into existing systems.

Specification | Details
———————–
Display Resolution | 6.5 digits
DC Voltage Accuracy | Up to 0.0024%
Current Range | 100 µA to 10 A
Resistance Range | 100 ? to 100 M?
Capacitance Range | 1 pF to 100 mF
Temperature Range | -200°C to 600°C (using RTD)
Frequency Range | Up to 300 kHz

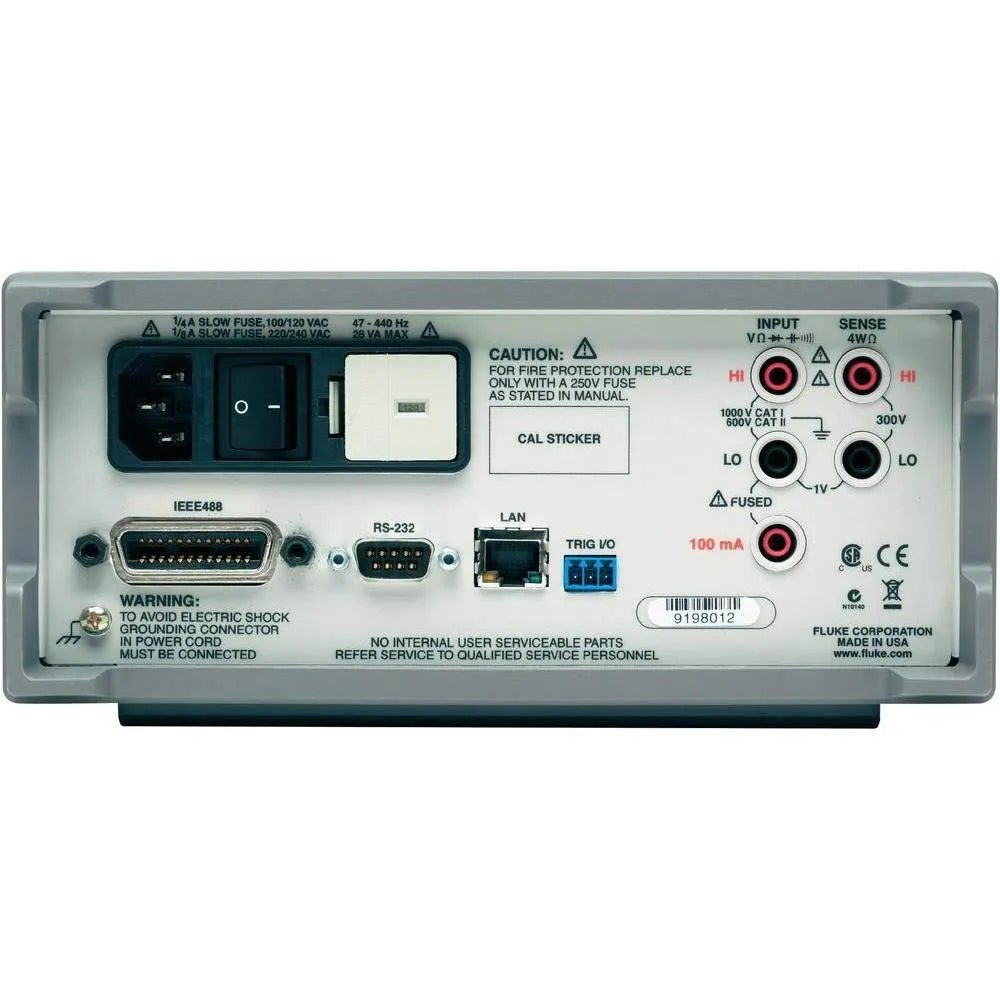

Interfaces | RS-232, IEEE-488, Ethernet
Dimensions | 88 mm (H) x 217 mm (W) x 297 mm (D)
Weight | 3.6 kg (8 lbs)
