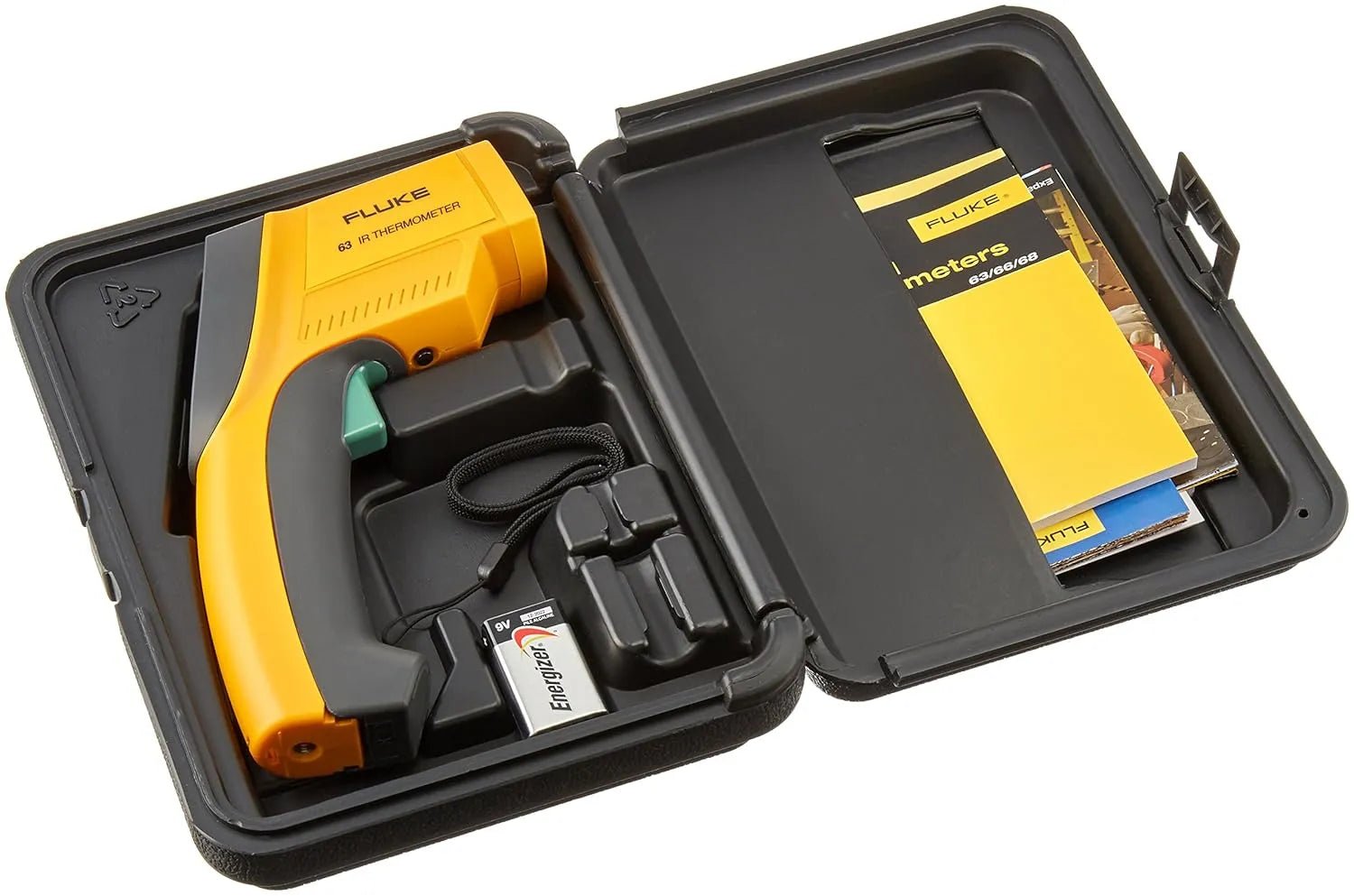

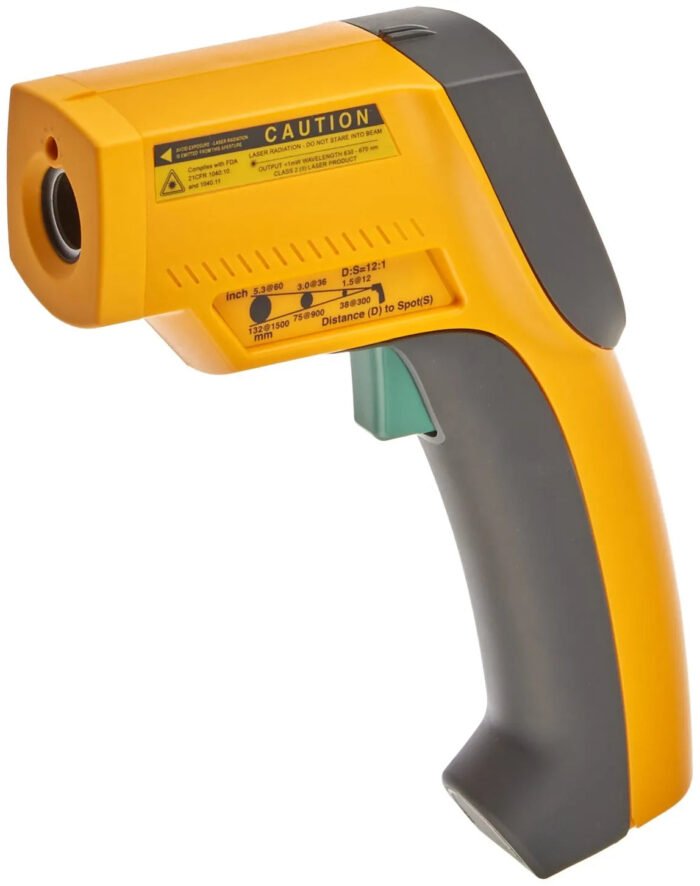

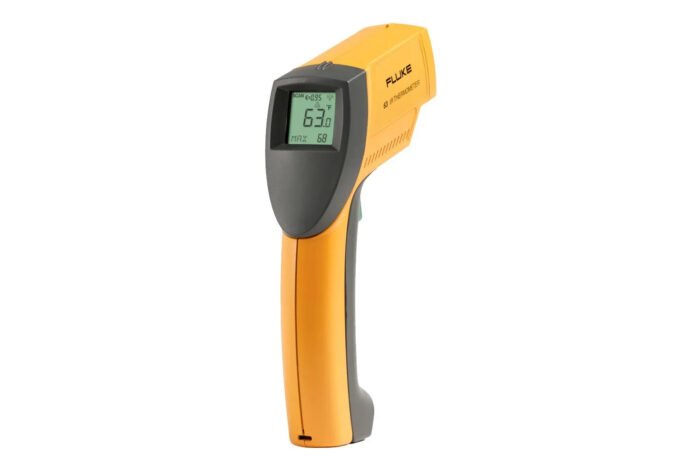

FLUKE 63 INFRARED THERMOMETER

The Fluke 63 Infrared Thermometer is a handheld, non-contact temperature measurement tool designed for professionals requiring quick and accurate readings. With a temperature range of -32°C to 535°C (-25°F to 999°F), it is suitable for monitoring electrical motors, inspecting electrical panels, troubleshooting heating and ventilation problems, and diagnosing automotive issues. The device features a 12:1 distance-to-spot ratio, allowing users to measure smaller targets from a safe distance. Enhanced optics ensure precise measurements in hard-to-reach or hazardous areas. The single-dot laser sighting system guides measurements to the correct target, and the backlit display provides clear temperature readings, including the maximum temperature recorded during a session. Its rugged design and ergonomic grip make it durable and easy to handle in various industrial environments.
Specifications:
Features:
Specifications:
Features:
Specifications:
Features:

• Non-Contact Measurement:Safely measure surface temperatures of hot, hazardous, or hard-to-reach objects without direct contact.
• High Accuracy and Repeatability:Provides reliable temperature readings with high accuracy (±1%) and repeatability (±0.5%).
• Laser Targeting:Single-dot laser sighting system for precise targeting and accurate measurements.
• Backlit Display:Easy-to-read backlit display allows for use in poorly lit areas.
• Durable Design:Rugged, ergonomic construction designed to withstand tough industrial environments.
• Max Temperature Display:Captures and displays the maximum temperature reading during a measurement session.
• Quick Response Time:Fast response time of ?0.5 seconds ensures efficient data collection.

Specification | Details
———————–
Temperature Range | -32°C to 535°C (-25°F to 999°F)
Accuracy | -32 to -26°C (-25 to -15°F): ±3°C (±5°F)-26 to -18°C (-15 to 0°F): ±2.5°C (±4°F)-18 to 23°C (0 to 73°F): ±2°C (±3°F)23 to 510°C (73 to 950°F): ±1% of reading or ±1°C (±2°F), whichever is greaterAbove 510°C (950°F): ±1.5% of reading
Repeatability | ±0.5% of reading or ±1°C (±2°F), whichever is greater
Response Time | ?0.5 seconds (95% of reading)
Spectral Response | 8 to 14 µm
Emissivity | Preset at 0.95
Distance-to-Spot Ratio | 12:1
Display Resolution | 0.2°C (0.5°F)
Power | 9V alkaline or NiCd battery
Battery Life | 10 hours with laser and backlight on; 40 hours with laser and backlight off
Dimensions | 200 x 160 x 55 mm (8 x 6 x 2 in)
Weight | 320 g (11 oz)
Operating Temperature | 0 to 50°C (32 to 120°F)
Storage Temperature | -20 to 60°C (-13 to 158°F) without battery
Relative Humidity | 10 to 90%
Display Hold | 7 seconds
Backlit Display | Yes
Laser Sighting | Single-dot laser
Max Temperature Display | Yes
Tripod Mount | Yes
