FLUKE PRESSURE MODULE 0 – 25 MBAR | 750P01

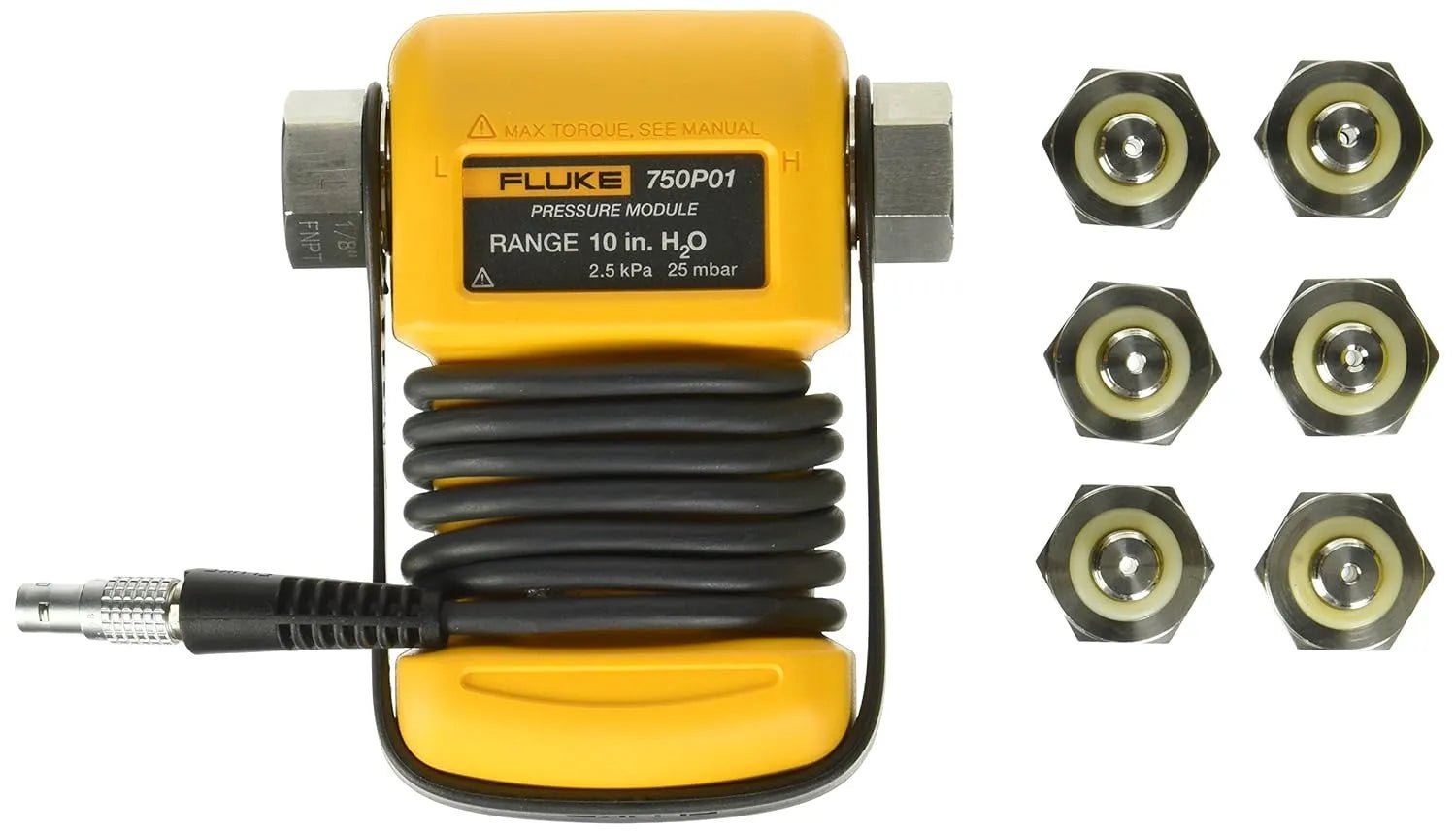

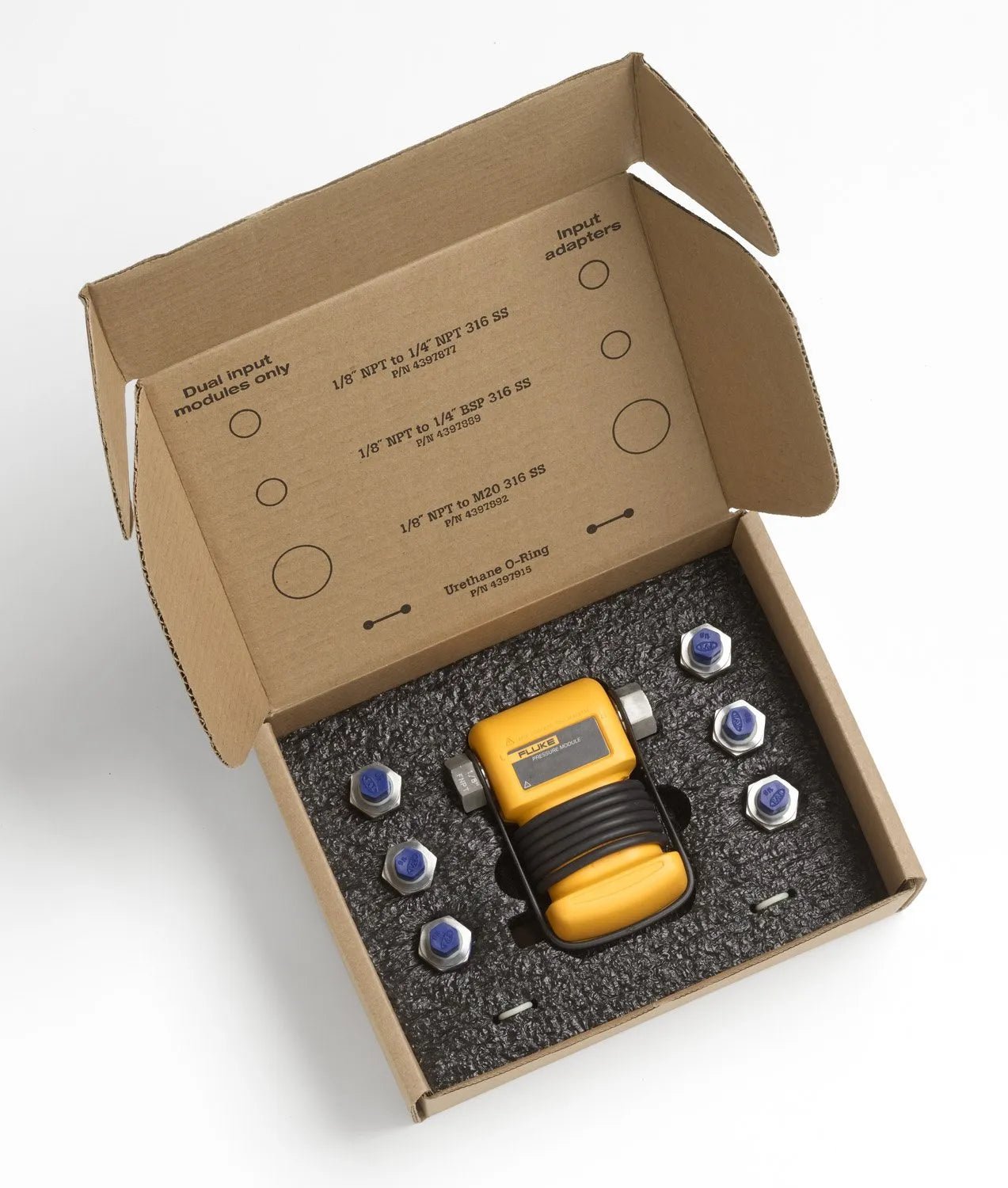

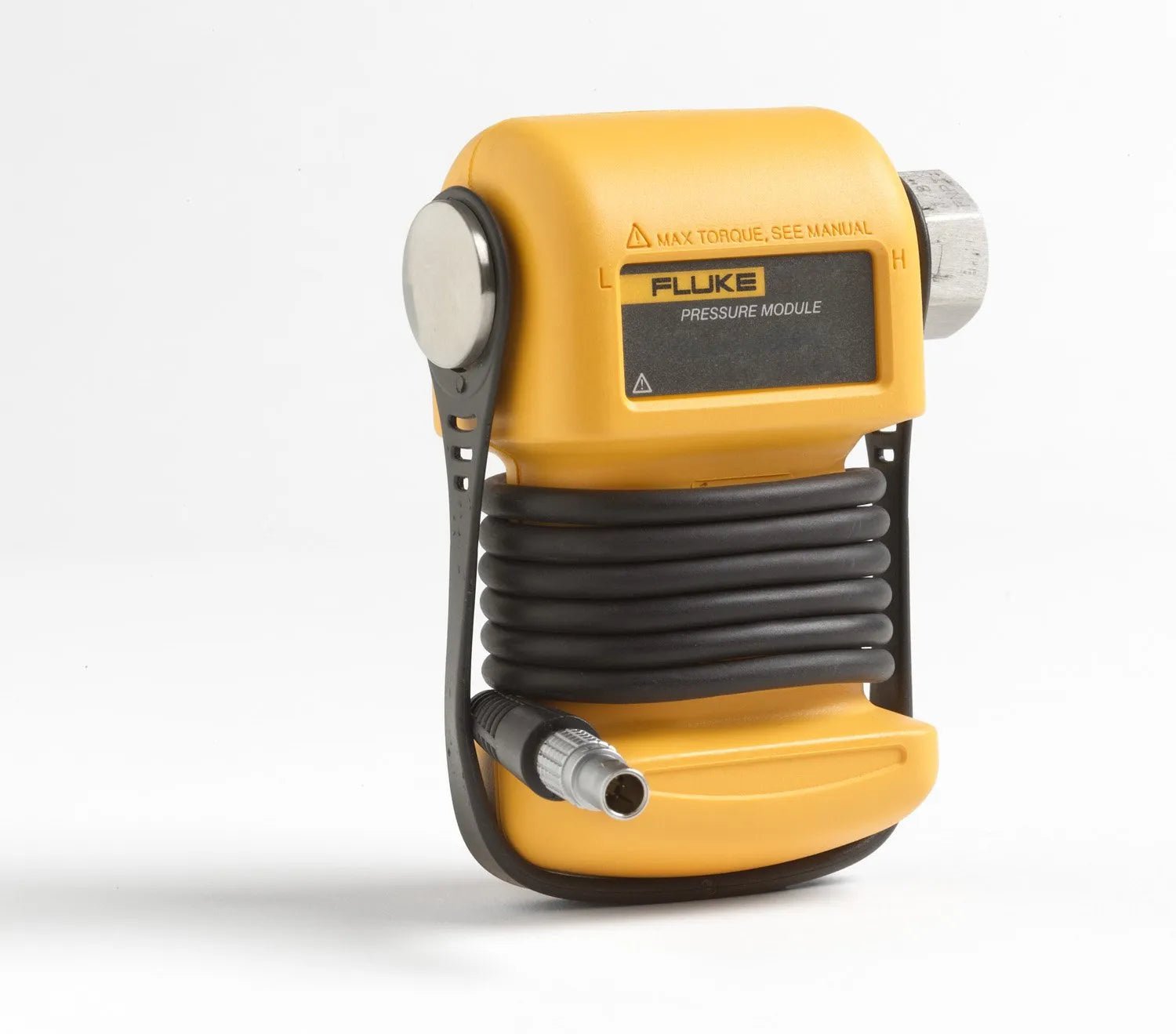

The Fluke 750P01 Pressure Module provides accurate differential pressure measurements within the range of 0 to 10 in H?O (0 to 25 mBar). Designed for use with Fluke 750 and 740 series calibrators, it reduces measurement errors through digital data transfer. The module is temperature compensated from 0°C to 50°C, ensuring consistent performance even in varying conditions. It features a rugged design suitable for industrial environments and includes adapters and a traceable calibration certificate.
Key Features:
Specifications:
The Fluke 750P01 Pressure Module provides accurate differential pressure measurements within the range of 0 to 10 in H?O (0 to 25 mBar). Designed for use with Fluke 750 and 740 series calibrators, it reduces measurement errors through digital data transfer. The module is temperature compensated from 0°C to 50°C, ensuring consistent performance even in varying conditions. It features a rugged design suitable for industrial environments and includes adapters and a traceable calibration certificate.

KEY FEATURES:
————-

SPECIFICATIONS:
—————

• Measurement Range:0 to 10 in H?O (0 to 25 mBar)
• High Accuracy:Reference uncertainty ±0.1%
• Temperature Compensated:Operates effectively from 0°C to 50°C
• Digital Communication:Reduces errors with direct data transfer to Fluke calibrators
• Durable Design:Built to withstand harsh industrial conditions

Specification | Details
———————–
Range | 0 to 10 in H?O (0 to 25 mBar)
Burst Rating | 3x maximum rated pressure
Hi Side Media | Dry Air
Lo Side Media | Dry Air
Reference Uncertainty | ±0.1%
Total Uncertainty (1-Year) | ±0.2% (15–35 °C)
Total Uncertainty (6-Month) | ±0.15% (15–35 °C)
Weight | 0.4 kg
