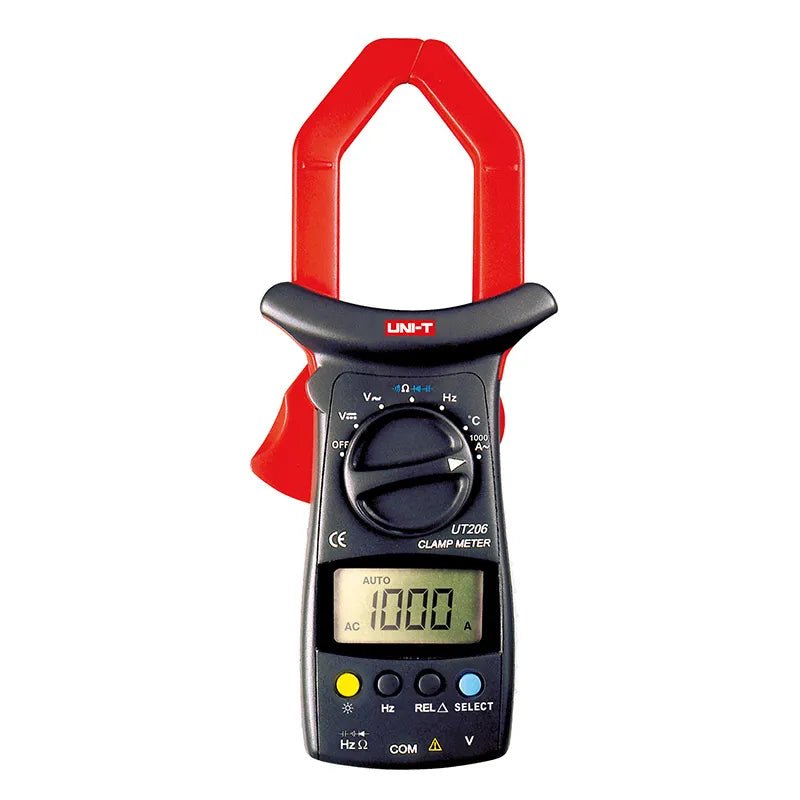

UNI-T 1000A DIGITAL CLAMP METER | UT206

The UNI-T UT206 Digital Clamp Meter is designed for accurate and reliable electrical measurements. It measure AC current up to 1000A, AC/DC voltage up to 600V, and resistance up to 40M?. It also includes temperature measurement from -40°C to 1000°C. This model feature a 4000-count display, auto-ranging, diode test, continuity buzzer, data hold, and a backlit LCD. The ergonomic design ensures comfortable handling, even with electrical gloves.
Specifications & Features:
The UNI-T UT206 Digital Clamp Meter is designed for accurate and reliable electrical measurements. It measure AC current up to 1000A, AC/DC voltage up to 600V, and resistance up to 40M?. It also includes temperature measurement from -40°C to 1000°C. This model feature a 4000-count display, auto-ranging, diode test, continuity buzzer, data hold, and a backlit LCD. The ergonomic design ensures comfortable handling, even with electrical gloves.

SPECIFICATIONS & FEATURES:
————————–

• AC Current:1000A ±(1.5%+5)
• AC Voltage:600V ±(1.2%+5)
• DC Voltage:600V ±(0.8%+1)
• Resistance:40M? ±(1%+2)
• Frequency:10Hz~10MHz ±(0.1%+3)
• Temperature:-40°C~1000°C ±(2%+8)
• Display Count:4000
• Auto Range:Yes
• Jaw Opening:40mm
• Diode Test:Yes
• Continuity Buzzer:Yes
• Data Hold:Yes
• LCD Backlight:Yes
• Auto Power Off:Yes
• Low Battery Indication:Yes
• Input Impedance for DCV:Around 10M?
• Power:9V battery (6F22)
• Weight:350g
• Dimensions:236mm x 97mm x 40mm
• Certifications:CE, RoHS
