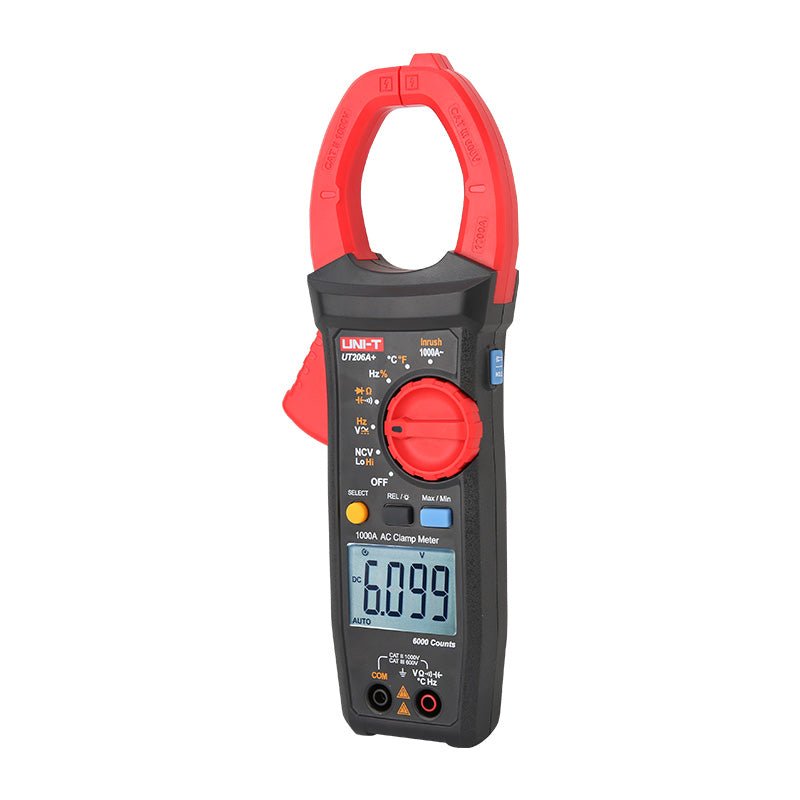

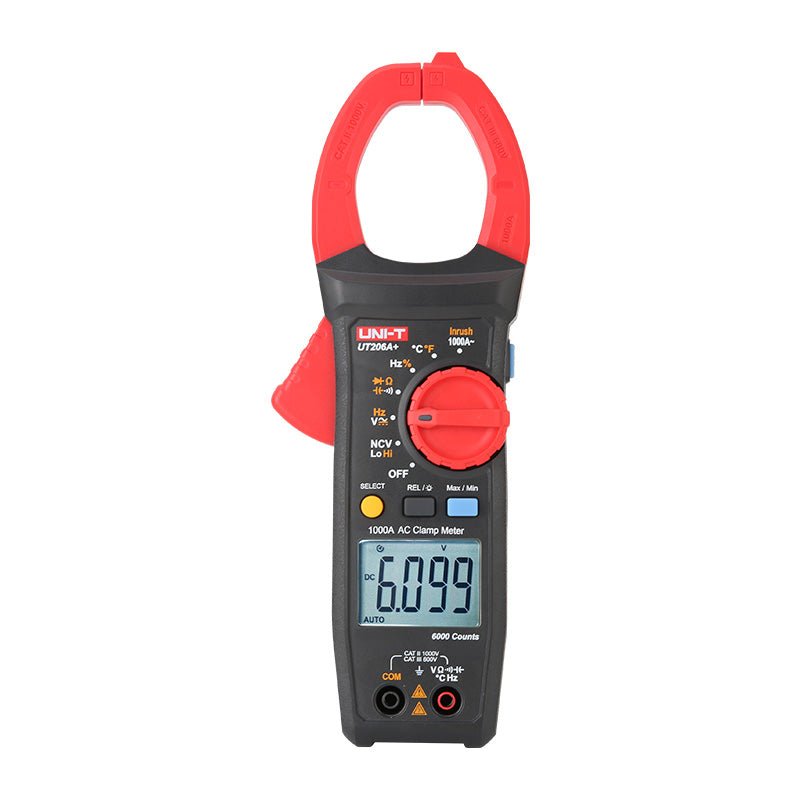

UNI-T 1000A DIGITAL CLAMP METER | UT206A+

The UNI-T UT206A+ digital clamp meter are designed for accurate AC current measurement up to 1000A and AC/DC voltage up to 1000V. This model include features such as inrush current measurement, True RMS, NCV detection, and temperature measurement. It offer a 45mm jaw opening, resistance/capacitance/frequency measurement, and a 6099 count display. Ideal for both professional and home use, this meter ensure reliable performance with additional functions like data hold, backlight, and auto power off.
Specifications & Features:
The UNI-T UT206A+ digital clamp meter are designed for accurate AC current measurement up to 1000A and AC/DC voltage up to 1000V. This model include features such as inrush current measurement, True RMS, NCV detection, and temperature measurement. It offer a 45mm jaw opening, resistance/capacitance/frequency measurement, and a 6099 count display. Ideal for both professional and home use, this meter ensure reliable performance with additional functions like data hold, backlight, and auto power off.

SPECIFICATIONS & FEATURES:
————————–

• AC Current:1000A ±(1.5%+5)
• Inrush Current:600A ±(5%+10)
• AC Voltage:1000V ±(1.0%+2)
• DC Voltage:1000V ±(0.7%+3)
• Resistance:Up to 60M? ±(0.8%+2)
• Capacitance:Up to 60mF ±(4%+5)
• Frequency:10Hz~10MHz ±(0.1%+4)
• Temperature:-40°C~1000°C
• Display Count:6099
• Auto Range:Yes
• NCV Detection:Yes
• Jaw Opening:45mm
• Data Hold:Yes
• Backlight:Yes
• Flashlight:Yes
• Auto Power Off:Approximately 15 minutes
• Safety Rating:CAT II 1000V/CAT III 600V
• Power:2 x 1.5V AAA batteries
• Weight:248g
• Dimensions:242mm x 76.5mm x 52mm
