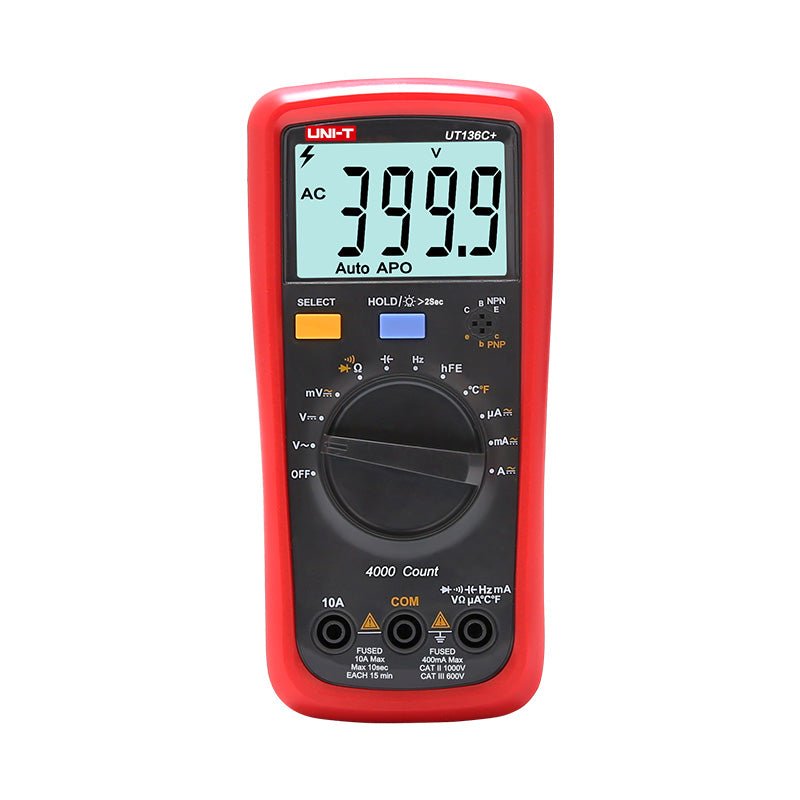

UNI-T DIGITAL MULTIMETER | UT136C+

The UNI-T UT136C+ Digital Multimeter is designed for durability and accuracy, featuring measurements up to 1000V and 10A for both AC and DC. This multimeter has a large LCD display with a quick sampling rate of 4 times per second, ensuring accurate readings. Equipped with overload alarms and low power consumption, the multimeter is built for safe operation in CAT II 1000V/CAT III 600V environments.
Specifications & Features:
The UNI-T UT136C+ Digital Multimeter is designed for durability and accuracy, featuring measurements up to 1000V and 10A for both AC and DC. This multimeter has a large LCD display with a quick sampling rate of 4 times per second, ensuring accurate readings. Equipped with overload alarms and low power consumption, the multimeter is built for safe operation in CAT II 1000V/CAT III 600V environments.

SPECIFICATIONS & FEATURES:
————————–

• DC Voltage:Up to 1000V ±(0.7%+3)
• AC Voltage:Up to 1000V ±(1%+3)
• DC Current:Up to 10A ±(1%+3)
• AC Current:Up to 10A ±(1.2%+5)
• Resistance:Up to 40M? ±(0.8%+2)
• Capacitance:Up to 40mF ±(3%+5)
• Frequency:400Hz~40mHz ±(0.1%+4)
• Display Count:4000
• Temperature:-40~1000? ±(1%+4)
• hFE Transistor Measurement:Yes
• Diode/Transistor Test:Yes
• Continuity Buzzer:Yes
• Data Hold/Auto Power Off:Yes
• Low Battery Indication:Yes
• LCD Backlight:Yes
• Safety Rating:CAT II 1000V, CAT III 600V
• Drop Test:2m
• Power:1.5V battery (R6) x 2
• Weight:330g
• Dimensions:175mm x 83mm x 53mm
