UNI-T DIGITAL POWER CLAMP METER | UT233

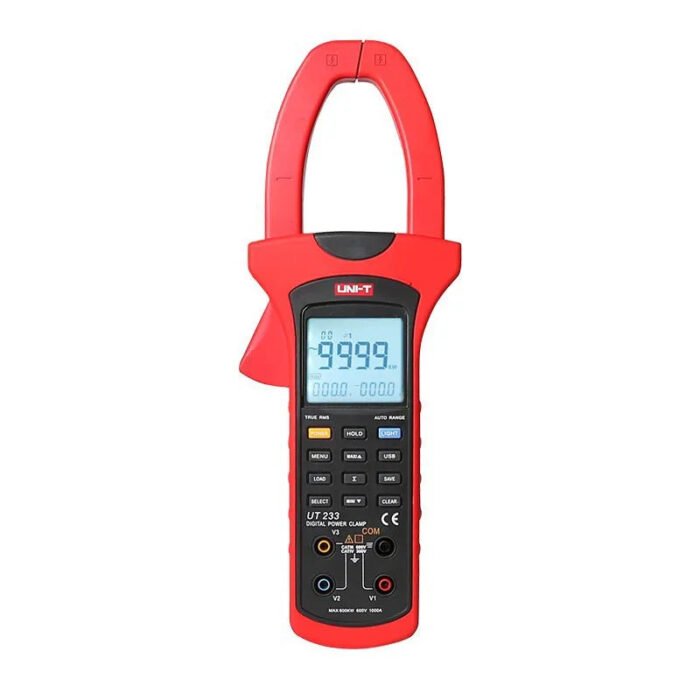

The UNI-T UT233 Digital Power Clamp Meter is a sophisticated, handheld device designed for precise power and harmonics measurement. This versatile meter combines the functionalities of a digital ammeter and power meter, making it perfect for both professional and industrial use. With the ability to measure AC current up to 1000A, AC voltage up to 600V, and active power up to 600kW, it provides comprehensive data for single-phase, three-phase three-wire, and three-phase four-wire systems. The UT233 offers true RMS voltage and current measurements, ensuring accurate readings even in distorted waveforms. Its features include 999-group data storage, auto-ranging, backlight display, low battery indication, and a USB interface for data transfer. The meter also supports adjustable sampling rates, max/min modes, and phase sequence testing, making it an essential tool for electrical diagnostics and troubleshooting.
Specifications & Features:
The UNI-T UT233 Digital Power Clamp Meter is a sophisticated, handheld device designed for precise power and harmonics measurement. This versatile meter combines the functionalities of a digital ammeter and power meter, making it perfect for both professional and industrial use. With the ability to measure AC current up to 1000A, AC voltage up to 600V, and active power up to 600kW, it provides comprehensive data for single-phase, three-phase three-wire, and three-phase four-wire systems. The UT233 offers true RMS voltage and current measurements, ensuring accurate readings even in distorted waveforms. Its features include 999-group data storage, auto-ranging, backlight display, low battery indication, and a USB interface for data transfer. The meter also supports adjustable sampling rates, max/min modes, and phase sequence testing, making it an essential tool for electrical diagnostics and troubleshooting.

SPECIFICATIONS & FEATURES:
————————–

• Material:High-quality, durable materials
• AC Current Range:1000A ±(2%+5)
• AC Voltage Range:600V ±(1.2%+5)
• Active Power Range:0.01kW~600kW ±(3%+5)
• Apparent Power Range:0.01kVA~600kVA ±(3%+5)
• Reactive Power Range:0.01kVAr~600kVAr ±(4%+5)
• Power Factor Range:0.3~1 ±0.022
• Phase Angle Range:0°~360° ±1°
• Data Storage:99 groups
• Display Count:10000
• Jaw Opening:50mm
• Power:1.5V battery (R6) x 4
• Dimensions:303mm x 112mm x 39mm
• Weight:601g
• Standard Accessories:Batteries, test leads, alligator clips, USB interface cable, PC software CD
