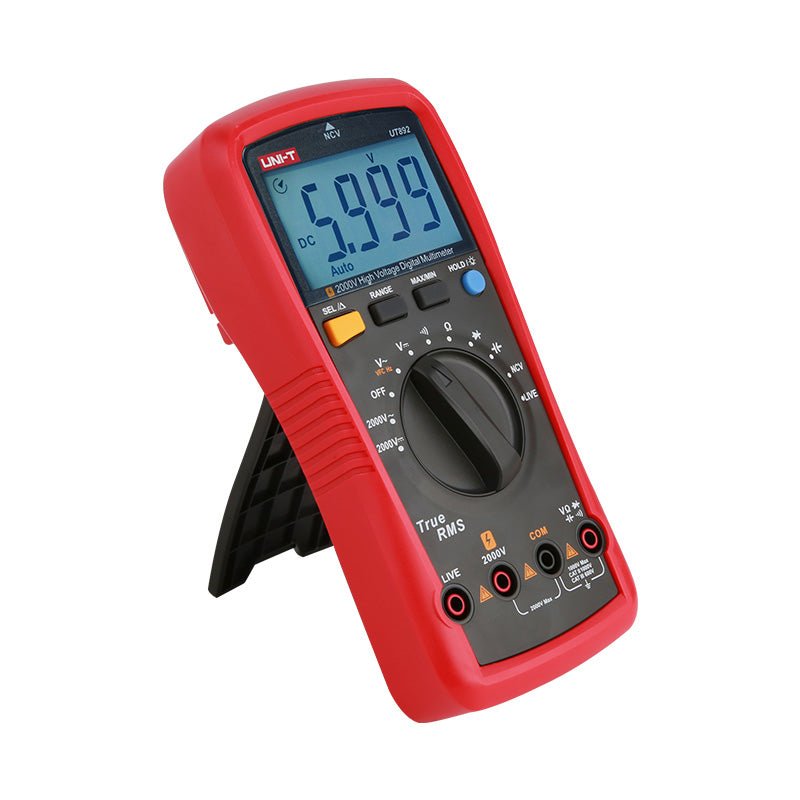

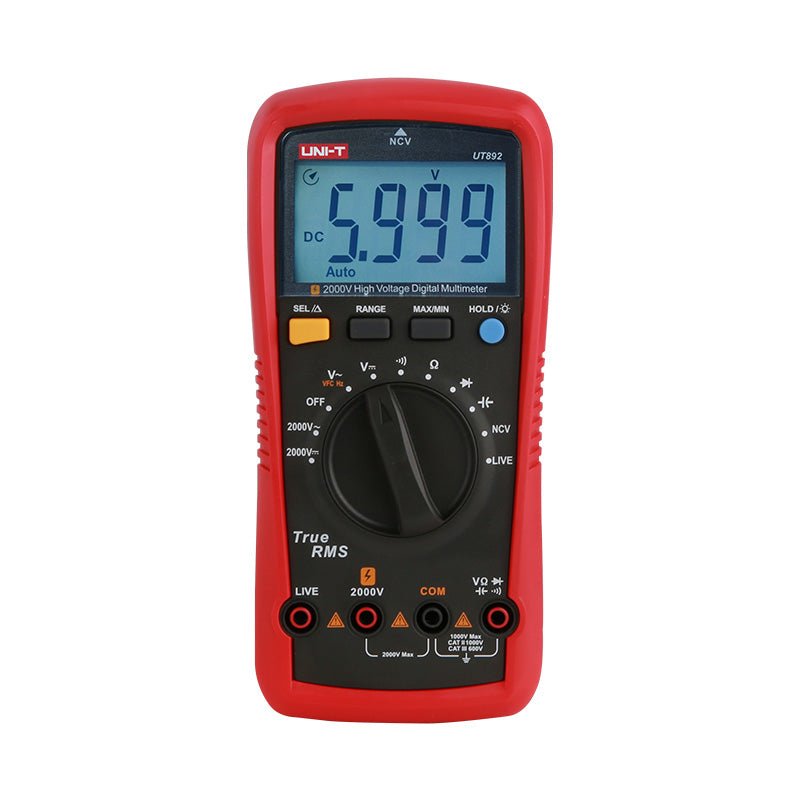

UNI-T HIGH VOLTAGE DIGITAL MULTIMETER | UT892

The UNI-T UT892 High Voltage Digital Multimeter is designed for precise measurements of high voltage AC/DC up to 2000V. It includes features such as VFC mode for variable frequency drives, non-contact voltage (NCV) detection, and a LIVE test function to identify live wires. The multimeter also offers resistance, capacitance, and frequency measurements. With a 6000-count display, auto/manual range, data hold, and backlight, the UT892 ensures safety and efficiency in high voltage environments.
Specifications & Features:
The UNI-T UT892 High Voltage Digital Multimeter is designed for precise measurements of high voltage AC/DC up to 2000V. It includes features such as VFC mode for variable frequency drives, non-contact voltage (NCV) detection, and a LIVE test function to identify live wires. The multimeter also offers resistance, capacitance, and frequency measurements. With a 6000-count display, auto/manual range, data hold, and backlight, the UT892 ensures safety and efficiency in high voltage environments.

SPECIFICATIONS & FEATURES:
————————–

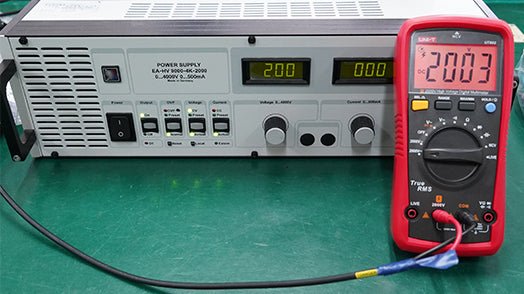

• DC Voltage:6.000V/60.00V/600.0V/1000V/2000V ±(0.5%+3)
• AC Voltage:6.000V/60.00V/600.0V/1000V/2000V ±(1.0%+3)
• VFC Voltage:600V ±(5%)

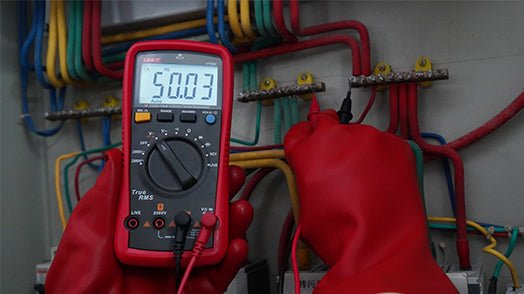

• Frequency:10Hz~10kHz ±(0.5%+2)

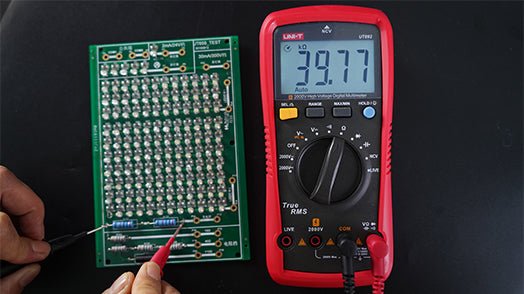

• Resistance:600.0?/6.000k?/60.00k?/6.000M?/60.00M? ±(0.5%+5)
• Capacitance:60.00nF/600.0nF~600.0?F/6000?F/60mF ±(3.0%+10)
• Display Count:6000
• NCV Detection:Yes
• LIVE Test:Yes
• Diode/Continuity Test:Yes
• Auto Power Off:Approximately 15 minutes
• Backlight:Yes
• Safety Rating:CAT II 1000V, CAT III 600V
• Power:AA 1.5V x 2
• Weight:350g
• Dimensions:187mm x 88mm x 56mm
• Certifications:CE, UKCA
