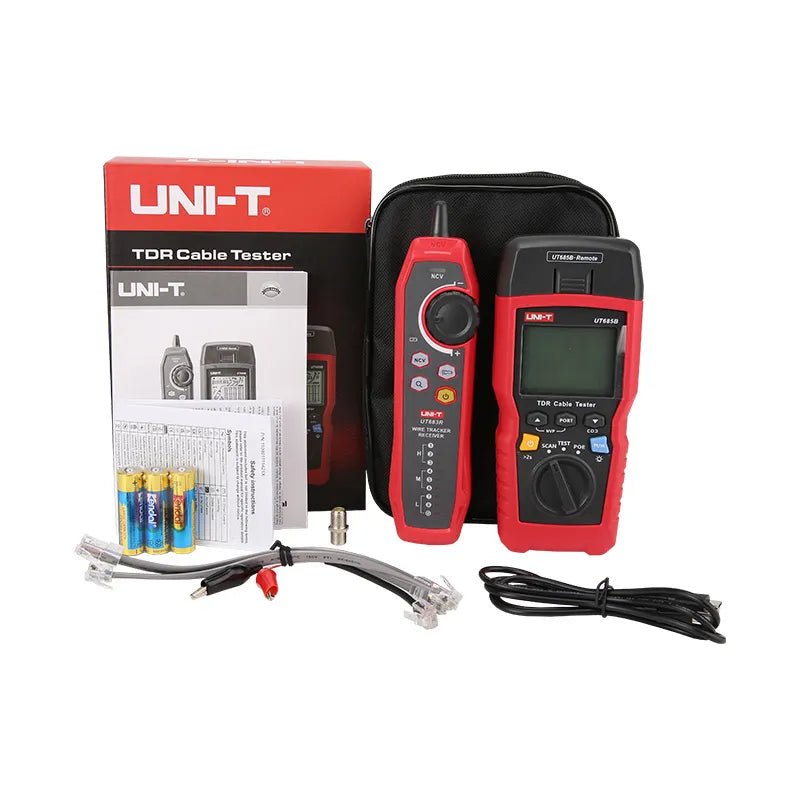

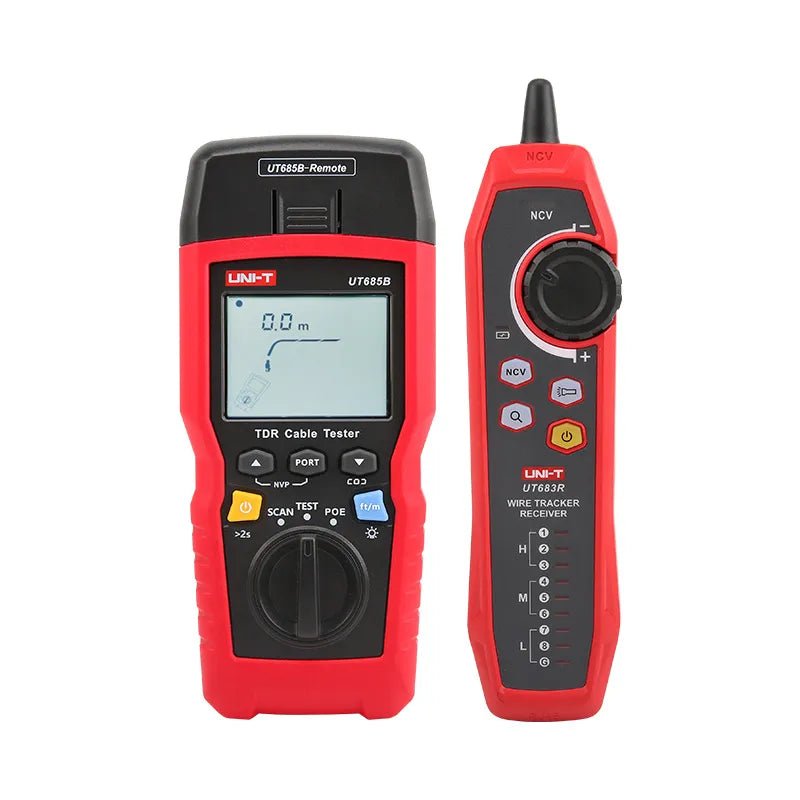

UNI-T KIT TDR CABLE TESTER | UT685B

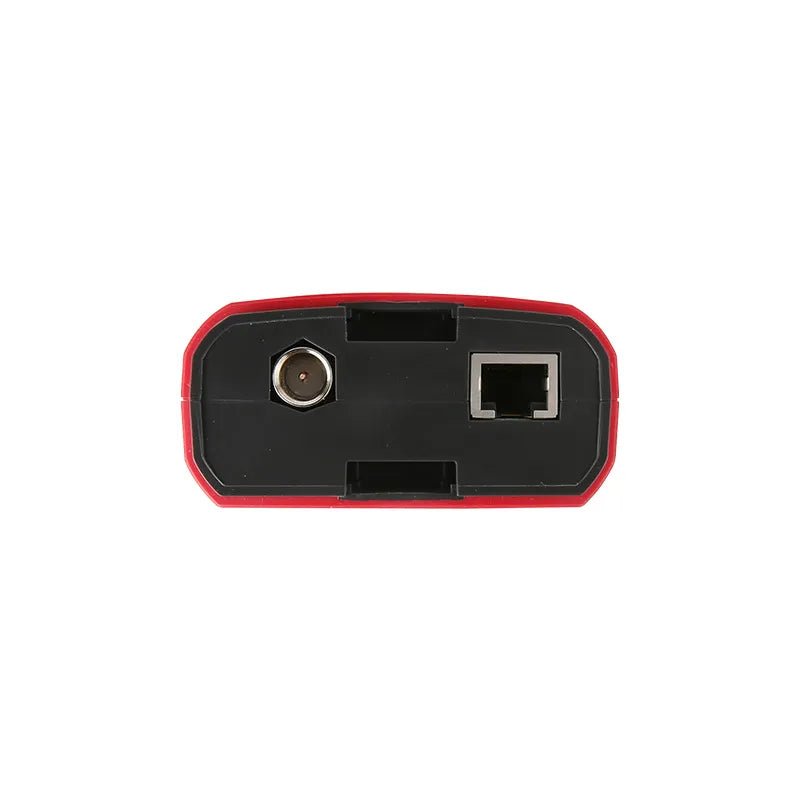

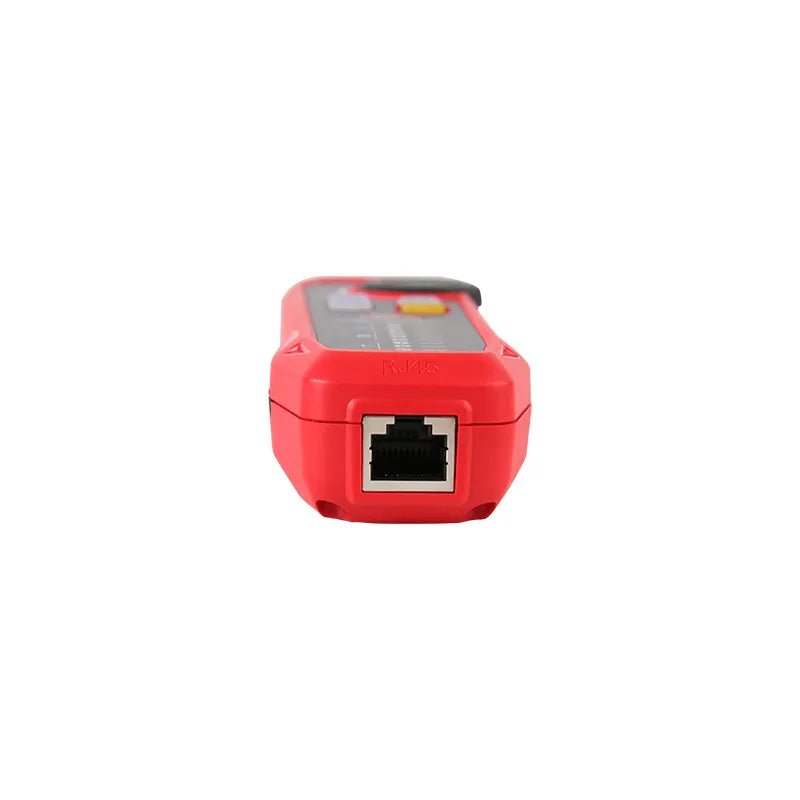

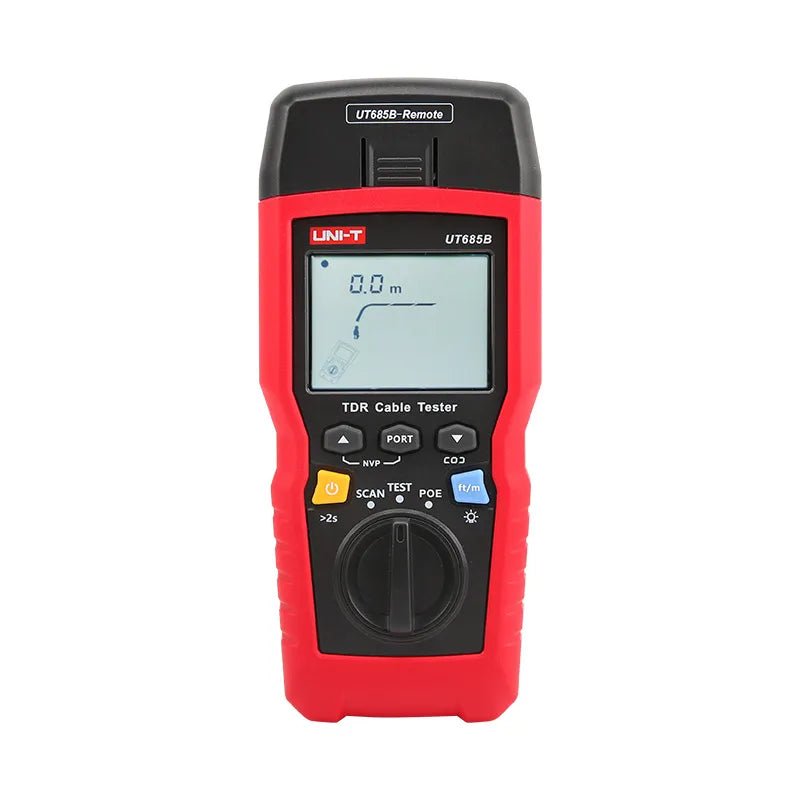

The UNI-T UT685B KIT TDR Cable Tester is an advanced tool engineered to test and diagnose various low-voltage cables, including twisted pair, coaxial, and POE network cables. Equipped with a 2.8-inch backlit LCD and intuitive graphical interface, it allows for precise cable length measurement and fault detection with a range of up to 500 meters and a resolution of 0.33 meters. This tester supports multiple cable types through RJ11, RJ45, and coaxial test ports, eliminating the need for adapters. It also identifies POE standards (802.3AF/AT), making it indispensable for network installations. Designed with TDR technology, the UT685B KIT ensures no blind spot testing, improving reliability and efficiency.
Specifications & Features:
The UNI-T UT685B KIT TDR Cable Tester is an advanced tool engineered to test and diagnose various low-voltage cables, including twisted pair, coaxial, and POE network cables. Equipped with a 2.8-inch backlit LCD and intuitive graphical interface, it allows for precise cable length measurement and fault detection with a range of up to 500 meters and a resolution of 0.33 meters. This tester supports multiple cable types through RJ11, RJ45, and coaxial test ports, eliminating the need for adapters. It also identifies POE standards (802.3AF/AT), making it indispensable for network installations. Designed with TDR technology, the UT685B KIT ensures no blind spot testing, improving reliability and efficiency.
SPECIFICATIONS & FEATURES:
————————–
• Cable Types:UTP, FTP, SSTP, Coaxial
• Length Range:Up to 500m
• Resolution:0.33m
• Accuracy:± 4% or 0.6m
• POE Standards:802.3AF, 802.3AT
• Input Protection:70V DC
• Display:2.8” backlit LCD
• Power Supply:4x AAA batteries
• Dimensions:180mm x 84mm x 37.8mm
