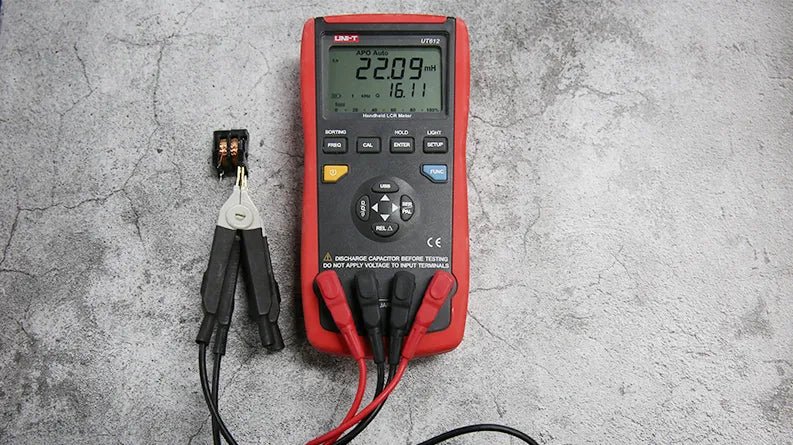

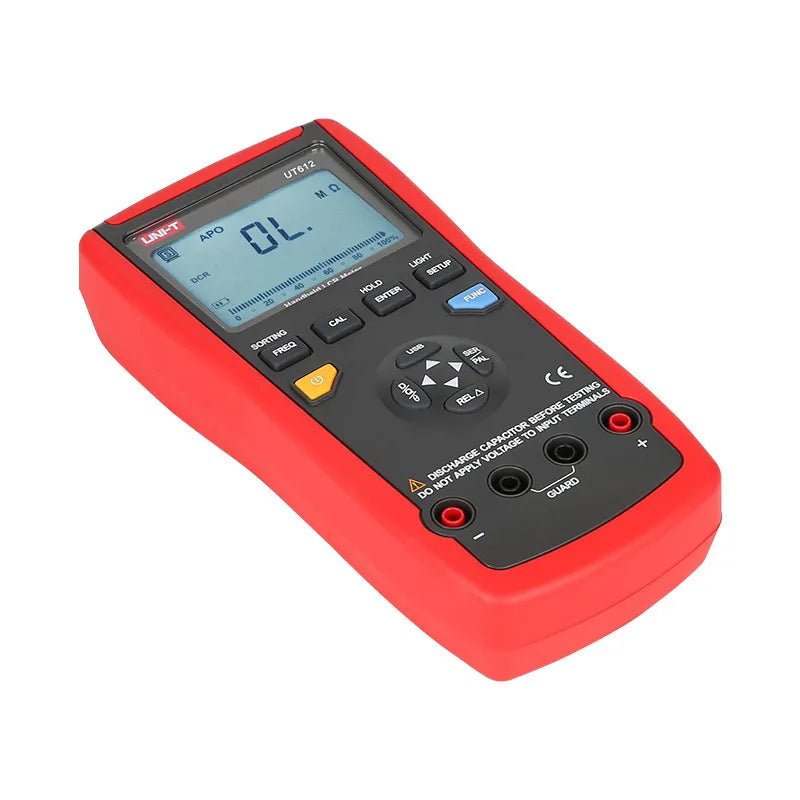

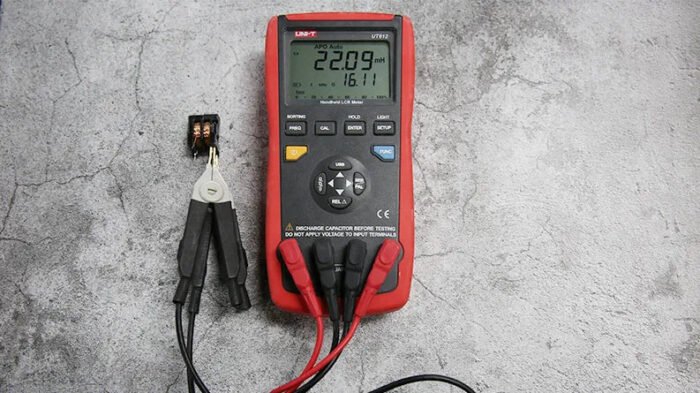

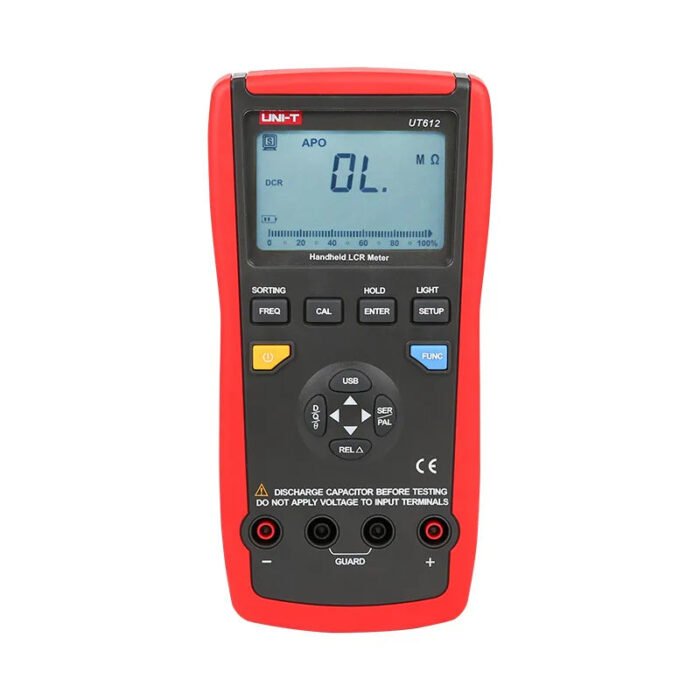

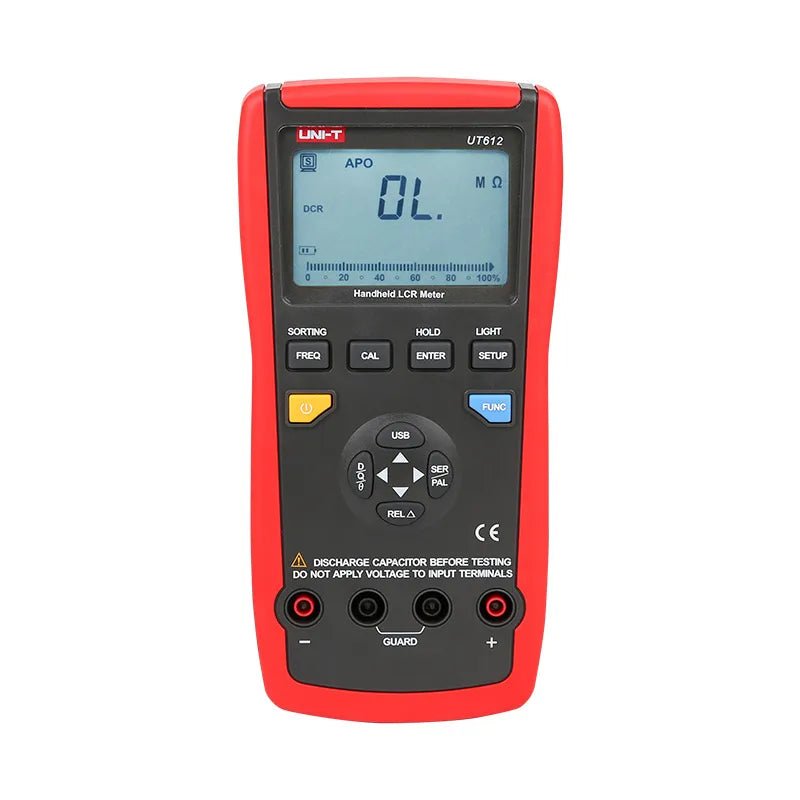

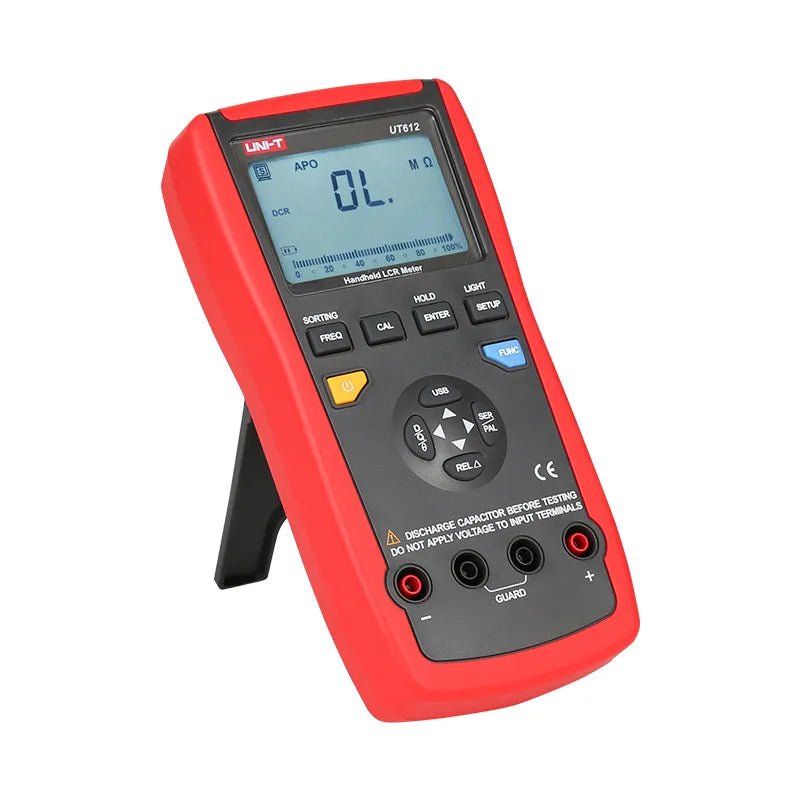

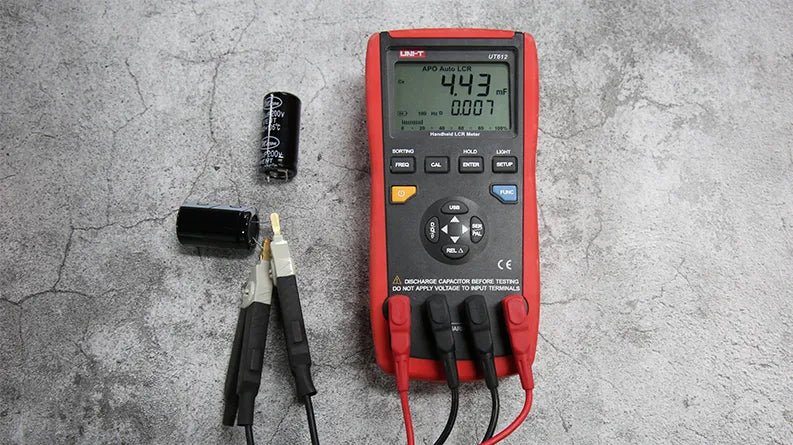

The Uni-Trend UT612 LCR Meter is a versatile tool designed for accurate measurements of inductance, capacitance, and resistance. It is equipped with advanced functionalities like series and parallel measurement modes, quality factor (Q), loss factor (D), and phase angle (?) measurements. The meter supports multiple selectable frequencies (up to 100 kHz) and features auto LCR check, data hold, and a USB interface for easy data management. Its compact design includes an LCD backlight and analog bar graph for enhanced readability. Suitable for production lines, component inspection, and electronic maintenance, the UT612 is a reliable choice for professionals.
Specifications & Features
:
The Uni-Trend UT612 LCR Meter is a versatile tool designed for accurate measurements of inductance, capacitance, and resistance. It is equipped with advanced functionalities like series and parallel measurement modes, quality factor (Q), loss factor (D), and phase angle (?) measurements. The meter supports multiple selectable frequencies (up to 100 kHz) and features auto LCR check, data hold, and a USB interface for easy data management. Its compact design includes an LCD backlight and analog bar graph for enhanced readability. Suitable for production lines, component inspection, and electronic maintenance, the UT612 is a reliable choice for professionals.
SPECIFICATIONS & FEATURES
:
—————————
• Inductance Range: 20uH to 2000H
• Capacitance Range: 200pF to 20mF
• Resistance Range: 20? to 200M?
• Test Frequencies: 100Hz, 120Hz, 1kHz, 10kHz, 100kHz
• Measurement Modes: Series/Parallel
• Display Count: 20,000
• Auto Power Off & Low Battery Indication: ?6.8V
• USB Interface: Data records up to 60,000
• Power Source: 9V battery or USB
• Size & Weight: 96mm x 193mm x 47mm, 374g
