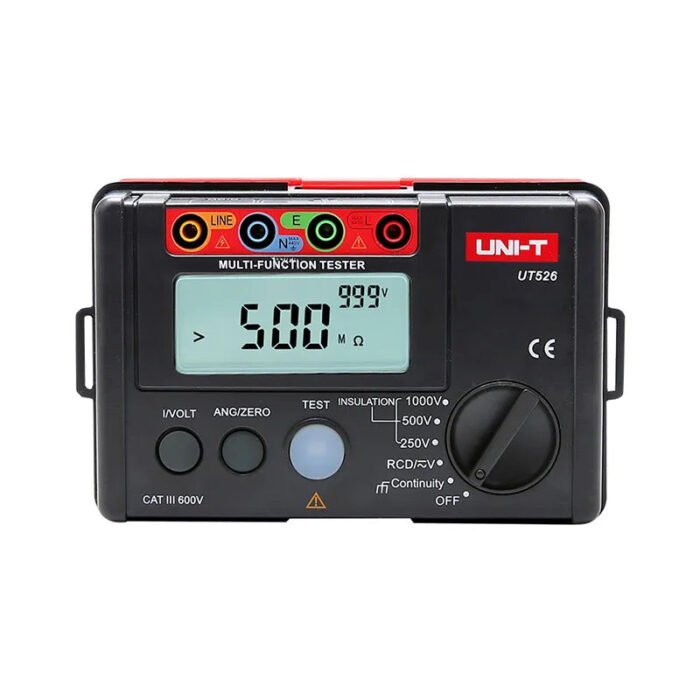

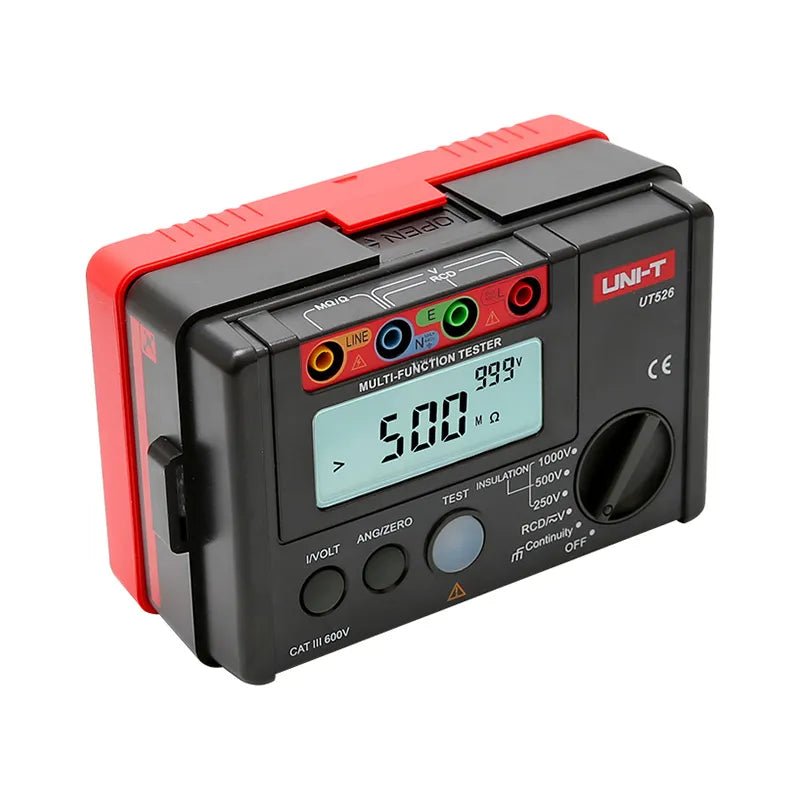

UNI-T MULTIFUNCTION ELECTRIC METER 1KV INSULATION TESTER + RCD | UT526
The UNI-T UT526 Multifunction Electrical Meter is a comprehensive tool for testing electrical installations. It supports insulation resistance testing with selectable voltages (250V, 500V, 1000V), RCD testing, low resistance continuity, and both AC/DC voltage measurements. Designed for power distribution and lightning protection systems, it features a 10,000 count display, phase switching for RCD tests, low battery indication, and automatic voltage detection. Lightweight and portable, it is suitable for both fieldwork and lab use.
Specifications & Features:
The UNI-T UT526 Multifunction Electrical Meter is a comprehensive tool for testing electrical installations. It supports insulation resistance testing with selectable voltages (250V, 500V, 1000V), RCD testing, low resistance continuity, and both AC/DC voltage measurements. Designed for power distribution and lightning protection systems, it features a 10,000 count display, phase switching for RCD tests, low battery indication, and automatic voltage detection. Lightweight and portable, it is suitable for both fieldwork and lab use.
SPECIFICATIONS & FEATURES:
————————–
• Insulation Resistance:0.05M? to 500M?
• Test Voltages:250V, 500V, 1000V
• RCD Test Current:10mA to 300mA
• Continuity Test Range:0? to 2000?
• Voltage Measurement:Up to 440V AC/DC
• Display:10,000 count
• Safety:Double insulation, red warning lights
• Power Supply:6 x 1.5V batteries (LR6)
• Accessories:Test leads, carrying bag, batteries
