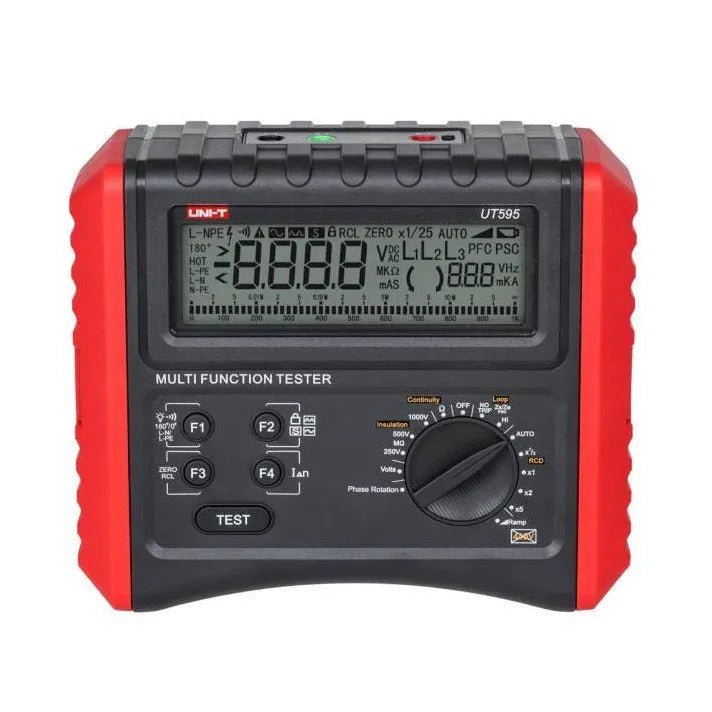

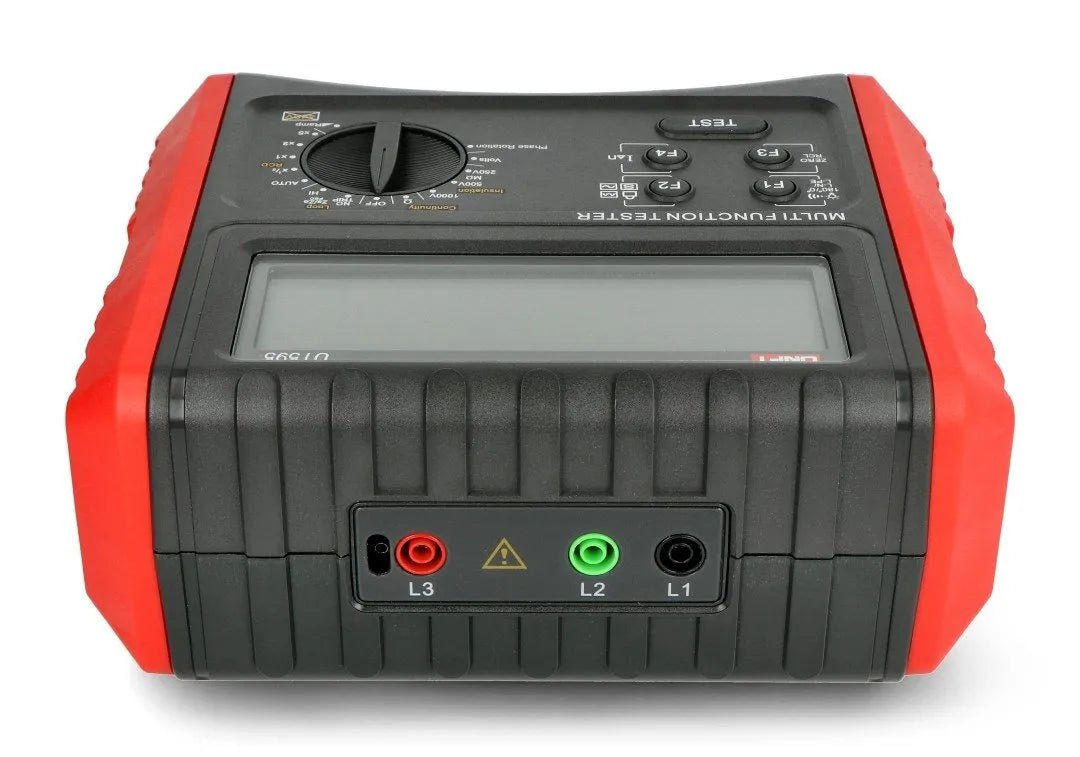

UNI-T MULTIFUNCTION METER FOR ELECTRICAL INSTALLATIONS | UT595

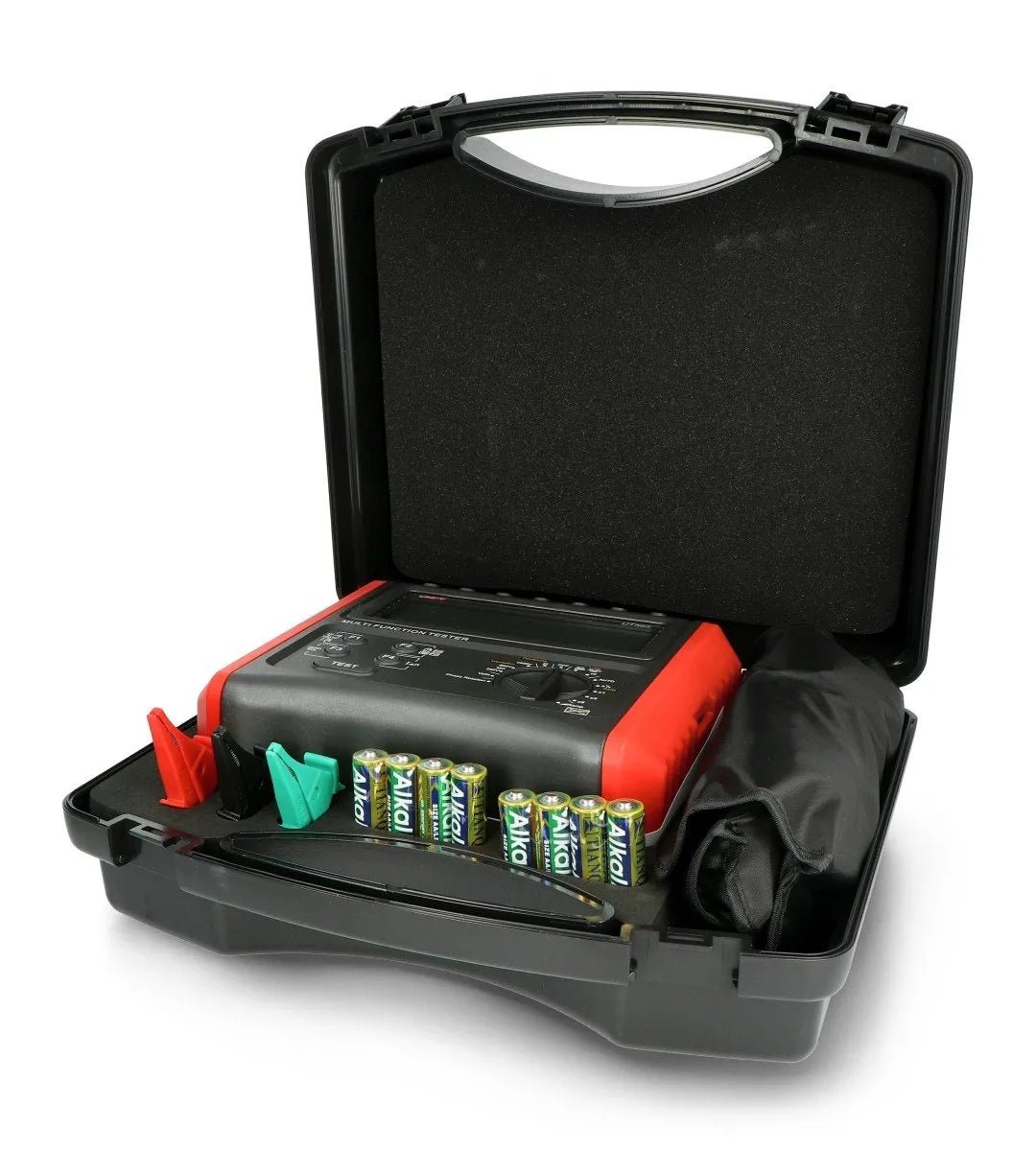

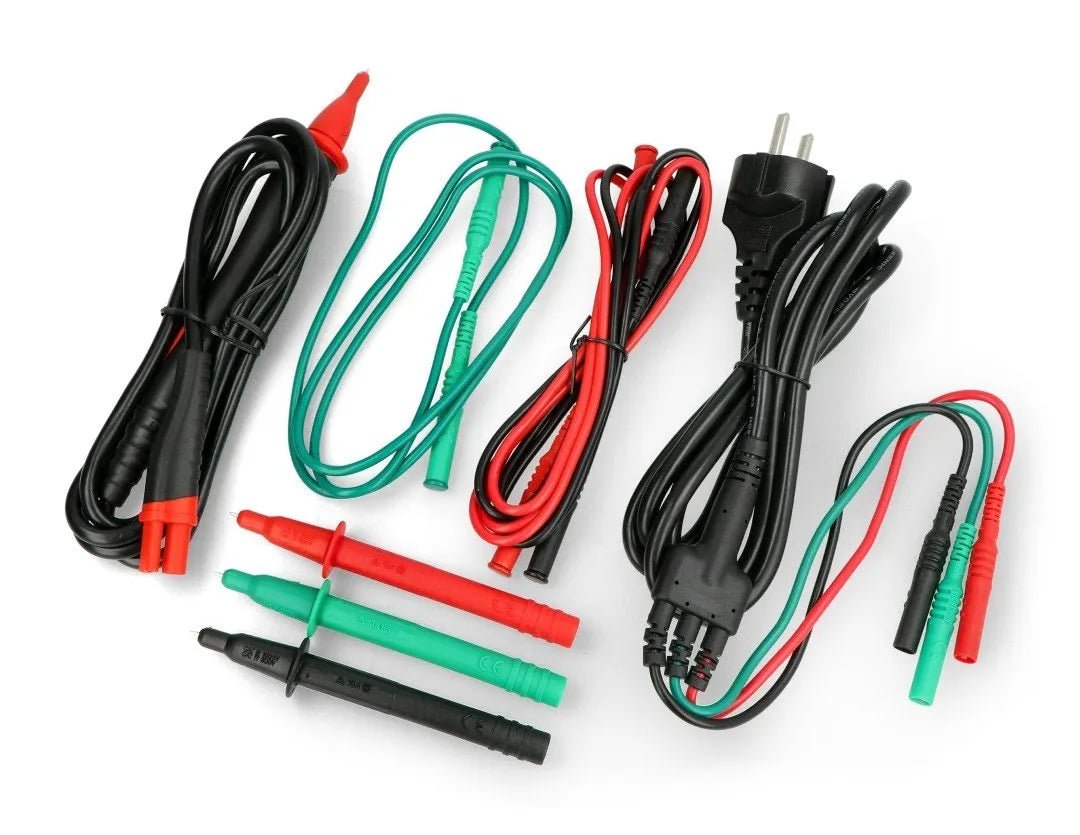

The UNI-T UT-595 Multifunction Meter is a reliable tool designed for electricians to ensure the safety and functionality of electrical installations. It offers a wide range of measurements, including insulation resistance at multiple voltages, short circuit loop impedance, line impedance, and continuity of conductors. The device also tests RCD trip currents and times, AC/DC voltage, and phase sequence. With a large, backlit LCD display and features like automatic power-off and a low battery indicator, it ensures both ease of use and safety. The robust construction and included accessories, such as a carrying case and test leads, make it a durable choice for field use.
Specifications & Features:
The UNI-T UT-595 Multifunction Meter is a reliable tool designed for electricians to ensure the safety and functionality of electrical installations. It offers a wide range of measurements, including insulation resistance at multiple voltages, short circuit loop impedance, line impedance, and continuity of conductors. The device also tests RCD trip currents and times, AC/DC voltage, and phase sequence. With a large, backlit LCD display and features like automatic power-off and a low battery indicator, it ensures both ease of use and safety. The robust construction and included accessories, such as a carrying case and test leads, make it a durable choice for field use.

SPECIFICATIONS & FEATURES:
————————–

• Resistance Measurement:0.05 M? to 1000 M? at 250V, 500V, and 1000V.
• AC/DC Voltage Measurement:Up to 440V with ±2% accuracy.
• RCD Testing:Trip current and time tests for various currents (10mA to 500mA).
• Phase Sequence Test:100V to 440V / 45Hz to 65Hz.
• Continuity Measurement:0? to 199?.
• Display:Large backlit LCD.
• Power Supply:8 x 1.5V AA batteries.
• Dimensions:210 x 175 x 90 mm.
• Weight:1.1 kg.
• Safety Features:High voltage warnings, automatic identification of AC/DC voltage, buzzer, and automatic shut-off.
