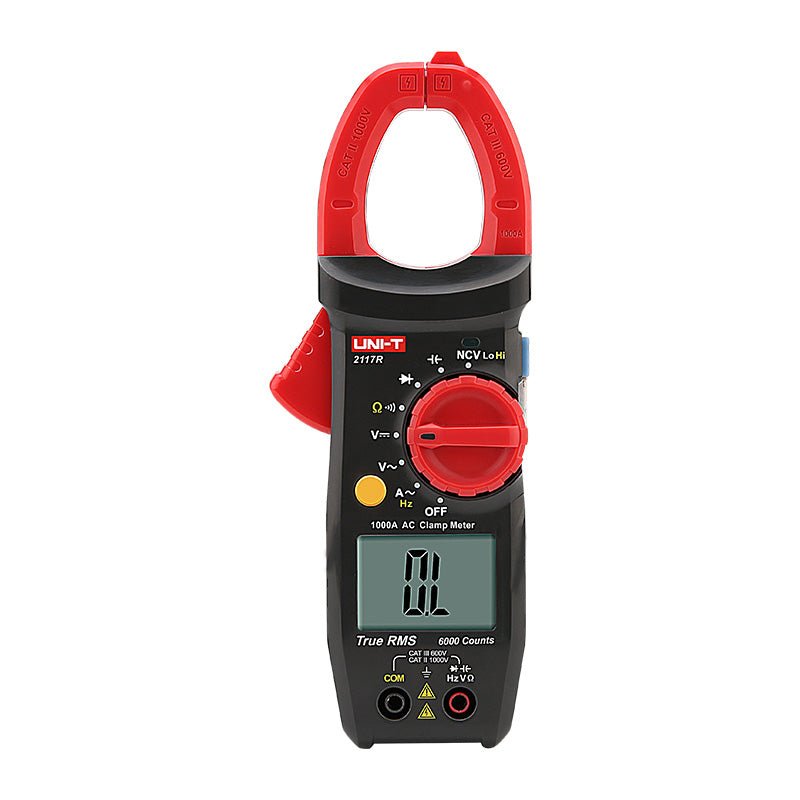

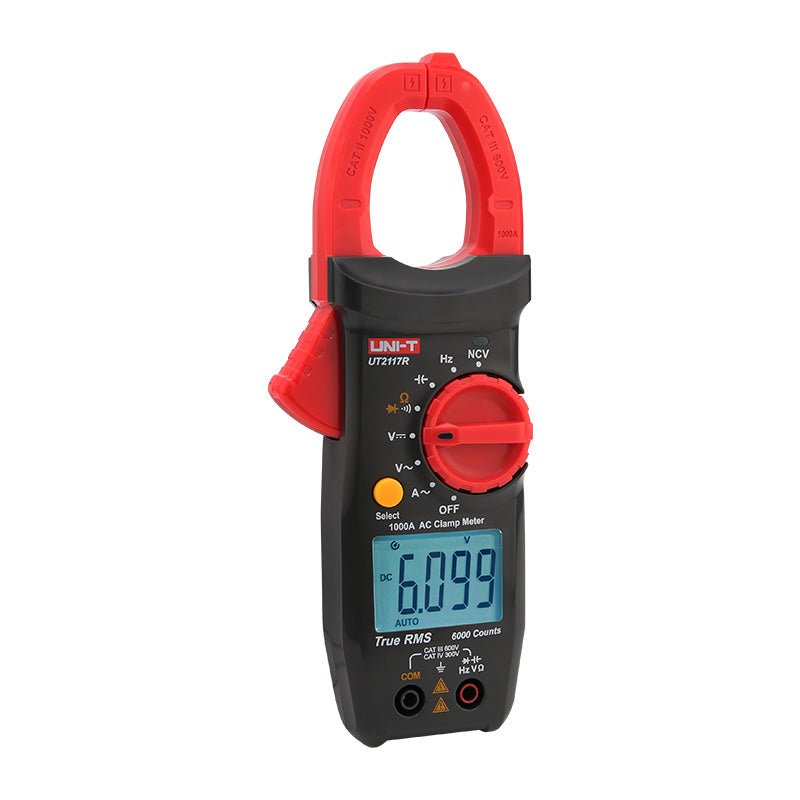

UNI-T TRUE RMS 1000A AC CLAMP METER | 2117R

The UNI-T 2117R True RMS 1000A AC Clamp Meter is designed for professional electrical measurements. It supports AC current measurement up to 1000A, AC/DC voltage up to 1000V, resistance up to 60M?, and capacitance up to 6mF. With features like True RMS, non-contact voltage (NCV) detection, auto-ranging, data hold, and a backlit LCD, the 2117R ensures reliable and accurate readings in various environments. Its safety rating is CAT II 1000V/CAT III 600V, making it suitable for high-voltage applications.
Specifications & Features:
The UNI-T 2117R True RMS 1000A AC Clamp Meter is designed for professional electrical measurements. It supports AC current measurement up to 1000A, AC/DC voltage up to 1000V, resistance up to 60M?, and capacitance up to 6mF. With features like True RMS, non-contact voltage (NCV) detection, auto-ranging, data hold, and a backlit LCD, the 2117R ensures reliable and accurate readings in various environments. Its safety rating is CAT II 1000V/CAT III 600V, making it suitable for high-voltage applications.

SPECIFICATIONS & FEATURES:
————————–

• AC Current:Up to 1000A ±(1.5%+4)
• DC Voltage:Up to 1000V ±(0.7%+3)
• AC Voltage:Up to 1000V ±(1.0%+2)
• Resistance:Up to 60M? ±(0.8%+2)
• Capacitance:Up to 6mF ±(4%+5)
• Frequency:20Hz~10kHz ±(1.0%+5)
• Display Count:6000
• Jaw Opening:33mm
• True RMS:Yes
• Auto Range:Yes
• NCV Detection:Yes
• Diode Test:Yes
• Data Hold:Yes
• LCD Backlight:Yes
• Auto Power Off:Approximately 15 minutes
• Continuity Buzzer:Yes
• Low Battery Indication:?2.5V approximately
• Input Protection:Yes
• Safety Rating:CAT II 1000V/CAT III 600V
• Power:2 x AAA 1.5V batteries
