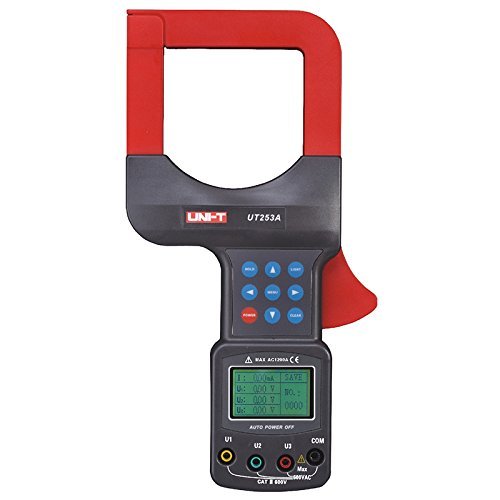

UNI-T 1200A LARGE JAW LEAKAGE CURRENT CLAMP METER | UT253A

The UNI-T UT253A Large Jaw Leakage Current Clamp Meter is a high-precision instrument designed for measuring large currents and leakage currents up to 1200A. Its substantial 80mm x 80mm jaw can accommodate cables up to 96mm, making it suitable for a variety of industrial applications. This meter features an auto range function, a 128×64 dot LCD display with backlight, and data logging capabilities for up to 200 sets. It includes an RS-232 interface for data transfer, ensuring seamless integration with PCs for further analysis. The meter is equipped with features like data hold, over-range display, auto power off, and low battery indication, making it a versatile and reliable tool for electrical professionals.
Specifications & Features:
The UNI-T UT253A Large Jaw Leakage Current Clamp Meter is a high-precision instrument designed for measuring large currents and leakage currents up to 1200A. Its substantial 80mm x 80mm jaw can accommodate cables up to 96mm, making it suitable for a variety of industrial applications. This meter features an auto range function, a 128×64 dot LCD display with backlight, and data logging capabilities for up to 200 sets. It includes an RS-232 interface for data transfer, ensuring seamless integration with PCs for further analysis. The meter is equipped with features like data hold, over-range display, auto power off, and low battery indication, making it a versatile and reliable tool for electrical professionals.

SPECIFICATIONS & FEATURES:
————————–

• Current Measurement Range:0mA to 300A ±(1.5%+3)300A to 1200A ±(2%+3)
• 0mA to 300A ±(1.5%+3)
• 300A to 1200A ±(2%+3)
• Voltage Measurement:0-600V (50-60Hz) ±(1.5%+3)
• Resolution:0.01mA
• Display Mode:128 dots x 64 dots LCD
• Clamp Size:80mm x 80mm
• Data Logging:200 sets
• Test Mode:Clamp CT, integration
• Power Supply:1.5V Battery (LR6) x 4
• Product Dimensions:275mm x 145mm x 40mm
• Product Weight:830g
• Standard Accessories:Batteries, test leads (3 red, 1 black), USB cable, PC software CD
• Additional Features:Auto range, RS-232 interface, LCD backlight, data hold, over-range display, auto power off, low battery indication
