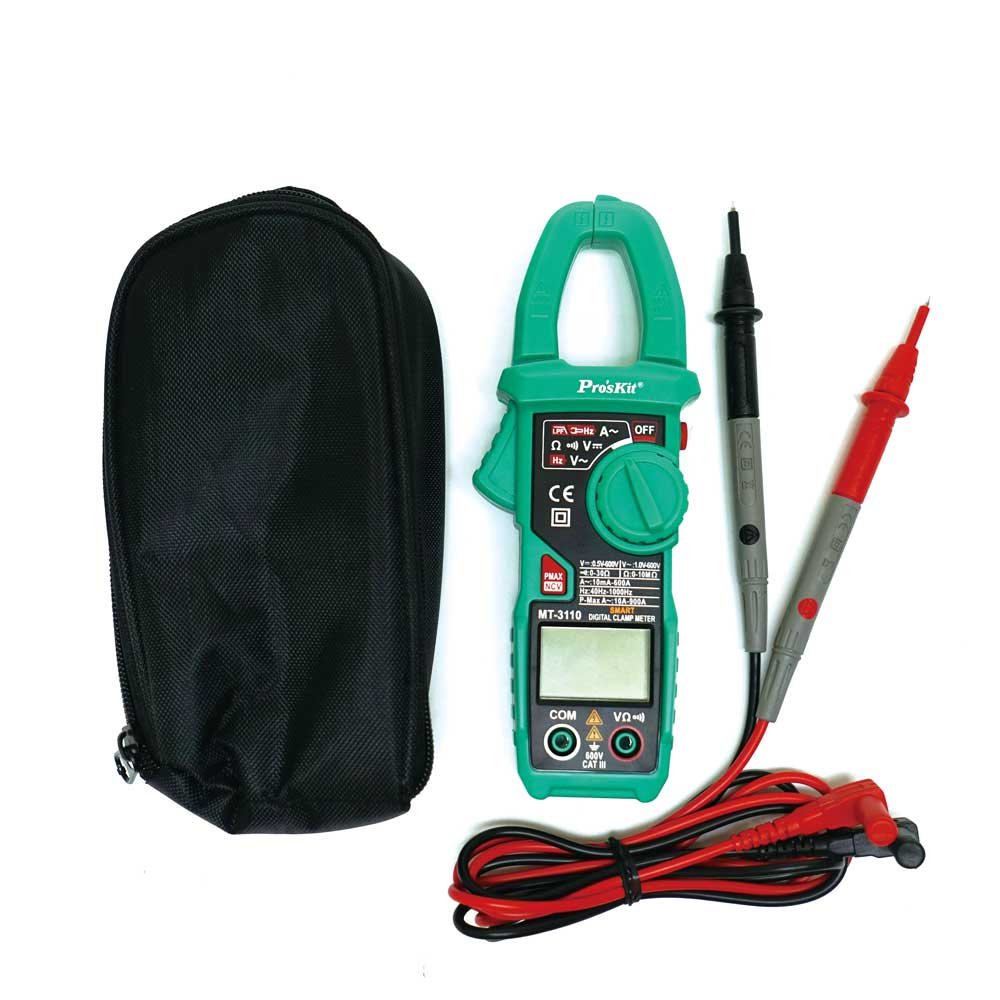

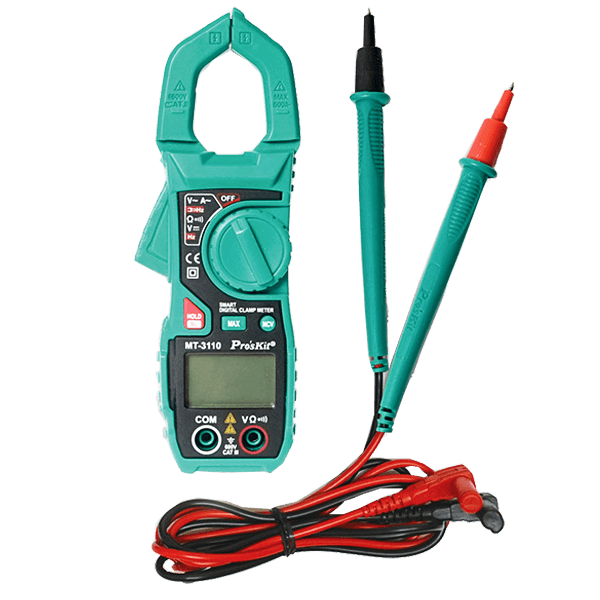

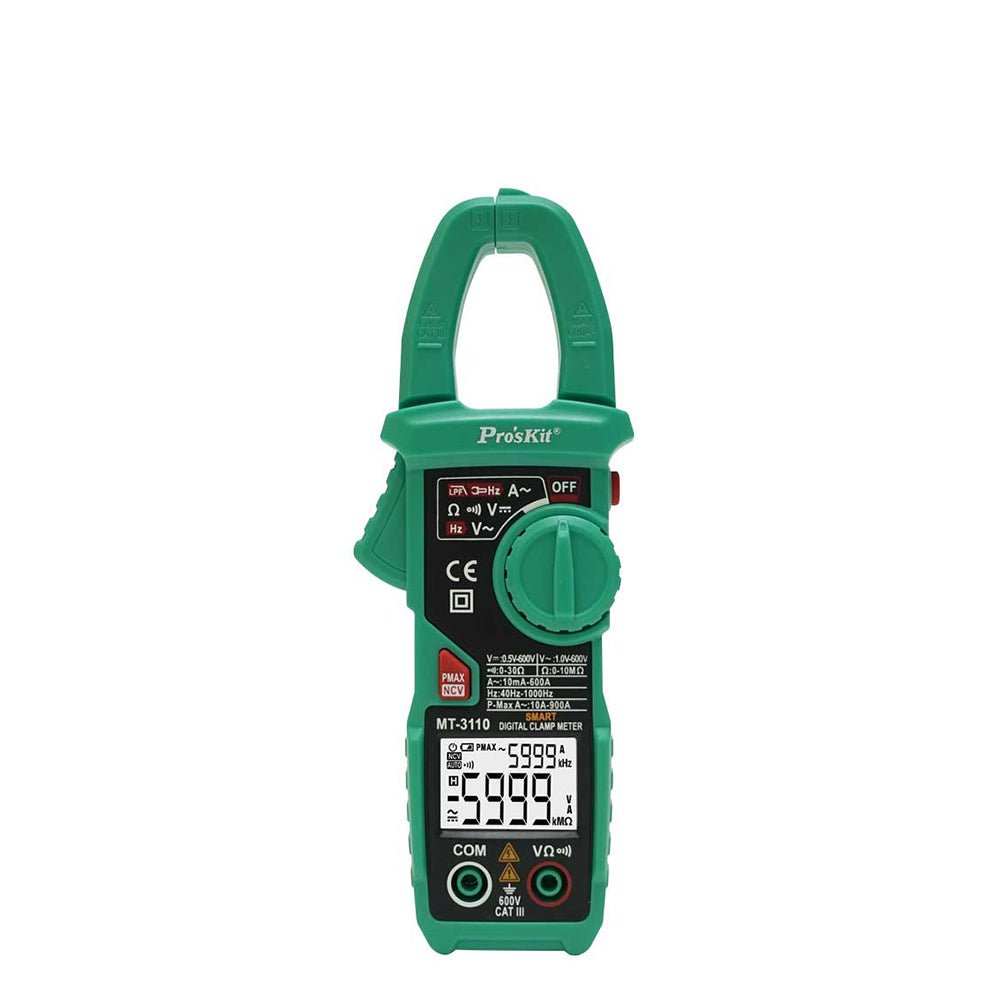

3 5/6 SMART DIGITAL CLAMP METER

Features
3 5/6 Digital Smart Measurement
Simultaneous Measurement
Non contact ACV detector for AC 90-1000V AC peak current measurement
Dual Display with backlight allows operation in dark area. Display the results of simultaneous measurement
Extra functions
Auto power off, Low battery indication, Data hold
Technical Data

FEATURES
——–
3 5/6 Digital Smart Measurement
Simultaneous Measurement
Non contact ACV detector for AC 90-1000V AC peak current measurement
Dual Display with backlight allows operation in dark area. Display the results of simultaneous measurement
Extra functions
Auto power off, Low battery indication, Data hold

TECHNICAL DATA
————–

• One Key to make a measurement.
• Simultaneous measurement, Dual display
• Auto range
• 3 5/6 digits 5999 counts, 0.5% best accuracy
• Auto Selection of ACA,ACV,DCV,Resistance and Frequency
• Auto Range for convenient and accurate measurement
• Model No.: MT-3110
• ACA: 6A /60A/400A±(2.5%+8d)
• 600A±(3.0%+10d)
• PEMAX: 900A ±(10%+10d)
• ACV: 6V /60V/600V ±(0.8%+5d)
• DCV: 6V /60V/600V ±(0.5%+3d)
• Resistance: 6K/60K/600K/6M/10M? ±(0.8%+3d)
• Frequency: 10~1kHz±(1.0%+5d)
• NCV(Non-Contact
• ACV Detect): 90~1000V 50/60Hz
• Extra functions: Data hold, LCD backlight,
• Low Battery, Auto power off
• Certificate: CE , CAT III 600V
• Power Source: 1.5V AAAx2
