AMPROBE LAN CABLE TESTER | LAN-1

The

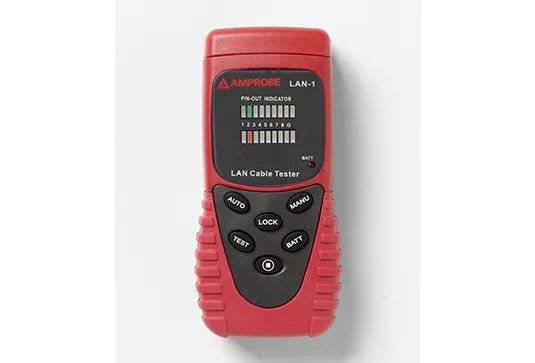

Amprobe LAN-1 LAN Cable Tester
is a reliable and user-friendly tool for testing the integrity of local area network (LAN) cable connections. It is designed to detect
opens, shorts, and miswired
cable installations and works with a variety of
data cables and connectors
. This tester provides a
quick go/no-go LED display
of the wiring status, allowing users to verify cable integrity with ease.
Key Features:
Specifications:
What’s Included:
The
Amprobe LAN-1 LAN Cable Tester
is a reliable and user-friendly tool for testing the integrity of local area network (LAN) cable connections. It is designed to detect
opens, shorts, and miswired
cable installations and works with a variety of
data cables and connectors
. This tester provides a
quick go/no-go LED display
of the wiring status, allowing users to verify cable integrity with ease.
Key Features:
Specifications:
What’s Included:

• 10/100 base-T cables
• 10 base-2 cables
• RJ45 modular cables
• AT&T 258A cables
• EIA/TIA 568A/568B cables
• Token Ring cables
• Cable Wiring Verificationto ensure continuity and detect opens, shorts, or incorrect wiring.

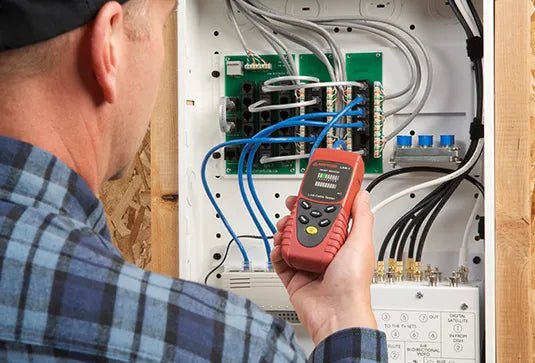

• Testing Installed Cableson wall plates or patch panels using the remote terminator.
• Performing Loopback or Remote Teststo ensure proper connections.
• Audible Alert Systemto signal incorrect cable wiring.
• Dual LED Indicatorsshowing both source and test unit statuses.
• Supports RJ45 and BNC Connectors, making it versatile for different network setups.

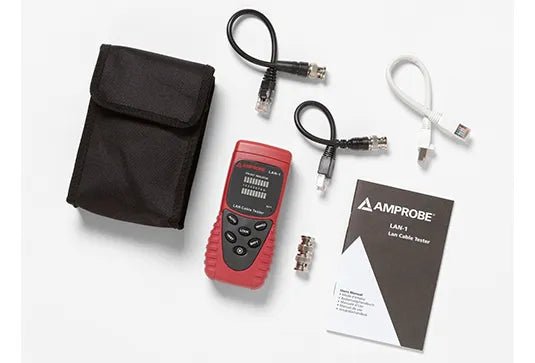

• LAN-1 Cable Tester
• Remote Terminator Unit
• RJ45 to BNC Female Cable
• RJ45 to BNC Male Cable
• RJ45 to RJ45 Cable
• BNC Female to BNC Female Adapter
• Pre-installed 9V Battery

Specification | Details
———————–
Supported Cable Types | 10/100 base-T, 10 base-2, RJ45, AT&T 258A, EIA/TIA 568A/568B, Token Ring
Maximum Cable Length | Over 300 meters
Connector Types | RJ45, BNC
Display | 18 LEDs: 9 red and 9 green, 9 LEDs on remote unit
Battery | 9V Alkaline battery (NEDA 1604A, JIS 006P, IEC 6F22)
Low Battery Indicator | LED will not light up when pressing BATT button if the battery is low
Operating Environment | 0 to 40°C (32 to 104°F), 10 to 70% relative humidity
