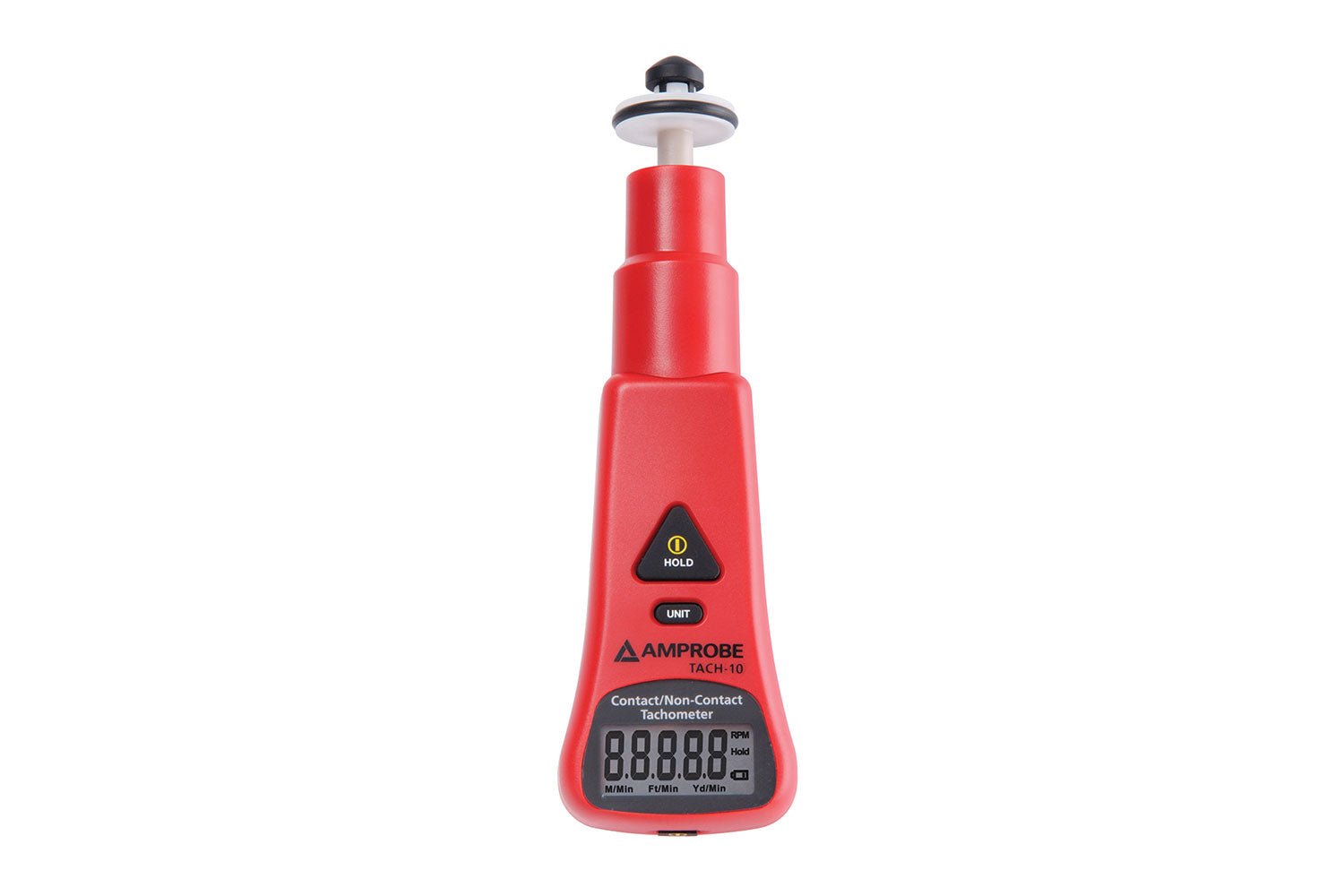

AMPROBE TACH-10 CONTACT AND NON-CONTACT TACHOMETER

The Amprobe TACH-10 is a versatile tachometer designed for measuring rotational and surface speeds in various applications. It supports both contact and non-contact measurement modes, making it suitable for motors, conveyor belts, fans, and other rotating systems. The user-friendly digital display allows for easy reading of RPM and linear speed in different units such as m/min, ft/min, and yd/min.
Features:
Specifications:
The Amprobe TACH-10 is a versatile tachometer designed for measuring rotational and surface speeds in various applications. It supports both contact and non-contact measurement modes, making it suitable for motors, conveyor belts, fans, and other rotating systems. The user-friendly digital display allows for easy reading of RPM and linear speed in different units such as m/min, ft/min, and yd/min.
Features:
Specifications:

• Measures rotational speed (RPM) and surface speed (m/min, ft/min, yd/min).
• Non-contact measurement range: 10 to 99,999 RPM.
• Contact measurement range: 10 to 19,999 RPM.
• Surface speed range (contact): 1 m/min to 9,999.9 m/min.
• Digital LCD display with clear visibility.
• User-selectable measurement units.
• Auto power-off to conserve battery life.

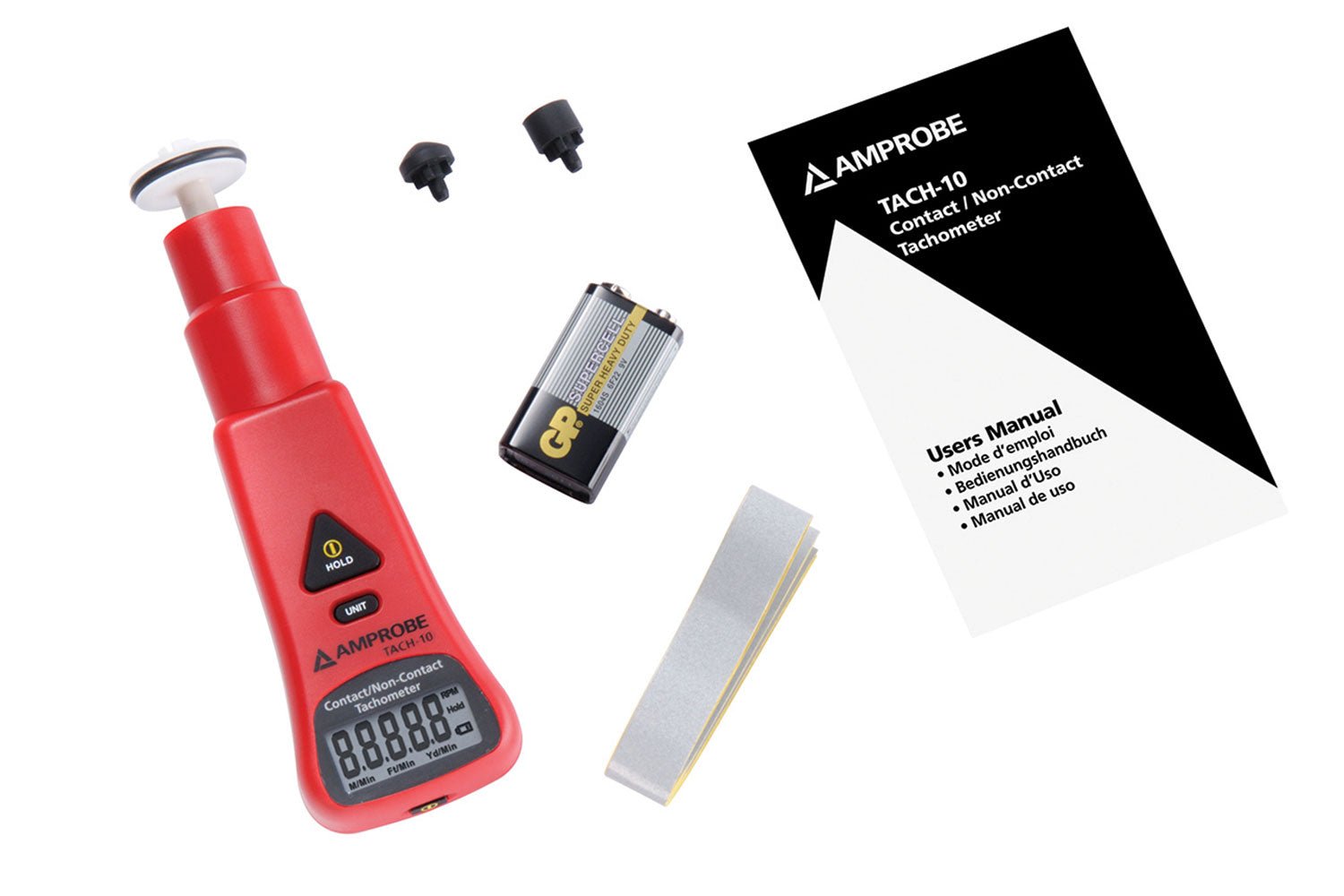

• Includes reflective tape and contact tips for versatile use.

Specification | Details
———————–
Non-Contact Measurement Range | 10 to 99,999 RPM
Contact Measurement Range | 10 to 19,999 RPM
Surface Speed Measurement | 1 m/min to 9,999.9 m/min
Display | LCD (15 × 33 mm)
Measurement Distance (Non-Contact) | 5–30 cm (2–13 inches)
Power Source | 9V battery
Power Consumption | 5 µA (idle), 18 mA (measuring)
Time Base | 4.0 MHz Quartz Crystal
Sampling Time | 1 second (>60 RPM), >1 second (10–60 RPM)
Dimensions | Compact, handheld design
Weight | 250 grams
