AMPROBE CLAMP METER – DUAL DISPLAY 600A TRMS MULTIMETER | ACD-14-PRO-EUR

The

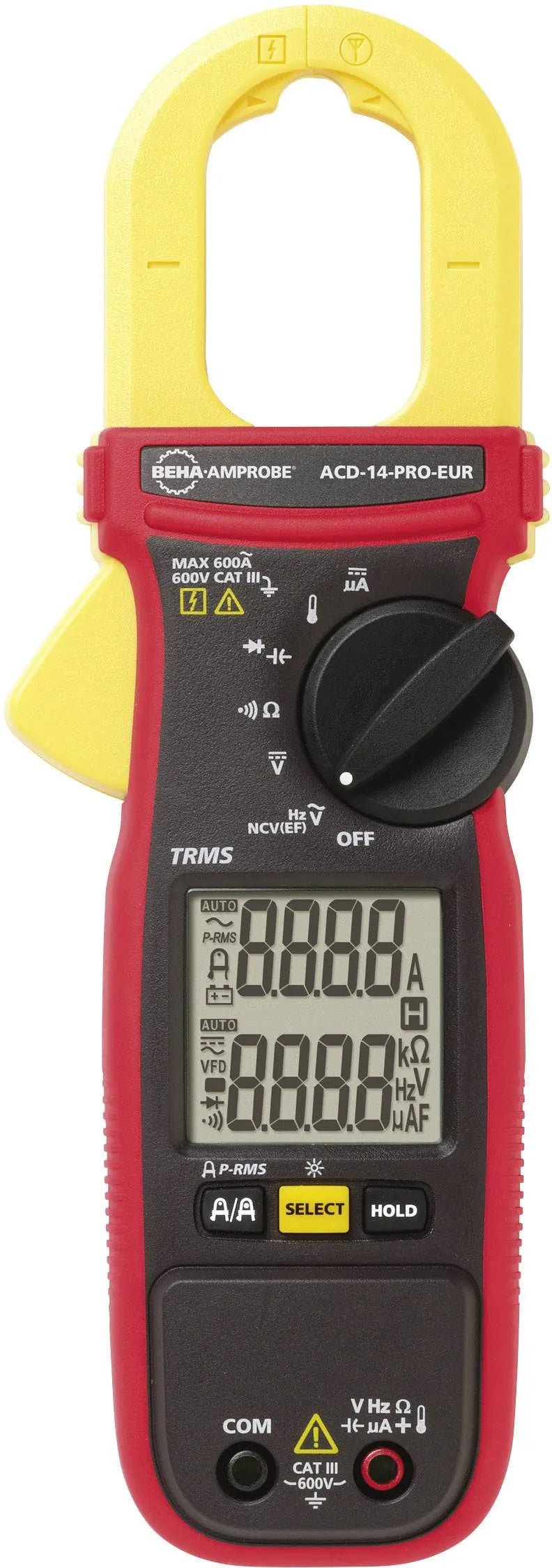

Amprobe ACD-14-PRO-EUR Clamp Meter
is designed to meet the needs of
HVAC and electrical professionals
, offering a
large dual backlit LCD
that allows
simultaneous display of voltage and current measurements
for easy troubleshooting. The
True RMS
feature ensures accurate readings in noisy electrical environments, making it a
reliable tool for both residential and industrial applications
.
With its
Amp-Tip function
, this clamp meter provides
precise low-current measurements down to 0.1A
, making it suitable for both
small and large diameter wires
. The
inrush current measurement
feature is essential for monitoring
motor startups
, while the
low-pass filter (LPF)
ensures
accurate readings on variable frequency drives (VFDs)
.
The
non-contact voltage detection
(VoltTect) enhances safety by allowing
live wire detection without direct contact
, reducing the risk of electrical hazards.
Key Features:
Specifications:
What’s Included:
The
Amprobe ACD-14-PRO-EUR Clamp Meter
is designed to meet the needs of
HVAC and electrical professionals
, offering a
large dual backlit LCD
that allows
simultaneous display of voltage and current measurements
for easy troubleshooting. The
True RMS
feature ensures accurate readings in noisy electrical environments, making it a
reliable tool for both residential and industrial applications
.
With its
Amp-Tip function
, this clamp meter provides
precise low-current measurements down to 0.1A
, making it suitable for both
small and large diameter wires
. The
inrush current measurement
feature is essential for monitoring
motor startups
, while the
low-pass filter (LPF)
ensures
accurate readings on variable frequency drives (VFDs)
.
The
non-contact voltage detection
(VoltTect) enhances safety by allowing
live wire detection without direct contact
, reducing the risk of electrical hazards.

KEY FEATURES:
————-

SPECIFICATIONS:
—————

WHAT’S INCLUDED:
—————-

• True RMS measurementfor accurate readings in complex electrical environments.
• 600A AC current measurementfor industrial and commercial applications.
• 600V AC/DC voltage measurementfor a wide range of electrical tests.
• Low-pass filter (LPF)for precise voltage and current readings onVFDs and other noisy circuits.
• Inrush current measurementfor motor and equipment startup diagnostics.
• Amp-Tip functionfor accurate low-current readings down to0.1A.
• Non-contact voltage detection (VoltTect)for added safety.
• Dual display with backlightforsimultaneous voltage and current readings.
• Capacitance measurement up to 3000 µF, ideal for HVAC applications.
• Resistance measurement up to 40M?for troubleshooting circuits.
• Frequency measurement up to 10 kHzfor motor and electronic system diagnostics.
• Temperature measurement (-40°C to 400°C)with Type-K thermocouple for HVAC testing.
• Amprobe ACD-14-PRO-EUR Clamp Meter
• High-Quality Test Leads
• Type-K Thermocouple Probe
• Carrying Case
• Pre-installed 9V Battery
• User Manual

Specification | Details
———————–
AC Current Measurement | Up to600A
AC/DC Voltage Measurement | Up to600V
Resistance Measurement | Up to40M?
Capacitance Measurement | Up to3000 µF
Frequency Measurement | Up to10 kHz
Temperature Measurement | -40°C to 400°C(-40°F to 752°F) with Type-K thermocouple
Low-Pass Filter (LPF) | Yes, for variable frequency drives (VFDs)
Inrush Current Measurement | Yes, for motor startup analysis
Amp-Tip Function | Yes, for preciselow-current measurement down to 0.1A
Non-Contact Voltage Detection | Yes, VoltTect Technology
Dual Display | Yes, with backlight forsimultaneous voltage and current display
Jaw Opening | 30mm
Safety Rating | CAT III 600V
Auto Power-Off | Yes, for battery conservation
Power Supply | 9V Battery (included)
Dimensions | 229 × 80 × 49 mm
Weight | 380 g
