FLUKE 1503 INSULATION RESISTANCE TESTER

The

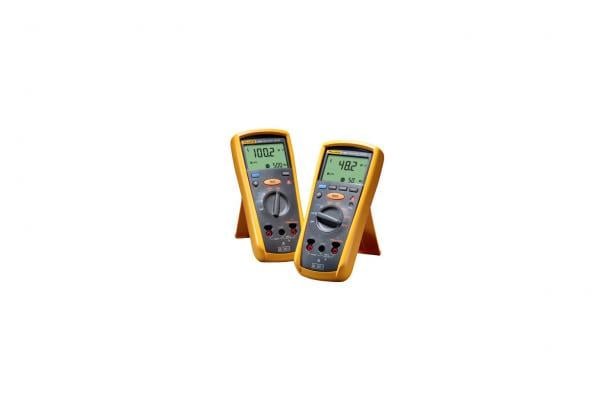

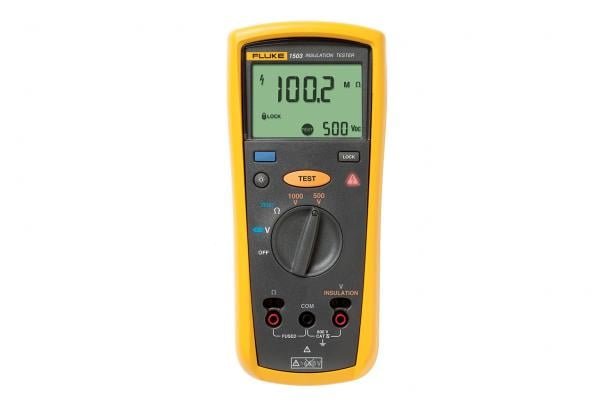

Fluke 1503 Insulation Resistance Tester
is a rugged, high-performance tool designed for professional electricians and technicians. It offers accurate insulation resistance measurements with user-friendly features that enhance safety and efficiency in electrical testing applications.
Key Features:
Technical Specifications:
The
Fluke 1503 Insulation Resistance Tester
is a rugged, high-performance tool designed for professional electricians and technicians. It offers accurate insulation resistance measurements with user-friendly features that enhance safety and efficiency in electrical testing applications.

KEY FEATURES:
————-

TECHNICAL SPECIFICATIONS:
————————-

Key Features

• Insulation Resistance Testing:Ranges from0.01 M? to 2000 M?with test voltages of500V and 1000V.
• Voltage Measurement:MeasuresAC/DC voltagefrom0.1V to 600V.
• Live Circuit Detection:Prevents insulation tests if voltage exceeds30V, ensuring user safety.
• Auto Discharge:Automatically discharges capacitive voltage after testing.
• Low-Ohm Earth Bond Testing:200 mA measurement for reliable ground bond testing.
• Large Backlit Display:Ensures easy readability in low-light conditions.
• Auto Power-Off:Extends battery life by shutting down when inactive.
• Remote Test Probe:Simplifies testing in hard-to-reach locations.

Specifications

Specification | Details
———————–
Insulation Test Voltage | 500V, 1000V
Insulation Resistance Range | 0.01 M? to 2000 M?
AC/DC Voltage Measurement | 0.1V to 600V
Resistance Measurement | 0.01? to 20.00 k?
Power Supply | Four AA alkaline batteries
Dimensions | 20.3 cm x 10.0 cm x 5.0 cm
Weight | 0.55 kg (550 g)1
