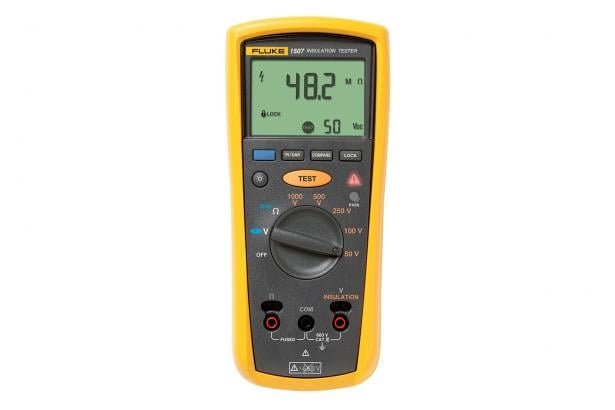

FLUKE 1507 INSULATION RESISTANCE TESTER

The
Fluke 1507 Insulation Resistance Tester
is a rugged, handheld device ideal for professionals in industrial and commercial electrical sectors. Its multiple test voltages and advanced features make it suitable for troubleshooting, commissioning, and preventive maintenance tasks.
Key Features:
Technical Specifications:
The
Fluke 1507 Insulation Resistance Tester
is a rugged, handheld device ideal for professionals in industrial and commercial electrical sectors. Its multiple test voltages and advanced features make it suitable for troubleshooting, commissioning, and preventive maintenance tasks.

KEY FEATURES:
————-

TECHNICAL SPECIFICATIONS:
————————-

Key Features

• Multiple Test Voltages:Offers selectable test voltages of50 V, 100 V, 250 V, 500 V, and 1000 Vto accommodate various testing requirements.
• Insulation Resistance Range:Measures insulation resistance from0.01 M? to 10 G?, ensuring accurate assessments across a wide range.
• Automatic Calculations:Automatically computesPolarization Index (PI)andDielectric Absorption Ratio (DAR), enhancing diagnostic capabilities.
• Live Circuit Detection:Prevents insulation testing if voltage exceeds30 V, ensuring user safety.
• Auto-Discharge Function:Automatically discharges capacitive voltage after testing to protect the user.
• Additional Measurements:Capable of measuringAC/DC voltagefrom0.1 V to 600 Vandresistancefrom0.01 ? to 20.00 k?.
• Continuity Testing:Provides200 mAcontinuity testing for verifying connections and motor windings.
• Remote Test Probe:Includes a remote probe to facilitate testing in hard-to-reach areas, saving time and effort.

Specifications

Specification | Details
———————–
Insulation Test Voltages | 50 V, 100 V, 250 V, 500 V, 1000 V
Insulation Resistance Range | 0.01 M? to 10 G?
AC/DC Voltage Measurement | 0.1 V to 600 V
Resistance Measurement | 0.01 ? to 20.00 k?
Continuity Test Current | 200 mA
Power Supply | Four AA alkaline batteries
Dimensions | 20.3 cm x 10.0 cm x 5.0 cm
Weight | 550 g3
