FLUKE 500 SERIES BATTERY ANALYZERS

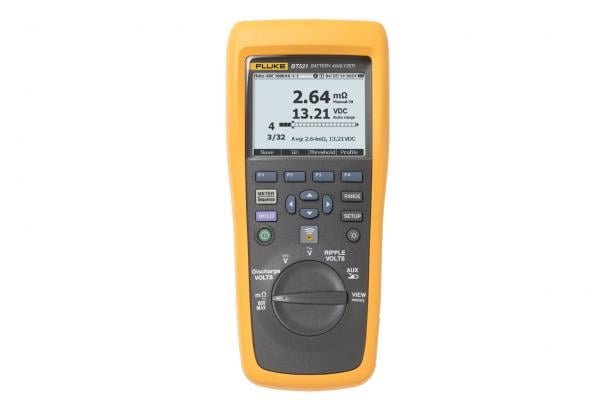

The Fluke 500 Series Battery Analyzers are essential tools for professionals managing critical battery backup systems. Designed for a broad range of battery test functions, they simplify the testing process with an intuitive user interface and compact design. Key measurements include internal battery resistance, DC and AC voltage, DC and AC current, ripple voltage, frequency, and temperature. The sequence measurement mode allows for automatic or manual testing of battery strings, with automatic storage of measurements, eliminating the need to press a button for each save. Comprehensive logging ensures all measured values are captured during testing and can be reviewed on the instrument before downloading for analysis. The BT521 model offers additional features such as a built-in infrared temperature sensor and wireless communication capabilities for data download and remote display via the Fluke Battery Analyzer mobile app.
Key Features:
Specifications:
The Fluke 500 Series Battery Analyzers are essential tools for professionals managing critical battery backup systems. Designed for a broad range of battery test functions, they simplify the testing process with an intuitive user interface and compact design. Key measurements include internal battery resistance, DC and AC voltage, DC and AC current, ripple voltage, frequency, and temperature. The sequence measurement mode allows for automatic or manual testing of battery strings, with automatic storage of measurements, eliminating the need to press a button for each save. Comprehensive logging ensures all measured values are captured during testing and can be reviewed on the instrument before downloading for analysis. The BT521 model offers additional features such as a built-in infrared temperature sensor and wireless communication capabilities for data download and remote display via the Fluke Battery Analyzer mobile app.
Key Features:
Specifications:

Key Features

• Measurement Functions:Internal battery resistance, DC/AC voltage, DC/AC current, ripple voltage, frequency, and temperature.
• Sequence Measurement Mode:Automatic or manual testing of battery strings with automatic measurement storage.
• Comprehensive Logging:Automatic capture and storage of all measured values during testing.

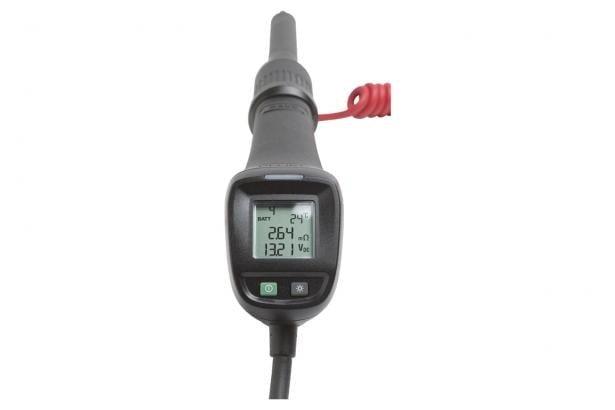

• Wireless Communication:The BT521 supports wireless data download and remote display via the Fluke Battery Analyzer mobile app.

Specifications

Specification | Details
———————–
Size (H x W x D) | 22 x 10.3 x 5.8 cm (9 x 4 x 2 in)
Weight | 850 g (1.9 lb)
Screen Dimensions | 7.7 x 5.6 cm (3 x 2.2 in)
Interface | USB mini
Operating Temperature | 0°C to 40°C
Storage Temperature | -20°C to 50°C
Humidity | ?80% RH (10°C to 30°C); ?75% RH (30°C to 40°C)
Altitude | Operating: Sea level to 2000 meters; Storage: Sea level to 12,000 meters
IP Rating | IP40
Safety Compliance | 600 V CAT III
Battery Compliance | UN38.3, UL2054, IEC62133
