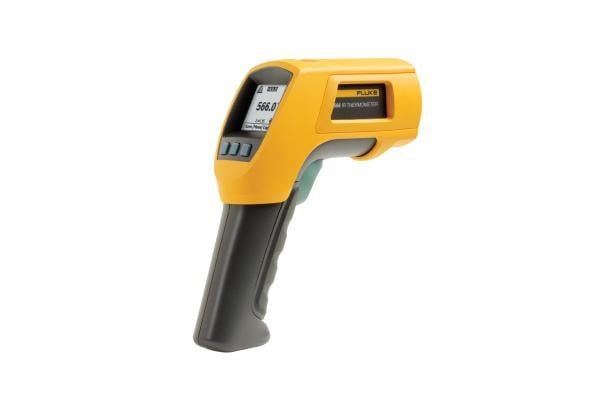

FLUKE 566 INFRARED AND CONTACT THERMOMETER

The
Fluke 566 Infrared and Contact Thermometer
combines the convenience of non-contact infrared temperature measurement with the flexibility of a contact thermometer. Designed for professionals, it features a user-friendly interface and rugged construction, making it ideal for various demanding environments. Key features include:
This thermometer is ideal for professionals in facilities maintenance, industrial settings, electrical work, and mechanical applications, providing reliable temperature measurements in a durable and easy-to-use package.
Specifications:
The
Fluke 566 Infrared and Contact Thermometer
combines the convenience of non-contact infrared temperature measurement with the flexibility of a contact thermometer. Designed for professionals, it features a user-friendly interface and rugged construction, making it ideal for various demanding environments. Key features include:
This thermometer is ideal for professionals in facilities maintenance, industrial settings, electrical work, and mechanical applications, providing reliable temperature measurements in a durable and easy-to-use package.

SPECIFICATIONS:
—————

Key Features

• Dual Functionality:Offers both infrared (IR) and contact temperature measurement capabilities.
• Wide Temperature Range:Measures temperatures from -40°C to 650°C (-40°F to 1202°F).
• High Distance-to-Spot Ratio:30:1 ratio allows for accurate measurements from a distance.
• Adjustable Emissivity:Ensures accurate readings across various surface types.
• Data Logging:Stores up to 20 data points for later analysis.
• User-Friendly Interface:Simple three-button on-screen menu available in six languages.
• Rugged Design:Built to withstand tough industrial, electrical, and mechanical environments.

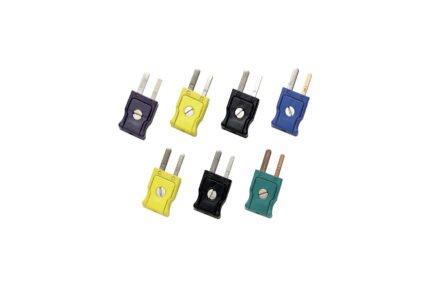

• Compatibility:Works with most K-type thermocouples.

Specifications

Feature | Specification
———————–
Measurement Range (IR) | -40°C to 650°C (-40°F to 1202°F)
Measurement Range (Contact) | -40°C to 650°C (-40°F to 1202°F)
Accuracy (IR) | >0°C (32°F): ±1% or ±1.0°C (±2.0°F), whichever is greater; <0°C (32°F): ±(1.0°C (±2.0°F) + 0.1°/1°C or°F), whichever is greater
Accuracy (Contact) | -40°C to 1372°C (-40°F to 2501°F): ±1% or ±1.0°C (±2.0°F), whichever is greater; -270°C to -40°C (-454°F to -40°F): ±(1°C + 0.2°/1°C)
Distance-to-Spot Ratio | 30:1
Emissivity | Adjustable from 0.10 to 1.00
Response Time | <500 ms
Spectral Response | 8 to 14 microns
Laser Sighting | Single-point laser
Data Storage | Up to 20 data points
Display | Dot matrix 98 x 96 pixels with function menus
Backlight | Two levels, normal and extra bright
Power Supply | 2 AA batteries
Battery Life | Laser and backlight on: 12 hours; Laser and backlight off: 100 hours
Operating Temperature | 0°C to 50°C (32°F to 122°F)
Storage Temperature | -20°C to 60°C (-4°F to 140°F)
Dimensions (L × W × H) | 175 x 85 x 75 mm (6.9 x 3.3 x 2.9 in)
Weight | 0.35 kg (350 g)
