FLUKE 568 EX INTRINSICALLY SAFE INFRARED THERMOMETER

The

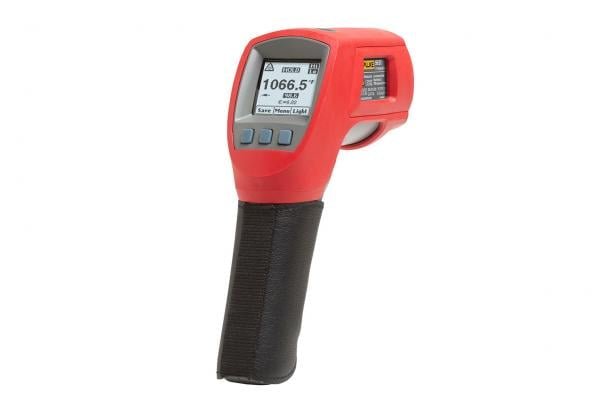

Fluke 568 Ex Intrinsically Safe Infrared Thermometer
is designed for professionals working in hazardous environments such as petroleum, chemical, oil and gas, or pharmaceutical industries. Certified for use in Class I Div 1 and Div 2 or Zone 1 and 2 hazardous areas globally, it combines rugged design with advanced features to ensure accurate and safe temperature measurements. Key features include:
This thermometer is ideal for professionals in hazardous environments, providing reliable temperature measurements in a durable and easy-to-use package.
fluke.com
Product Specifications:
The
Fluke 568 Ex Intrinsically Safe Infrared Thermometer
is designed for professionals working in hazardous environments such as petroleum, chemical, oil and gas, or pharmaceutical industries. Certified for use in Class I Div 1 and Div 2 or Zone 1 and 2 hazardous areas globally, it combines rugged design with advanced features to ensure accurate and safe temperature measurements. Key features include:
This thermometer is ideal for professionals in hazardous environments, providing reliable temperature measurements in a durable and easy-to-use package.
fluke.com

PRODUCT SPECIFICATIONS:
———————–

• Intrinsic Safety Certification:Meets certifications for use in hazardous environments worldwide.
• Wide Temperature Range:Measures temperatures from -40°C to 800°C (-40°F to 1472°F).
• High Distance-to-Spot Ratio:50:1 ratio allows for accurate measurements from a distance.
• Adjustable Emissivity:Ensures accurate readings across various surface types.
• Data Logging:Stores up to 99 data points for later analysis.
• User-Friendly Interface:Simple three-button on-screen menu available in multiple languages.
• Rugged Design:Built to withstand tough industrial environments.

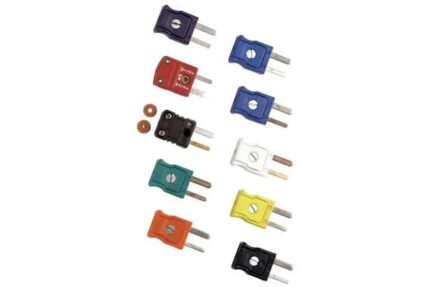

• Compatibility:Works with mini-connector K-type thermocouples for contact measurements.

Feature | Specification
———————–
Measurement Range (IR) | -40°C to 800°C (-40°F to 1472°F)
Measurement Range (Contact) | -40°C to 1372°C (-40°F to 2501°F)
Accuracy (IR) | >0°C (32°F): ±1% or ±1.0°C (±2.0°F), whichever is greater; <0°C (32°F): ±(1.0°C (±2.0°F) + 0.1°/1°C or°F), whichever is greater Accuracy (Contact) | -40°C to 1372°C (-40°F to 2501°F): ±1% or ±1.0°C (±2.0°F), whichever is greater; -270°C to -40°C (-454°F to -40°F): ±(1°C + 0.2°/1°C) Distance-to-Spot Ratio | 50:1 Emissivity | Adjustable from 0.10 to 1.00 Response Time | <500 ms Spectral Response | 8 to 14 microns Laser Sighting | Single-point laser for precise targeting Data Logging Capacity | Stores up to 99 data points for analysis User Interface | Three-button navigation, available in multiple languages Backlit Display | Yes, with two levels for adaptability in various lighting conditions Power Supply | 2 AA batteries Battery Life | Approximately 4 hours with laser and backlight on; up to 100 hours with both off Operating Temperature | 0°C to 50°C (32°F to 122°F) Storage Temperature | -20°C to 60°C (-4°F to 140°F) Relative Humidity | 10% to 90% RH (non-condensing) Dimensions (L × W × H) | 175 × 85 × 75 mm (6.89 × 3.35 × 2.95 in) Weight | 0.44 kg (440 g)
