FLUKE 719PRO 30G ELECTRIC PRESSURE CALIBRATOR

The
Fluke 719Pro 30G Electric Pressure Calibrator
is designed for process professionals who require precise and efficient pressure calibration. Its unique integrated electric pump allows for one-handed pressure generation and adjustment, eliminating the need for manual hand pumps. The calibrator features a full-function loop calibrator that sources, simulates, and measures mA signals, making it suitable for calibrating high-accuracy transmitters, pressure switches, and gauges. The large backlit display shows three parameters simultaneously, including pressure measurement from internal or external sensors, sourced/simulated or measured mA values, and temperature measured by an optional RTD probe. Additional features include a precision pressure adjust vernier for fine control, programmable pump limit settings to prevent over-pressurization, and pump cleanout ports to reduce failures from moisture and fluid damage. The compact and rugged design ensures durability in field applications.
Key Features:
Specifications:
The
Fluke 719Pro 30G Electric Pressure Calibrator
is designed for process professionals who require precise and efficient pressure calibration. Its unique integrated electric pump allows for one-handed pressure generation and adjustment, eliminating the need for manual hand pumps. The calibrator features a full-function loop calibrator that sources, simulates, and measures mA signals, making it suitable for calibrating high-accuracy transmitters, pressure switches, and gauges. The large backlit display shows three parameters simultaneously, including pressure measurement from internal or external sensors, sourced/simulated or measured mA values, and temperature measured by an optional RTD probe. Additional features include a precision pressure adjust vernier for fine control, programmable pump limit settings to prevent over-pressurization, and pump cleanout ports to reduce failures from moisture and fluid damage. The compact and rugged design ensures durability in field applications.
Key Features:
Specifications:

• Integrated electric pump for one-handed pressure calibration.
• Pressure measurement range: -12 to 30 psi (-0.8 to 2 bar).
• Pressure accuracy: ±0.025% of full scale (6 months).
• Sources, simulates, and measures mA signals.
• Precision pressure adjust vernier for fine control.
• Programmable pump limit to prevent over-pressurization.

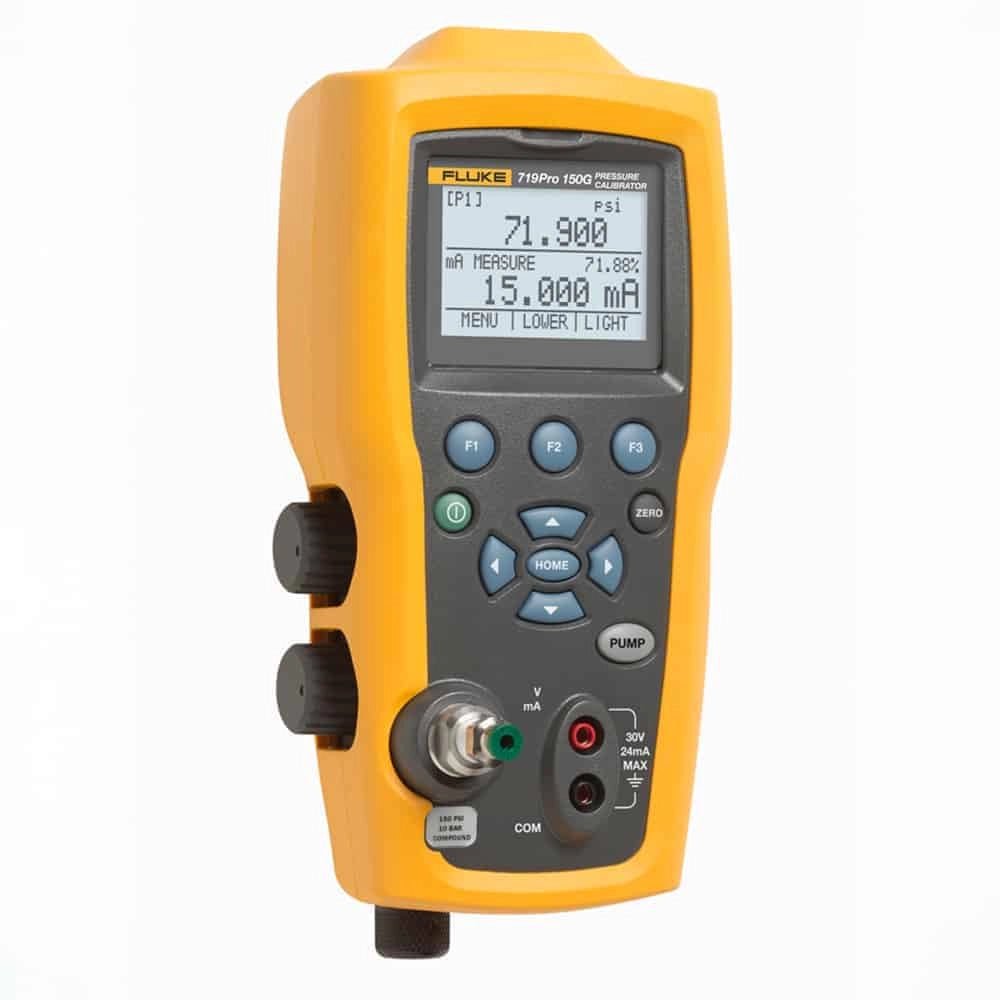

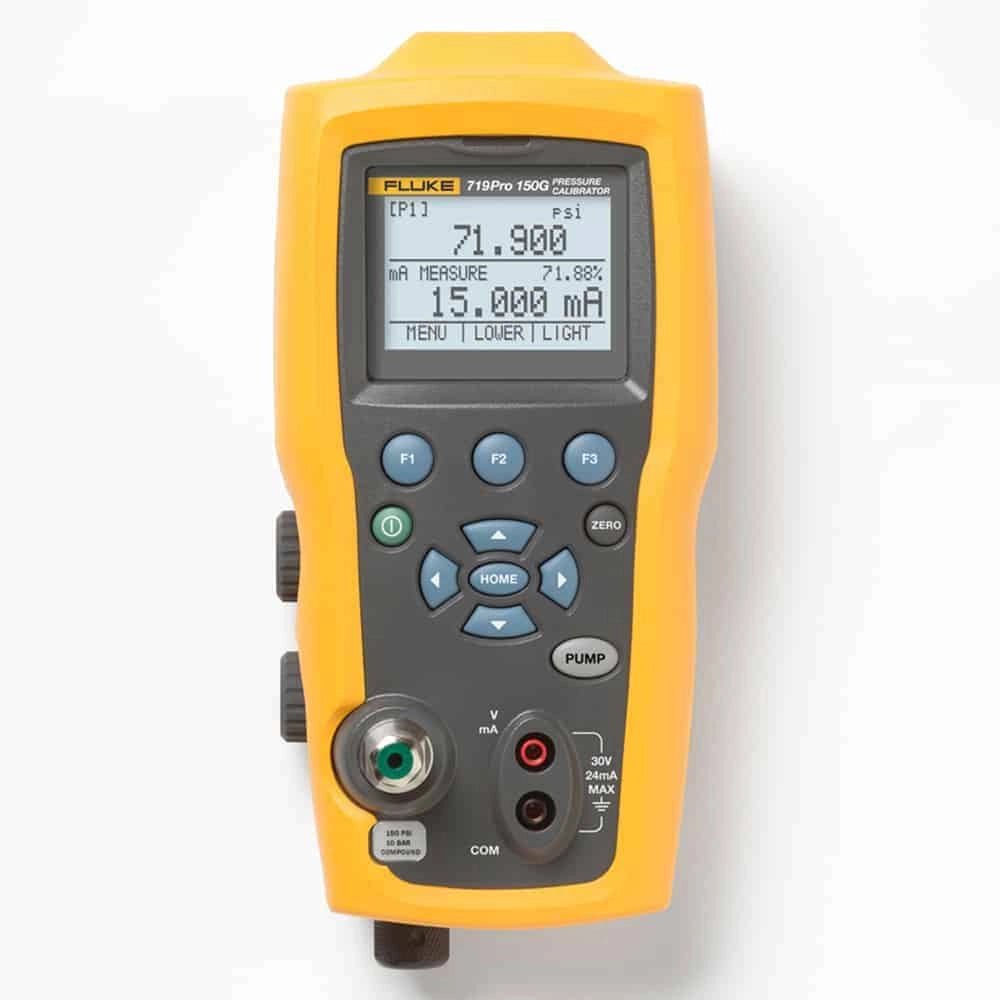

• Large backlit display showing three parameters simultaneously.
• Pump cleanout ports to reduce failures from moisture and fluid damage.
• Selectable engineering units: psi, inH?O, cmH?O, bar, mbar, kPa, inHg, mmHg, kg/cm².
• 24V loop power supply for testing transmitters.
• Compact and lightweight design for easy portability.
• Durable construction for field applications.

Specification | Details
———————–
Pressure Measurement Range | -12 to 30 psi (-0.8 to 2 bar)
Pressure Accuracy | ±0.025% of full scale (6 months)
Current Measurement Range | 0 to 24 mA
Current Accuracy | ±0.015% of reading ± 0.001 mA
Integrated Pump | Built-in electric pressure pump
Programmable Pump Limit | Yes, to prevent over-pressurization
Pressure Adjust | Precision vernier with fine control
Pressure Connection | 1/8 NPT female
Display | Large backlit LCD (shows 3 parameters simultaneously)
Power Supply | Rechargeable battery
Battery Life | Approximately 8 hours continuous use
Dimensions | 241 mm x 112 mm x 70 mm
Weight | 1.3 kg
Operating Temperature | -10°C to 50°C
Humidity | 10% to 95% non-condensing
Included Accessories | Test leads with alligator clips, fluid trap, 1/4 inch NPT to 1/4 inch ISO adapter, accessory hose kit with (2) 1/8 inch quick fit adapters and 1 meter of hose, carrying case, user manual
