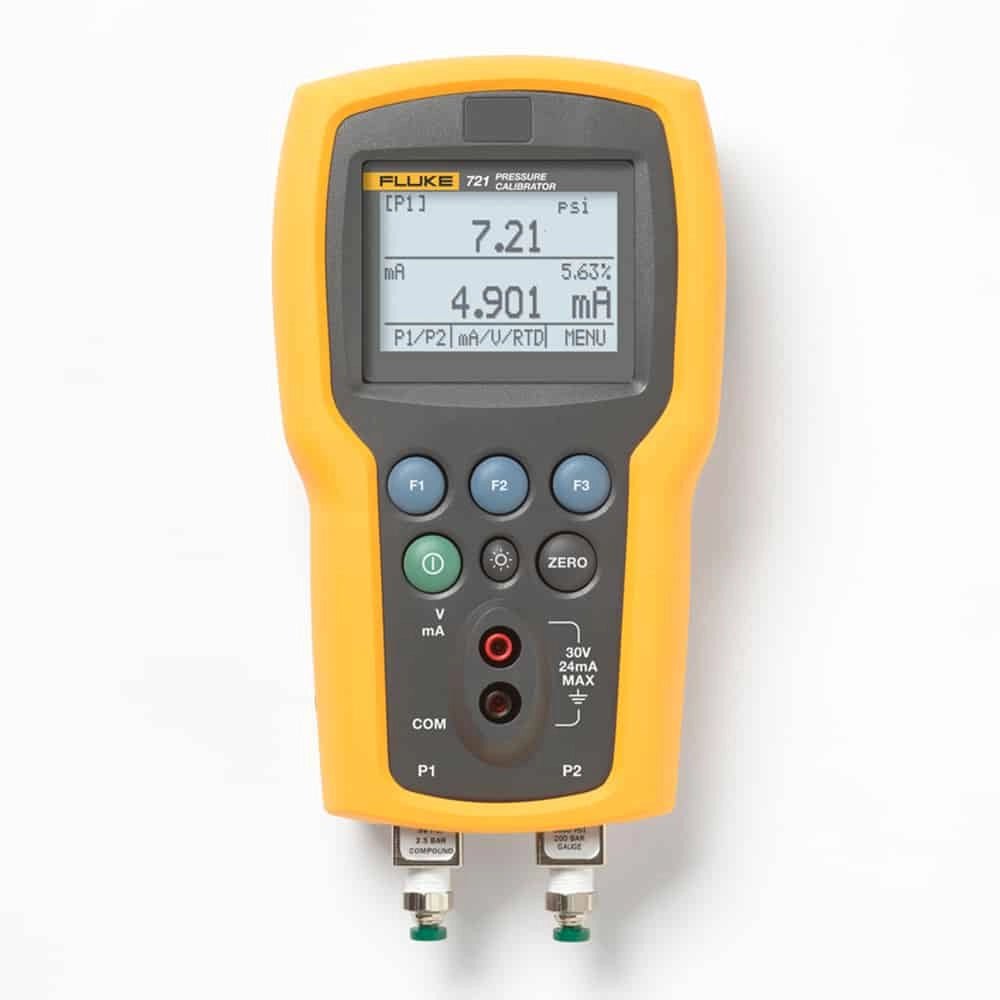

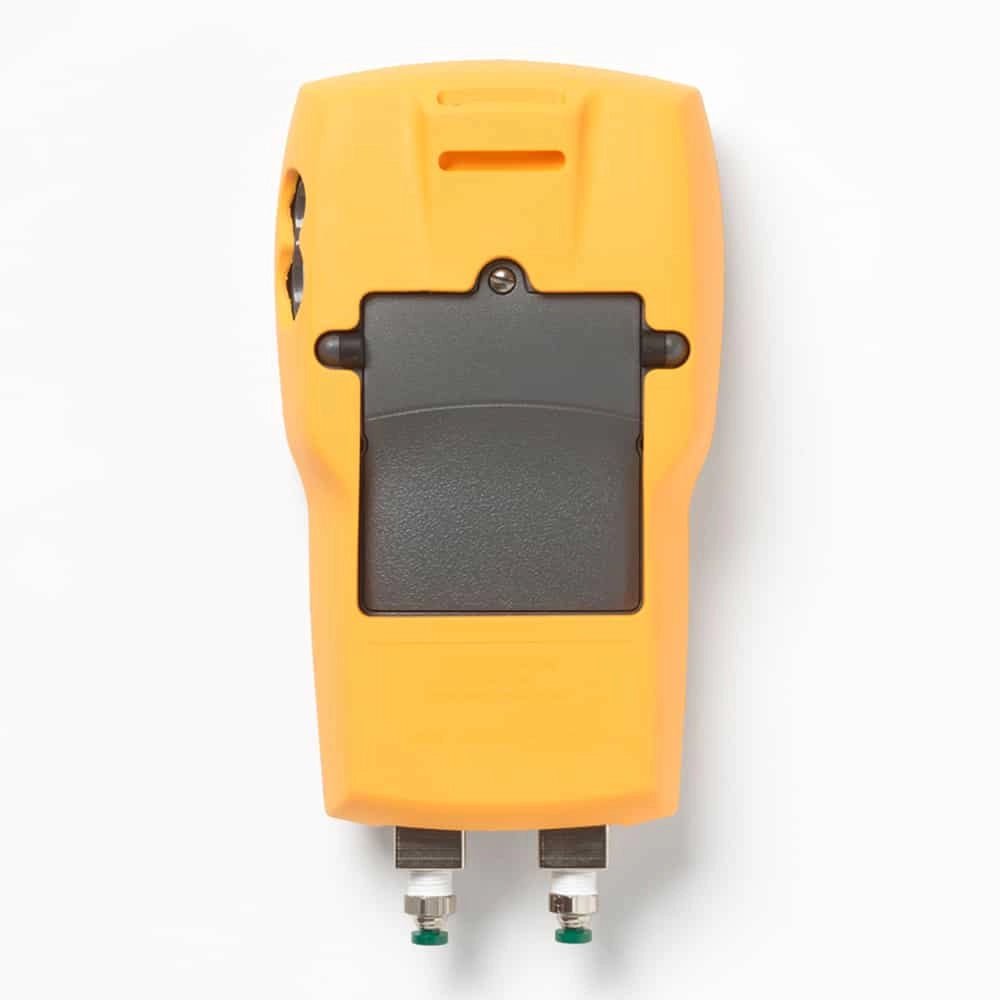

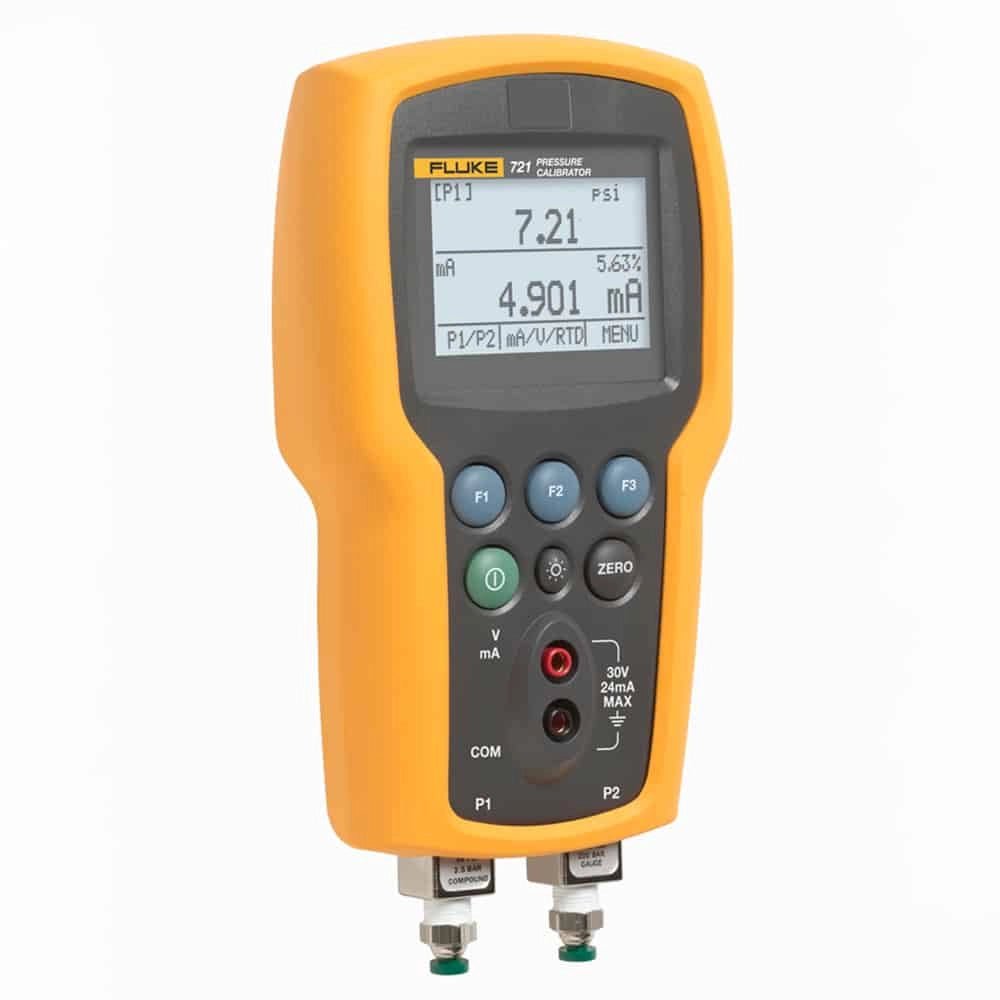

FLUKE 721-1601 DUAL SENSOR PRESSURE CALIBRATOR

The
Fluke 721-1601 Dual Sensor Pressure Calibrator
is designed for professionals involved in gas custody transfer and other critical pressure measurement applications. Equipped with dual isolated stainless steel sensors, it allows simultaneous static and differential pressure measurements, enhancing efficiency and accuracy. The calibrator offers a large backlit graphic display capable of showing up to three inputs simultaneously, including pressure readings from both sensors and mA signal measurements. With an accuracy of 0.025% full scale, it ensures precise calibration tasks. Additional features include the ability to measure 4 to 20 mA signals, a 24V loop power supply to power transmitters under test, and the capacity to measure up to 30V DC. The device supports multiple engineering units, providing versatility in various applications. Its rugged design and user-friendly interface make it a reliable tool for field and laboratory settings.
Key Features:
Specifications:
The
Fluke 721-1601 Dual Sensor Pressure Calibrator
is designed for professionals involved in gas custody transfer and other critical pressure measurement applications. Equipped with dual isolated stainless steel sensors, it allows simultaneous static and differential pressure measurements, enhancing efficiency and accuracy. The calibrator offers a large backlit graphic display capable of showing up to three inputs simultaneously, including pressure readings from both sensors and mA signal measurements. With an accuracy of 0.025% full scale, it ensures precise calibration tasks. Additional features include the ability to measure 4 to 20 mA signals, a 24V loop power supply to power transmitters under test, and the capacity to measure up to 30V DC. The device supports multiple engineering units, providing versatility in various applications. Its rugged design and user-friendly interface make it a reliable tool for field and laboratory settings.
Key Features:
Specifications:

• Dual isolated stainless steel pressure sensors.
• Low-pressure sensor range: -14 to 16 psi (-0.97 to 1.1 bar).
• High-pressure sensor range: -12 to 100 psi (-0.83 to 6.9 bar).
• Accuracy: ±0.025% of full scale.
• Measures 4 to 20 mA signals.
• Provides 24V loop power supply.
• Measures up to 30V DC.
• Large backlit graphic display showing up to three inputs simultaneously.
• Supports multiple engineering units.
• Stores five instrument setups for quick recall.

Specification | Details
———————–
Low-Pressure Sensor Range | -14 to 16 psi (-0.97 to 1.1 bar)
High-Pressure Sensor Range | -12 to 100 psi (-0.83 to 6.9 bar)
Accuracy | ±0.025% of full scale
Resolution | 0.001 psi (low), 0.01 psi (high)
mA Measurement Range | 0 to 24 mA
mA Accuracy | ±0.015% of reading ± 0.002 mA
Voltage Measurement Range | 0 to 30V DC
Display | Backlit graphic LCD
Power Supply | 4 AA batteries
Battery Life | >35 hours (typical usage)
Dimensions | 7.9″ x 4.3″ x 2.3″ (20 cm x 11 cm x 5.8 cm)
Weight | 1 lb 3 oz (0.539 kg)
Operating Temperature | -10°C to 50°C
Ingress Protection | IP-40
