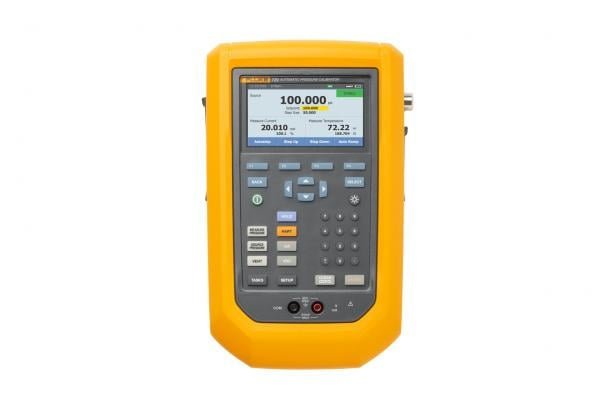

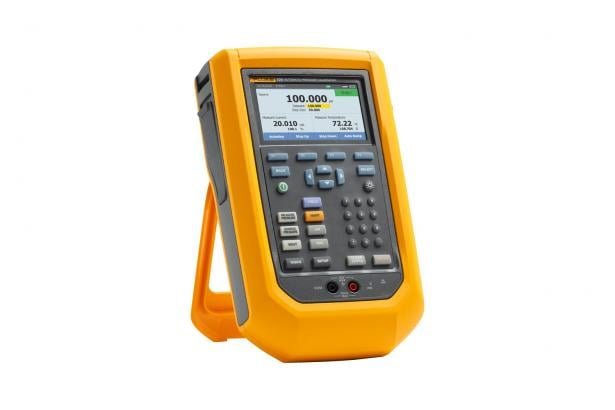

FLUKE 729 AUTOMATIC PRESSURE CALIBRATOR

The Fluke 729 Automatic Pressure Calibrator is engineered to streamline the pressure calibration process, providing technicians with a user-friendly, portable solution. Its internal electric pump allows for automatic pressure generation and regulation, eliminating the need for manual pumping. Technicians can simply input a target pressure, and the calibrator will automatically pump to the desired set-point and stabilize the pressure. This device also features automatic documentation of multiple pressure test points, built-in HART communication capabilities, and the ability to measure, source, and simulate 4 to 20 mA signals. Its rugged design ensures durability in field environments.
Specifications:
Features:
The Fluke 729 Automatic Pressure Calibrator is engineered to streamline the pressure calibration process, providing technicians with a user-friendly, portable solution. Its internal electric pump allows for automatic pressure generation and regulation, eliminating the need for manual pumping. Technicians can simply input a target pressure, and the calibrator will automatically pump to the desired set-point and stabilize the pressure. This device also features automatic documentation of multiple pressure test points, built-in HART communication capabilities, and the ability to measure, source, and simulate 4 to 20 mA signals. Its rugged design ensures durability in field environments.
Specifications:
Features:

• Automatic pressure generation and regulation up to 300 psi
• Automatic internal fine-pressure adjustment
• Measure, source, and simulate 4 to 20 mA signals
• 24V loop power for powering transmitters
• Built-in HART communication capabilities
• Bright dual/triple-channel color graphical display

Specification | Details
———————–
Pressure Range | -12 to 300 psi (-0.8 to 20 bar)
Pressure Accuracy | 0.02% of full scale
Electrical Measurement | Measure, source, and simulate 4 to 20 mA signals; 24V loop power
HART Communication | Built-in for HART transmitter mA adjustments and configurations
Display | Bright dual/triple-channel color graphical display
Connectivity | Fluke Connect® compatibility for remote monitoring and data management
Power | Rechargeable Li-Ion battery
Dimensions | 9.37 x 7.68 x 13.31 inches (238 x 195 x 338 mm)
Weight | 6.5 lbs (2.95 kg)
