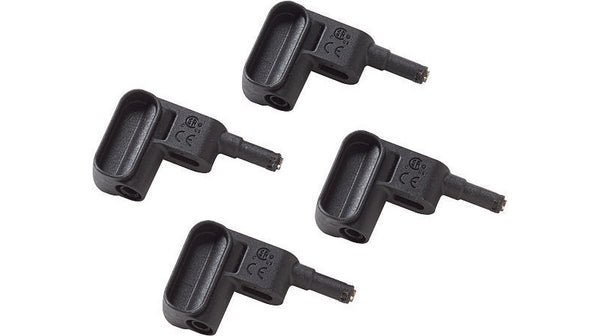

FLUKE MP1 MAGNET PROBE 1 – MAGNETIC PROBE TIPS

The Fluke MP1 Magnet Probe 1 is an accessory designed to enhance the functionality of voltage test leads equipped with 4 mm banana connectors. Featuring magnetic tips, these probes provide reliable contact to ferromagnetic metal surfaces, especially in areas with limited access, such as carbon steel screws on Residual Current Devices (RCDs) or circuit breakers. The probes fit into recessed screw holes with a diameter of ?6 mm.
assets.fluke.com
Key Features:
Specifications:
The Fluke MP1 Magnet Probe 1 is an accessory designed to enhance the functionality of voltage test leads equipped with 4 mm banana connectors. Featuring magnetic tips, these probes provide reliable contact to ferromagnetic metal surfaces, especially in areas with limited access, such as carbon steel screws on Residual Current Devices (RCDs) or circuit breakers. The probes fit into recessed screw holes with a diameter of ?6 mm.
assets.fluke.com
Key Features:
Specifications:

• Magnetic Tip:Ensures secure contact with ferromagnetic surfaces, facilitating measurements in confined spaces.
• Compatibility:Designed for voltage test leads with 4 mm banana connectors.
• Safety Rated:CAT IV 600 V / CAT III 1000 V, with a maximum current rating of 4 A.
• Set of Four:Comes in a pack of four probes, providing versatility and convenience for various testing scenarios.

Specification | Details
———————–
Maximum Current | 4 A
Maximum Voltage | 1000 V
Safety Rating | CAT IV 600 V / CAT III 1000 V
Operating Temperature | -10 °C to +50 °C (14 °F to 122 °F)
Storage Temperature | -20 °C to +60 °C (-4 °F to 140 °F)
Humidity | <10 °C: non-condensing; 10 °C to 30 °C: ?95%; 30 °C to 40 °C: ?75%; 40 °C to 50 °C: ?45% Altitude | Operating: ?2000 m; Storage: ?12000 m Dimensions | Fits recessed screw holes with diameter ?6 mm
