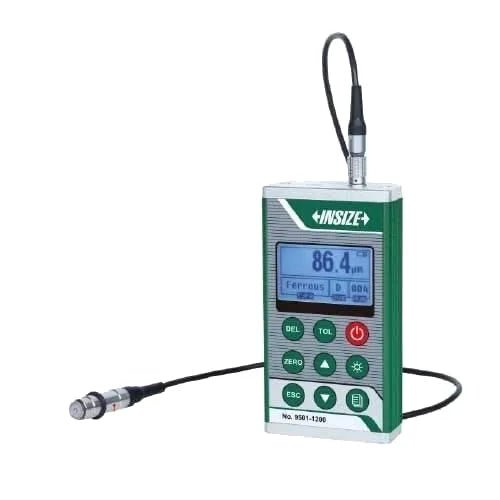

INSIZE COATING THICKNESS GAUGE | 9501-1200

The Insize 9501-1200 Coating Thickness Gauge utilizes magnetic induction to accurately measure non-magnetic coatings such as paint, plastic, and powder on ferrous substrates like iron and steel. Its ergonomic design and user-friendly interface make it suitable for both laboratory and field use.
Key Features:
Specifications:
Applications:
Benefits:
The Insize 9501-1200 Coating Thickness Gauge utilizes magnetic induction to accurately measure non-magnetic coatings such as paint, plastic, and powder on ferrous substrates like iron and steel. Its ergonomic design and user-friendly interface make it suitable for both laboratory and field use.
Key Features:
Specifications:
Applications:
Benefits:

• Measuring Range:0 to 1250 µm (0 to 50 mils), accommodating various coating thicknesses.
• High Accuracy:±(3%L+1) µm, ensuring reliable measurements.
• Resolution:0.1 µm for measurements below 100 µm; 1 µm for measurements above 100 µm.
• Measurement Modes:Continuous and single modes for flexible operation.
• Memory Capacity:Stores up to 500 measurements for data analysis.
• Display:Clear LCD screen for easy reading of measurements.
• Power Supply:Operates on two 1.5V AA batteries with automatic power-off feature to conserve energy.
• Data Output:USB interface for data transfer and analysis.
• Manufacturing:Ensuring consistent coating thickness in production processes.
• Automotive Industry:Measuring paint thickness on vehicles for quality control and inspection.
• Industrial Maintenance:Assessing protective coatings on machinery and structures.
• Laboratories:Conducting material testing and research.
• Precision:High accuracy and resolution provide reliable measurements.
• Versatility:Suitable for various non-magnetic coatings on ferrous substrates.
• User-Friendly:Simple interface and ergonomic design enhance usability.
• Data Management:Memory storage and USB output facilitate data analysis.
• Portability:Compact size and battery operation allow for field use.

Specification | Details
———————–
Model Number | 9501-1200
Measuring Range | 0–1250 µm (0–50 mils)
Accuracy | ±(3%L+1) µm
Resolution | 0.1 µm (<100 µm), 1 µm (?100 µm) Measurement Modes | Continuous, Single Memory Capacity | 500 measurements Display | LCD Power Supply | 2 × 1.5V AA batteries Data Output | USB Dimensions | 128 × 68 × 32 mm Weight | 340 g
