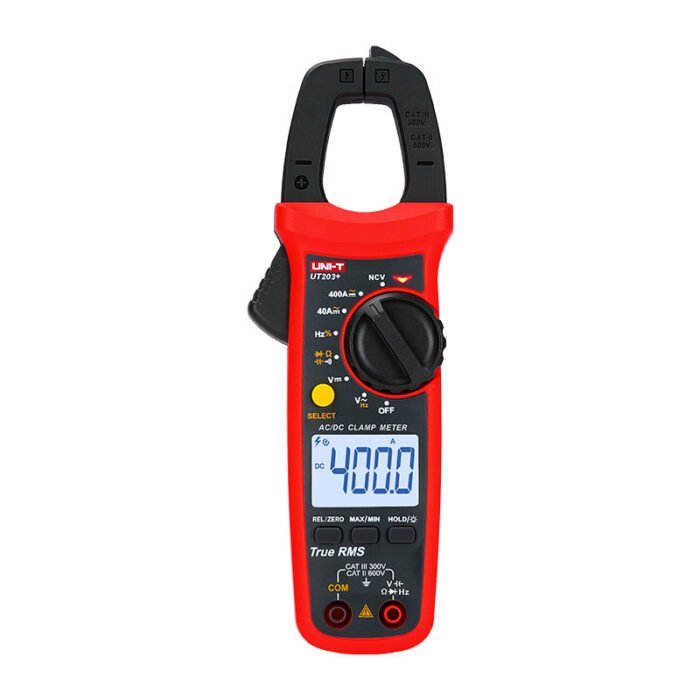

UNI-T 400A DIGITAL CLAMP METER | UT203+

The UNI-T UT203+ Digital Clamp Meter is designed for reliable and precise measurements of AC/DC voltage up to 600V and current up to 400A. This model feature True RMS for accurate readings, non-contact voltage (NCV) detection, and continuity tests. With 4000 count display, auto-ranging, and a jaw opening of 28mm, this meter is equipped to handle various electrical maintenance tasks. Additional functionalities include data hold, backlight, and auto power off for user convenience.
Specifications & Features:
The UNI-T UT203+ Digital Clamp Meter is designed for reliable and precise measurements of AC/DC voltage up to 600V and current up to 400A. This model feature True RMS for accurate readings, non-contact voltage (NCV) detection, and continuity tests. With 4000 count display, auto-ranging, and a jaw opening of 28mm, this meter is equipped to handle various electrical maintenance tasks. Additional functionalities include data hold, backlight, and auto power off for user convenience.

SPECIFICATIONS & FEATURES:
————————–

• AC Current:Up to 400A ±(2.5%+5)
• DC Current:Up to 400A ±(2.5%+5)
• AC Voltage:Up to 600V ±(0.8%+5)
• DC Voltage:Up to 600V ±(0.5%+2)
• Resistance:Up to 40M? ±(0.8%+2)
• Capacitance:Up to 40mF ±(4%+5)
• Frequency:10Hz to 10MHz ±(0.1%+4)
• Display Count:4000
• Auto Range:Yes
• NCV Detection:Yes
• Diode Test:Yes
• Continuity Buzzer:Yes
• Data Hold:Yes
• Backlight/Flashlight:Yes
• Low Battery Indication:Yes
• Auto Power Off:Yes
• Safety Rating:CAT II 600V/CAT III 300V
• Jaw Opening:28mm
• Power:1.5V battery (R03) x 2
• Weight:235g to 248g
