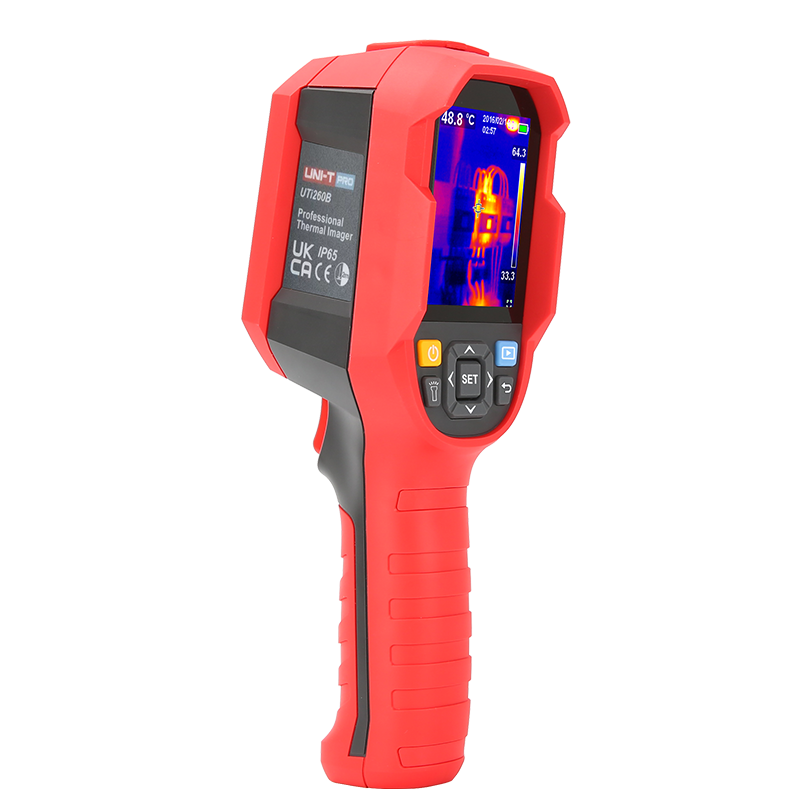

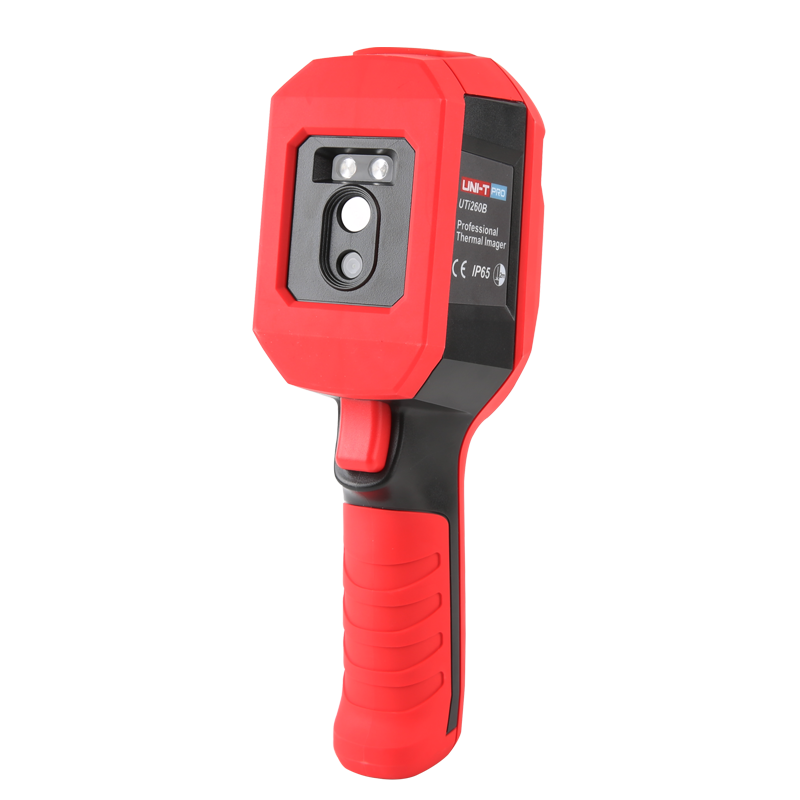

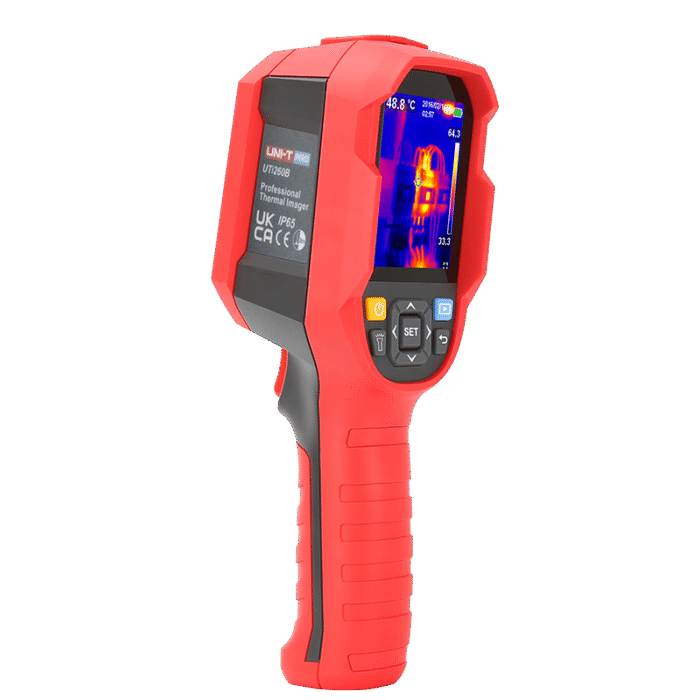

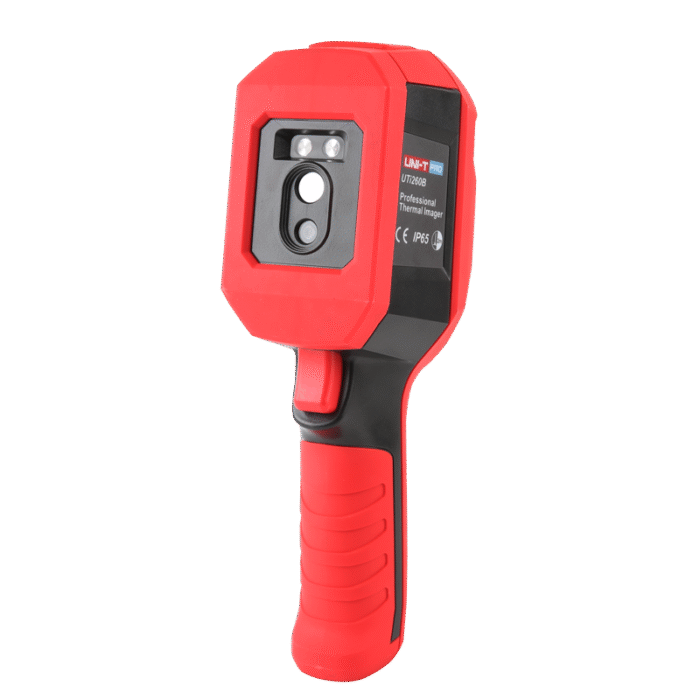

UNI-T HEAVY DUTY THERMAL CAMERA | UTI260B

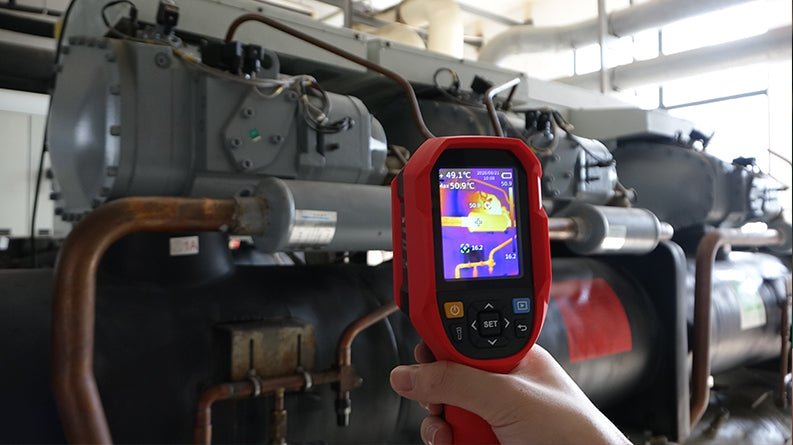

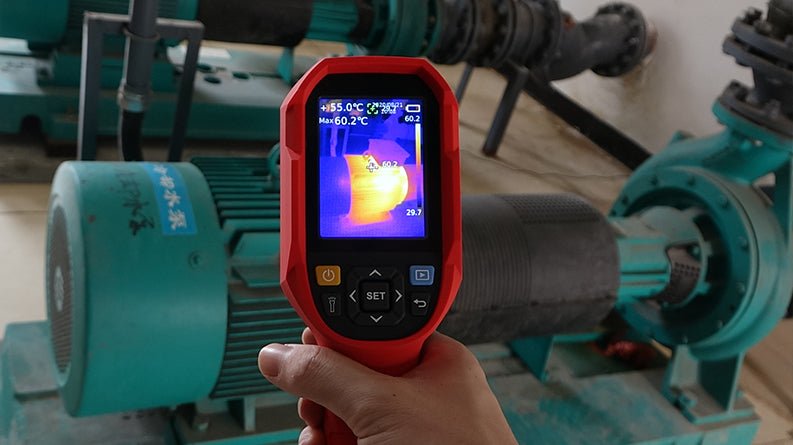

The UNI-T UTi260B Thermal Camera is part of the heavy-duty series, offering reliable and accurate temperature measurements from -20? to 550?. With a high IR resolution of 256×192 pixels and a 2.8” TFT display, it supports various image modes including thermal, visual, fusion, and picture-in-picture. The camera is equipped with features like automatic hot/cold spot tracking, high/low temperature alarms, and on-screen analysis. Built to withstand tough environments, it has an IP65 rating and can survive drops from up to 2 meters. This camera is perfect for applications such as PCBA inspection, motor maintenance, and HVAC diagnostics.
Specifications & Features:
The UNI-T UTi260B Thermal Camera is part of the heavy-duty series, offering reliable and accurate temperature measurements from -20? to 550?. With a high IR resolution of 256×192 pixels and a 2.8” TFT display, it supports various image modes including thermal, visual, fusion, and picture-in-picture. The camera is equipped with features like automatic hot/cold spot tracking, high/low temperature alarms, and on-screen analysis. Built to withstand tough environments, it has an IP65 rating and can survive drops from up to 2 meters. This camera is perfect for applications such as PCBA inspection, motor maintenance, and HVAC diagnostics.

SPECIFICATIONS & FEATURES:
————————–

• IR Resolution:256×192 pixels
• Display:2.8” TFT LCD (320×240 pixels)
• Field of View:56°×42°
• Thermal Sensitivity:?60mK
• Frame Rate:?25Hz
• Temperature Range:-20? to 550?
• Accuracy:±2? or ±2% (whichever is greater)
• Color Palettes:7 (White hot, Black hot, Red hot, Ironbow, Lava, Rainbow, Rainbow HC)
• Image Modes:Thermal, Visual, Fusion, PIP
• Digital Camera Resolution:640×480 pixels
• Battery:Fixed Li-ion (?6 hours operation)
• Connectivity:USB Type-C
• Durability:IP65 rating, 2m drop proof
• Weight:490g
• Dimensions:236mm×75.5mm×86mm
