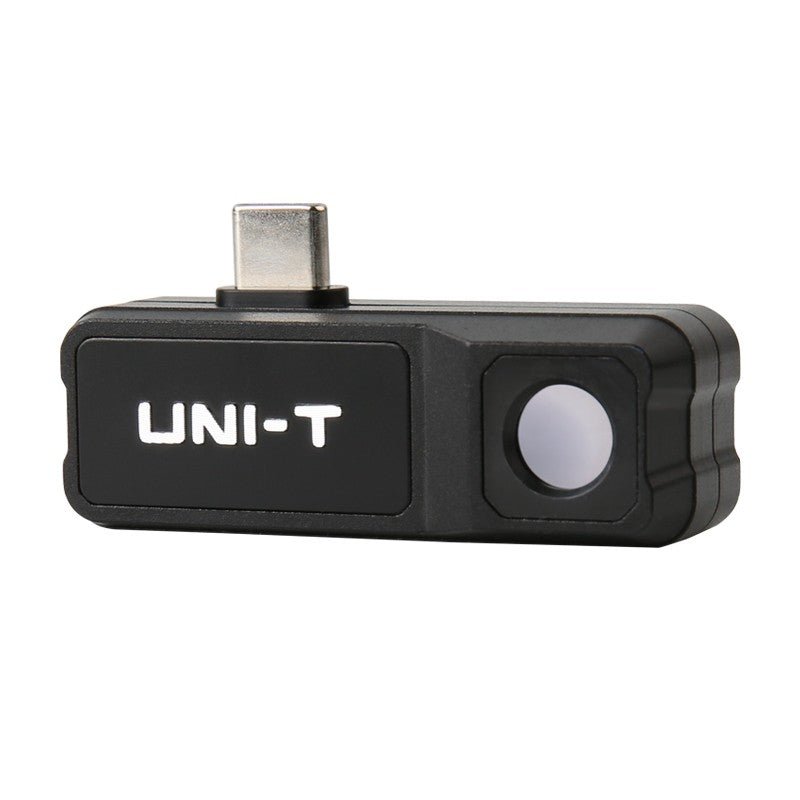

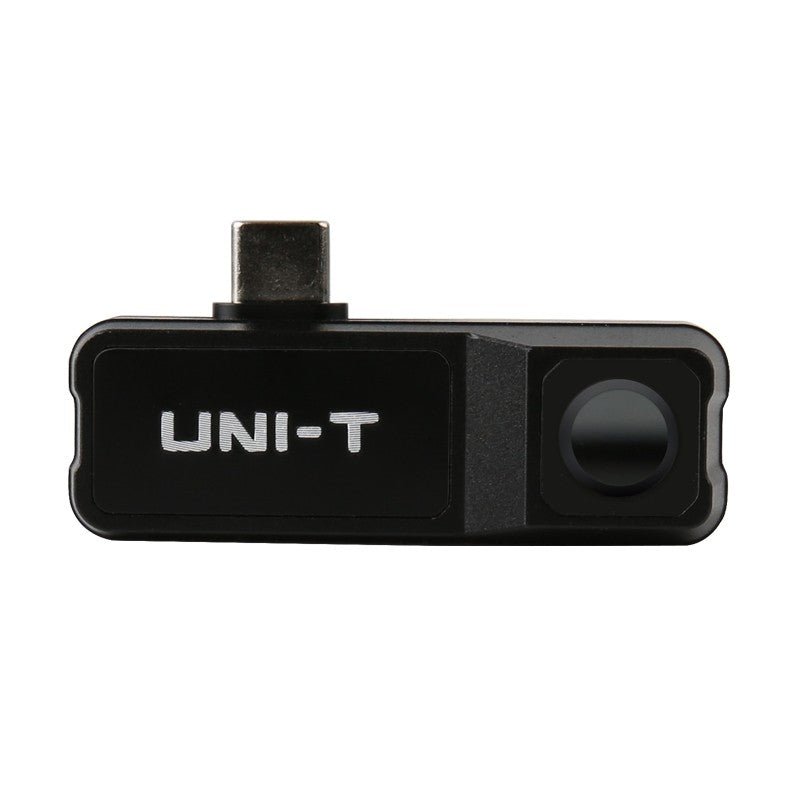

UNI-T MOBILE THERMAL CAMERA FOR ANDROID | UTI120M

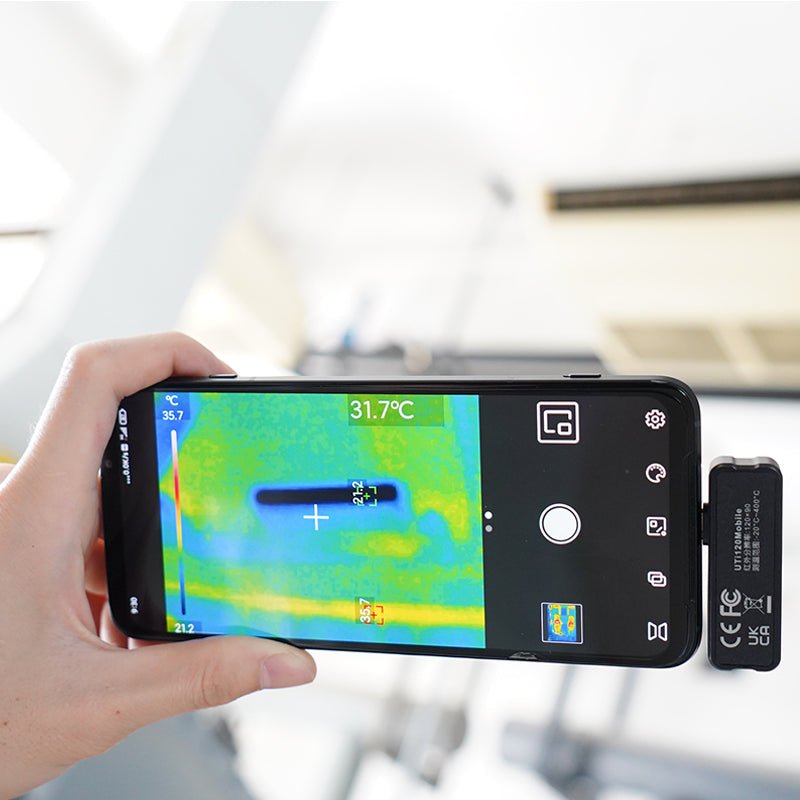

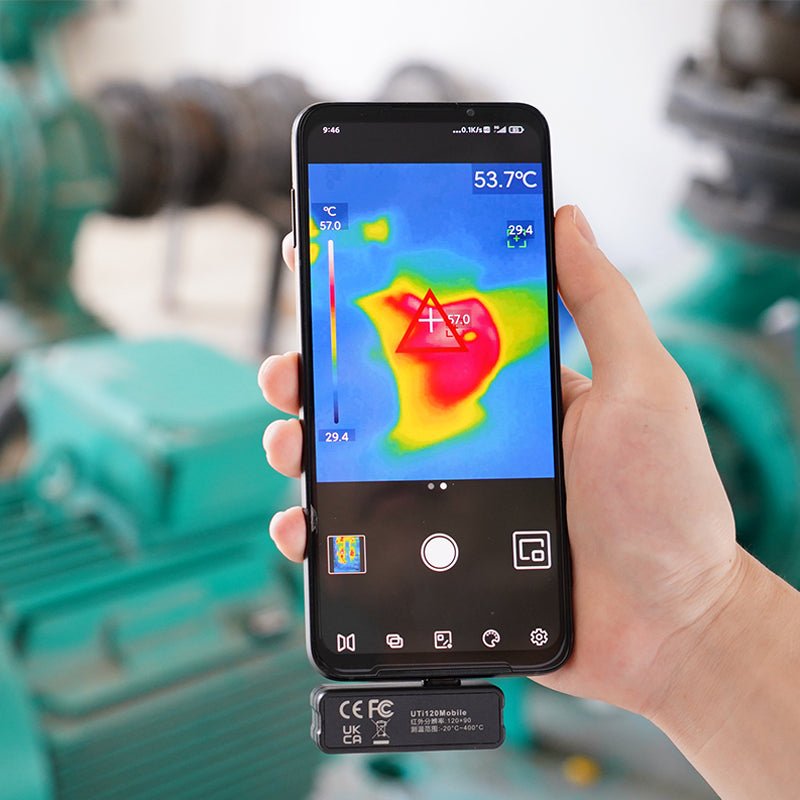

The Uni-T UTi120M Mobile Thermal Camera is designed to easily convert your Android smartphone into a fully functional thermal imaging device. This compact USB-C camera offers a 120×90 pixel resolution, suitable for rapid inspections of buildings, electrical installations, and more. The camera operates within a temperature range of -20 to 400°C and can detect temperature differences as small as 0.1°C. With a wide 50-degree viewing angle, 25 Hz refresh rate, and focus-free operation, the UTi120M ensures quick and efficient thermal assessments. It also includes advanced features like auto alarm, auto tracking, and the ability to capture images and record videos.
Specifications & Features
:
The Uni-T UTi120M Mobile Thermal Camera is designed to easily convert your Android smartphone into a fully functional thermal imaging device. This compact USB-C camera offers a 120×90 pixel resolution, suitable for rapid inspections of buildings, electrical installations, and more. The camera operates within a temperature range of -20 to 400°C and can detect temperature differences as small as 0.1°C. With a wide 50-degree viewing angle, 25 Hz refresh rate, and focus-free operation, the UTi120M ensures quick and efficient thermal assessments. It also includes advanced features like auto alarm, auto tracking, and the ability to capture images and record videos.

SPECIFICATIONS & FEATURES
:
—————————

Key Features

• IR Resolution: 120 x 90 pixels
• Temperature Range: -20°C to 400°C
• Accuracy: ±2°C or ±2% (whichever is greater)
• NETD: <60 mK
• Field of View: 50°

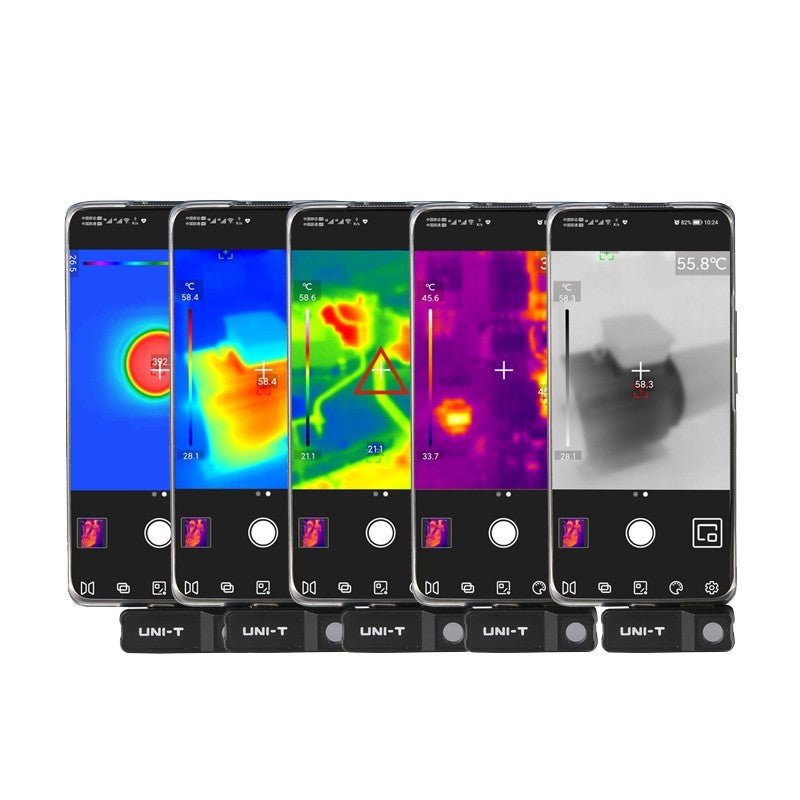

• Image Modes: Thermal, Fusion, PIP
• Refresh Rate: 25 Hz
• Focus: Focus-free
• Additional Functions: Auto alarm, auto tracking, image capture, video recording
• Dimensions: 53 x 18.2 x 18.5 mm
• Weight: 25 g
• Accessories: Micro USB adapter, USB-C male to female extension cable
