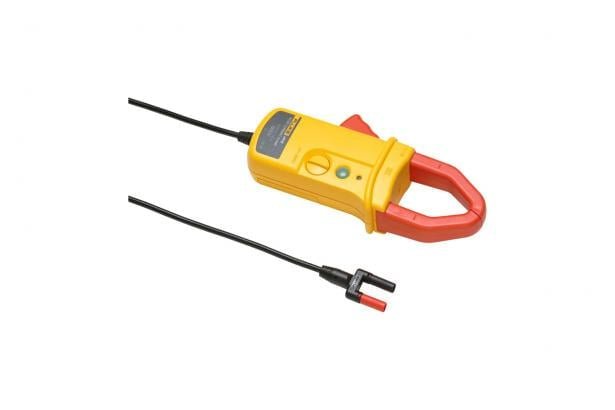

FLUKE I410 AC/DC CURRENT CLAMP

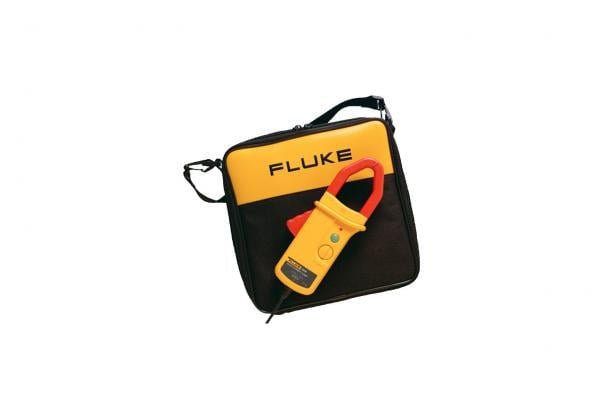

The Fluke i410 AC/DC Current Clamp is engineered to extend the measurement capabilities of digital multimeters, enabling precise current readings without interrupting the circuit. It utilizes a Hall-effect sensor powered by a 9V battery to measure currents ranging from 1A to 400A AC/DC. The clamp provides an output of 1mV per amp, ensuring straightforward interpretation of readings on the connected multimeter. Its design includes a maximum conductor diameter of 32 mm, accommodating a variety of conductor sizes. The i410 is rated for CAT III 600V environments, ensuring safety during use in industrial settings. Additionally, the i410-KIT variant offers a convenient carrying case for the clamp and multimeter, providing extra storage for test leads, probes, and manuals.
Specification :
The Fluke i410 AC/DC Current Clamp is engineered to extend the measurement capabilities of digital multimeters, enabling precise current readings without interrupting the circuit. It utilizes a Hall-effect sensor powered by a 9V battery to measure currents ranging from 1A to 400A AC/DC. The clamp provides an output of 1mV per amp, ensuring straightforward interpretation of readings on the connected multimeter. Its design includes a maximum conductor diameter of 32 mm, accommodating a variety of conductor sizes. The i410 is rated for CAT III 600V environments, ensuring safety during use in industrial settings. Additionally, the i410-KIT variant offers a convenient carrying case for the clamp and multimeter, providing extra storage for test leads, probes, and manuals.
Specification :

Specification | Details
———————–

Measurement Range | 1A to 400A AC/DC
————————————

Output Sensitivity | 1mV per amp
——————————–

Accuracy | ±3.5% ±0.5A (45-400 Hz)
———————————-

Frequency Range | DC to 3 kHz
—————————–

Maximum Conductor Size | 32 mm diameter
—————————————

Safety Rating | CAT III 600V
—————————-

Power Supply | 9V Alkaline battery
———————————-

Battery Life | Approximately 60 hours continuous use
—————————————————-

Dimensions | 209 x 78 x 48 mm
—————————–

Weight | 500 g
————–
