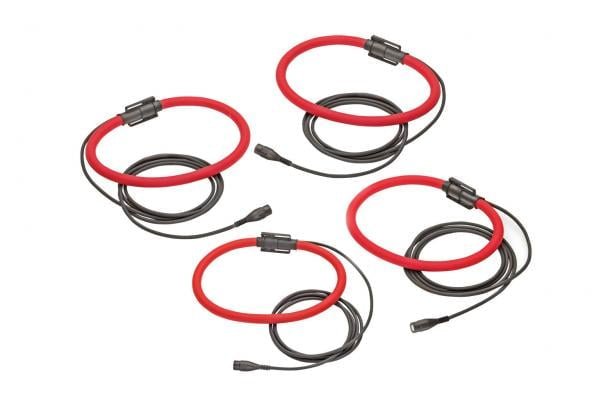

FLUKE I430 FLEX 4 PACK – FLEXIBLE AC CURRENT PROBES

The Fluke i430 Flex 4 Pack comprises four flexible AC current probes designed for high-current measurements, particularly in challenging and confined spaces. Utilizing the Rogowski principle, these probes offer:
Specifications:
The Fluke i430 Flex 4 Pack comprises four flexible AC current probes designed for high-current measurements, particularly in challenging and confined spaces. Utilizing the Rogowski principle, these probes offer:
Specifications:

• High Current Measurement:Each probe measures up to 3000A AC RMS, making them suitable for various industrial applications.
• Compatibility:Ideal for use with three-phase tools such as the Fluke 430 series Power Quality Analyzers.

Specification | Details
———————–
Current Range | Up to 3000A AC RMS
Voltage Output | 85 mV at 1000A RMS, 50 Hz
Accuracy | ±1% of reading at 25°C, 50 Hz
Linearity | ±0.2% of reading (10-100% range)
Noise | 1.0 mV AC RMS (10 Hz – 7 kHz)
Bandwidth (-3 dB) | 10 Hz to 7 kHz
Phase Error (45 – 65 Hz) | ±1°
Working Voltage | 1000V AC RMS or DC (probe head)
Operating Temperature Range | -20 to +90°C
Storage Temperature Range | -40 to +105°C
Humidity | 15% to 85% (non-condensing)
Safety Standards | BS EN 61010-1 2001, BS EN 61010-2-032 2002, BS EN 61010-031 2002, 1000 Vrms, Category III, Pollution Degree 2
